Page 6
3-Port 6Gb/s SAS Backplane 80H10532304A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: [email protected]
6
www
.chenbr
o.com

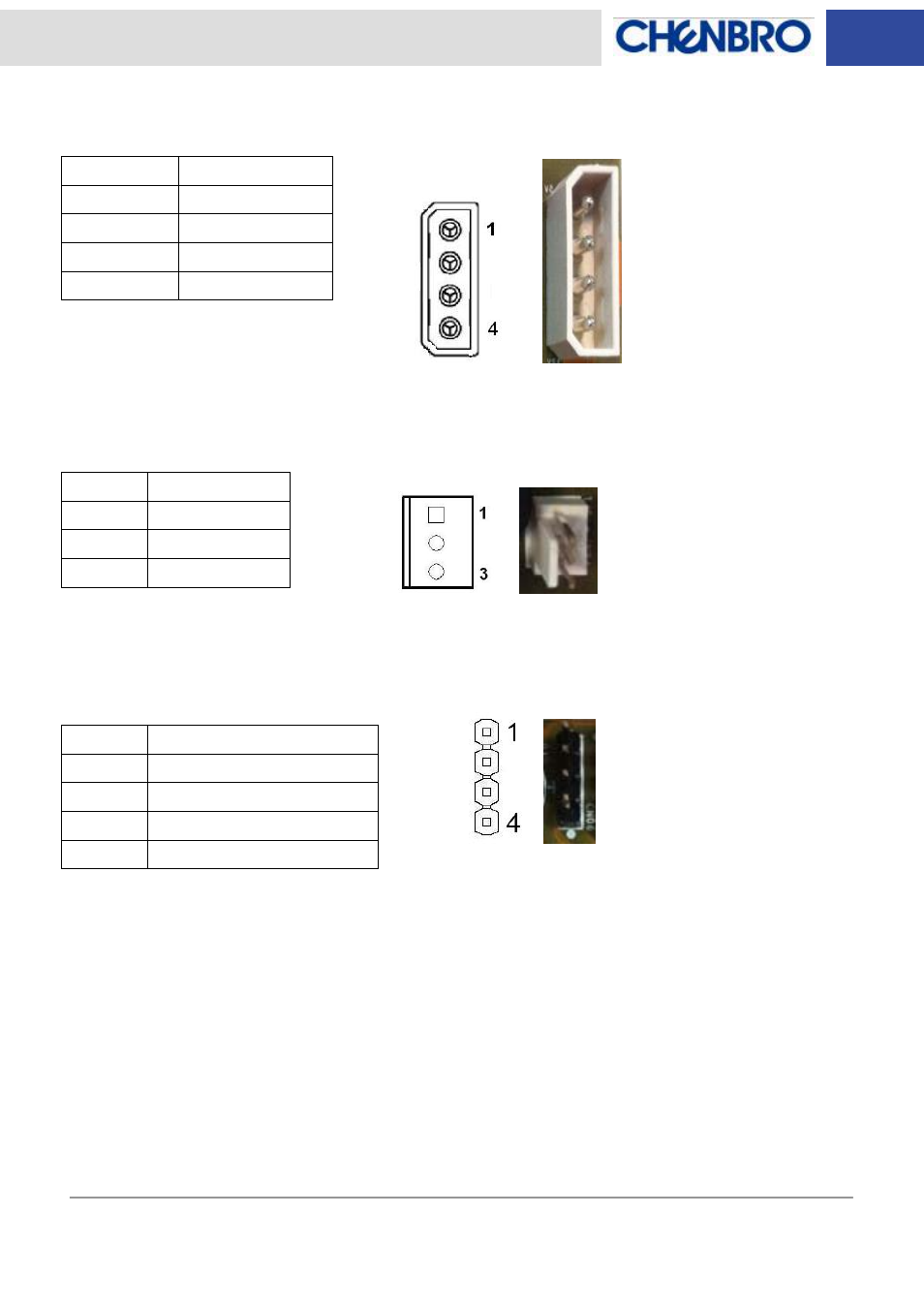

Jumper/Connector Setting/ Descriptions:
Power Connector (CN01~CN02)
Fan Connector (JF1)
HDD FAIL LED Connector (CN06)
Pin NO.
Description
1 12V
2 GND
3 GND
4 5V
Pin NO.
Description
1 GND
2 12V
3
FAN Clock Input
Pin NO.
Description
1
HDD FAIL LED (CN11)
2
HDD FAIL LED (CN21)
3
HDD FAIL LED (CN21)
4 NC
