Chenbro SR112 Series 6Gb/s 4-port SATA/SAS Backplane(80H10211202A0), for 4-Bay 3.5 Hot-swap Kit - Manual User Manual
Page 8
8
4-Port SATA II Backplane 80H10211202A0 ver. A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
www
.chenbr
o.com

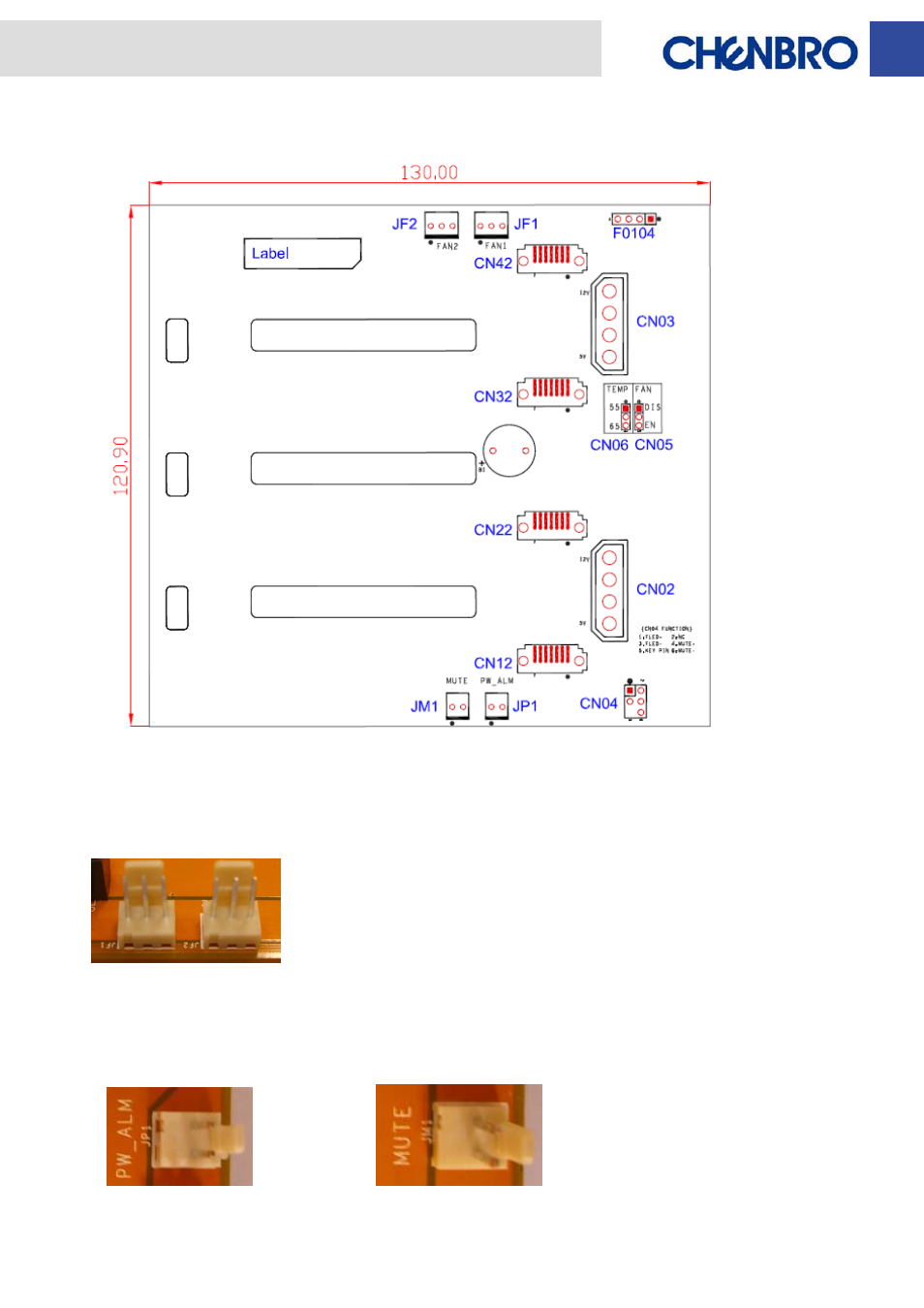

Rear View ( Host Connectors IN )
4.
[CN12 / CN22 / CN32 / CN42]:
connect to 7pin SATA II host
5. [JF1 / JF2]:
3P3C Fan connector
6. [JP1]:
Power failure input ( To Redundant Power Supply )
7. [JM1]:
Power Failure Alarm Mute Output ( To Redundant Power Supply )
Pin1
Pin1
