Backplane layout – Chenbro SR112 Series 6Gb/s 4-port SATA/SAS Backplane(80H10211202A0), for 4-Bay 3.5 Hot-swap Kit - Manual User Manual
Page 7
7
4-Port SATA II Backplane 80H10211202A0 ver. A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
www
.chenbr
o.com

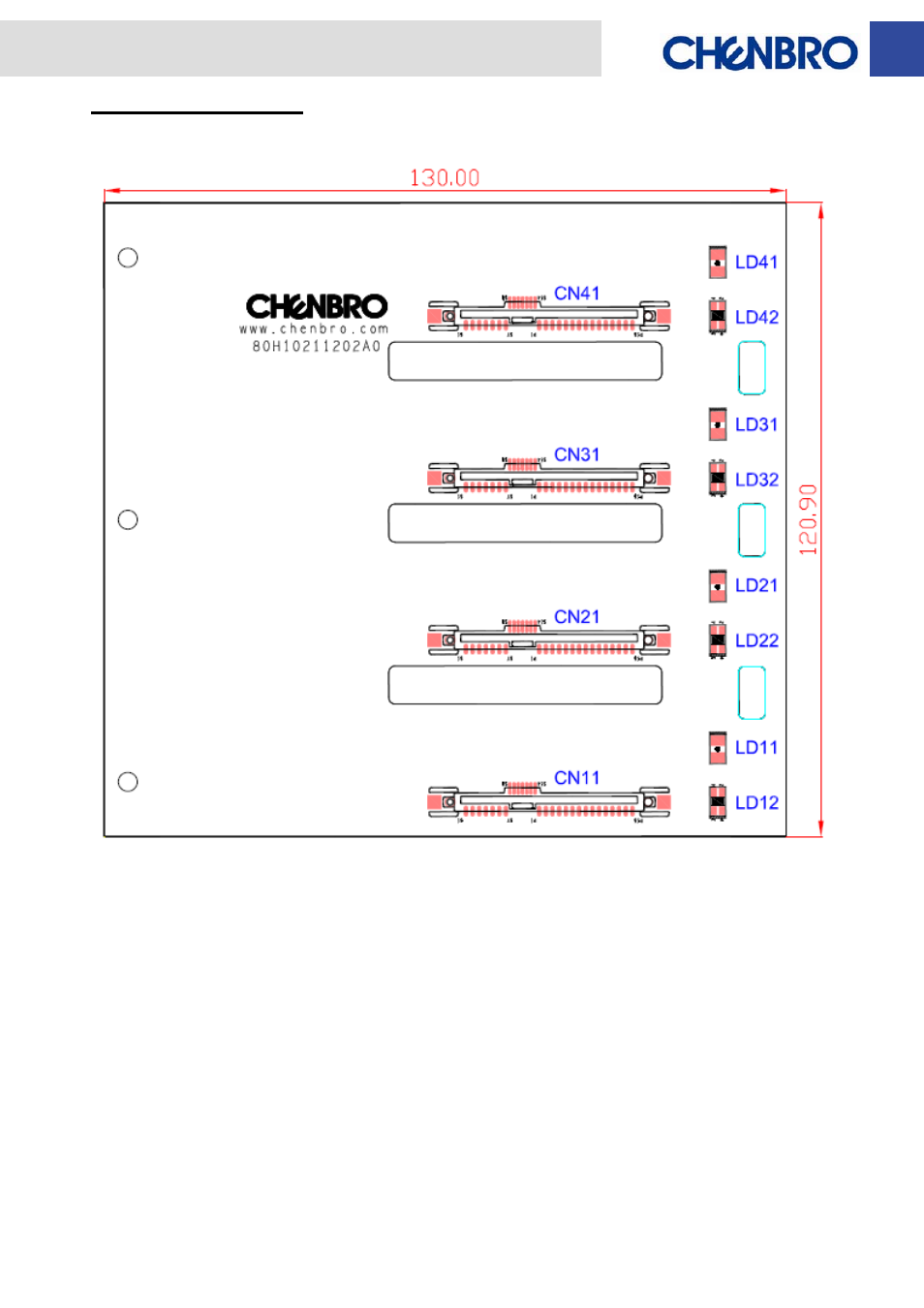

Backplane Layout
Front view ( HDD slot IN )
1. [CN11 / CN21 / CN31 / CN41]:
connect to
29pin SAS or 22pin SATA II HDD
2. [LD11 / LD21 / LD31 / LD41]:
Blue LED indicate HDD Power,
3. [LD12 / LD22 / LD32 / LD 42]:
Green LED indicate HDD activity, Red LED indicate HDD failure.
