Chenbro RM31408 6Gb/s 4-port 3.5 SATA/SAS Backplane(80H10331405A0) - Manual User Manual
Page 9
9
4-Port 6Gb/s SAS/SATA II Backplane 80H10331405A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
w
w
w
.
c
h
e
n
b
r
o
.
c
o
m

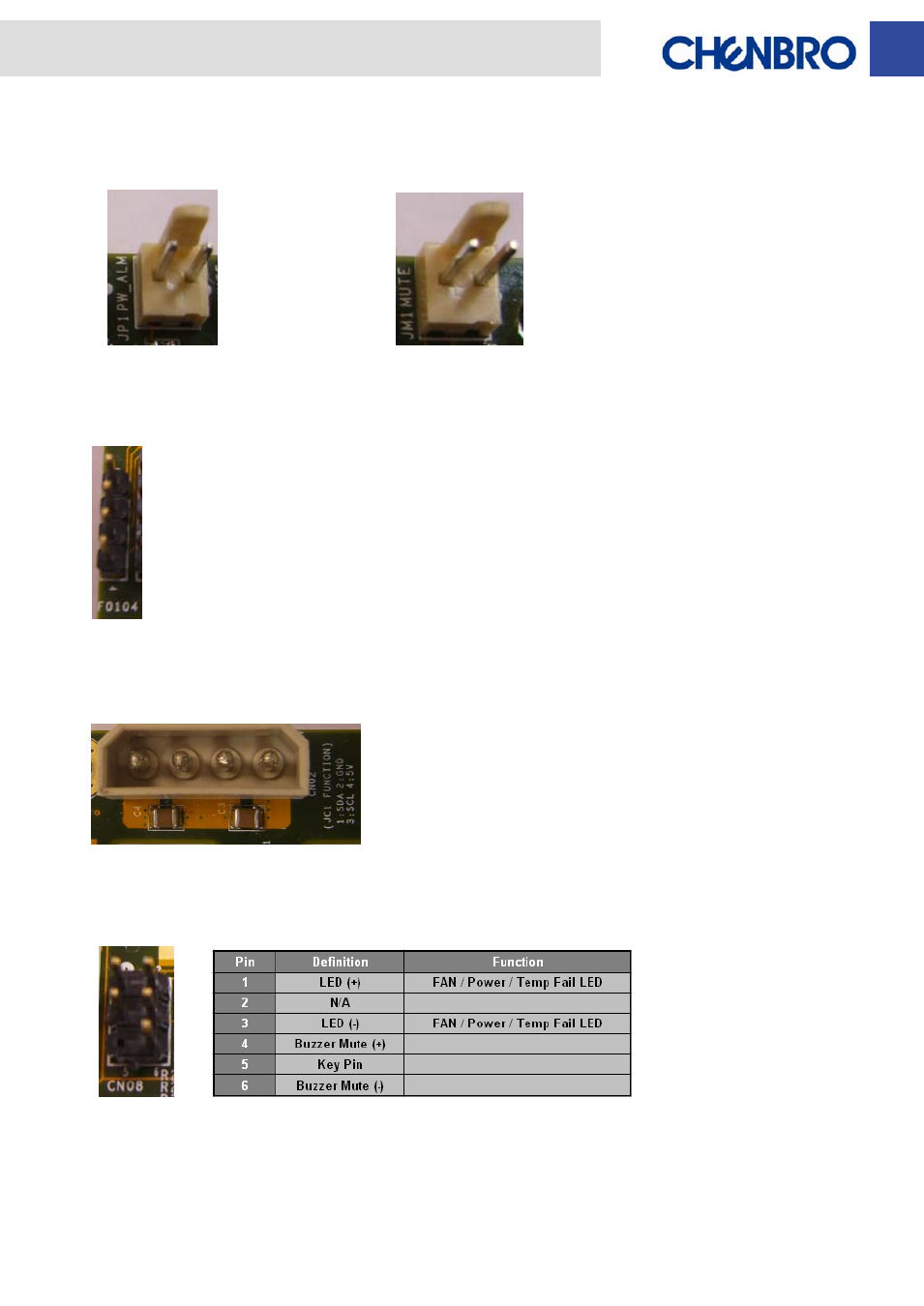

6. [JP1]:
Power failure signal ( To Redundant Power Supply )
7. [JM1]:
Power Failure Alarm Mute ( To Redundant Power Supply )
8. [F0104]
: Discrete HDD Fail LED Signal Input connector ( From RAID Card )
9.
[CN01 / CN02]
: standard big 4pin power connector
10. [CN08]
: Fan / Power / Temperature Fail LED output connector ( To Front Panel LED Display )
HDD4
HDD3
HDD2
HDD1
Pin1
Pin1
Pin1
Pin1
Pin6
