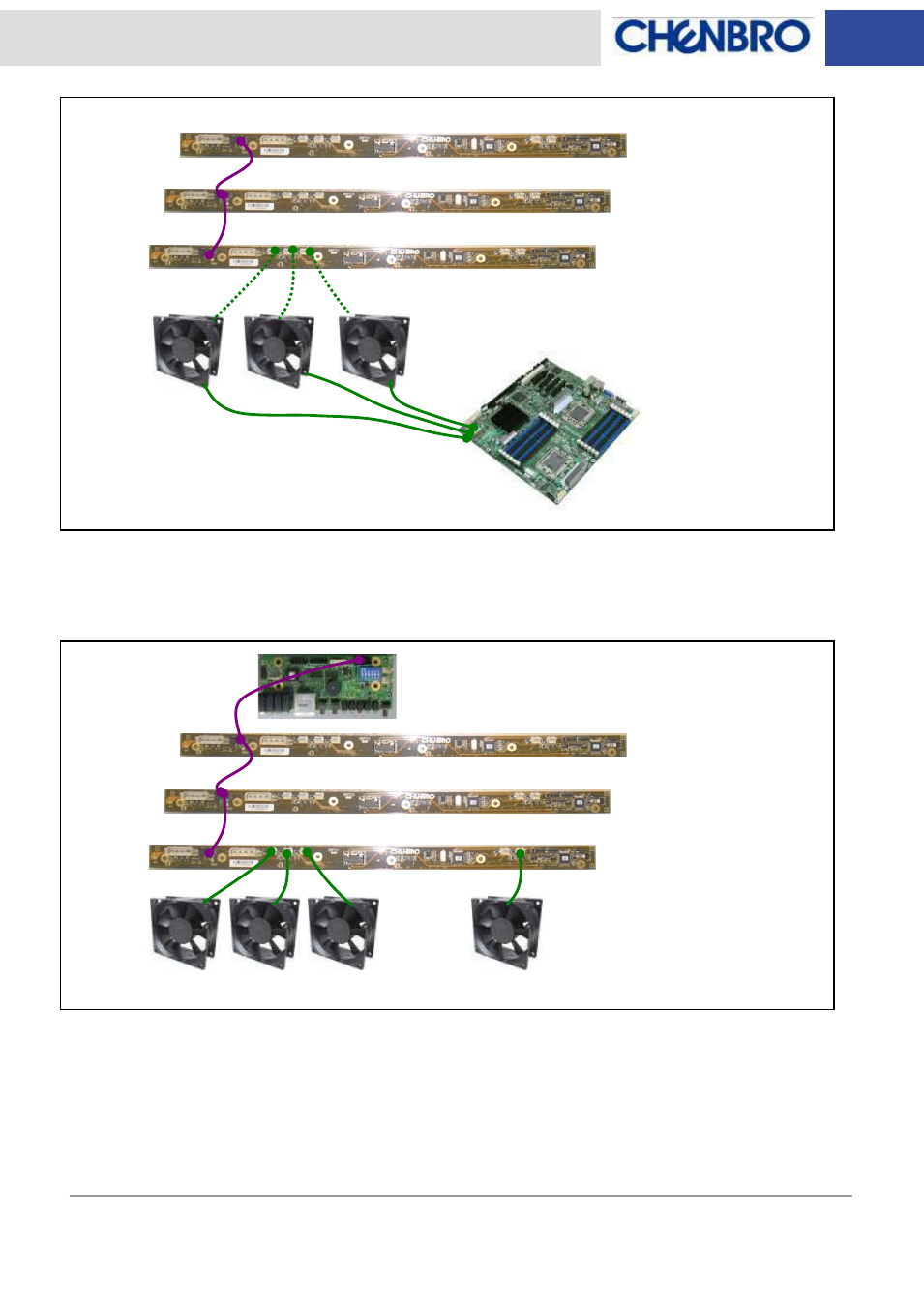

RM23212 Chassis Fan Connecting Example
RM31212B Chassis Fan Connecting Example
LED Board
Fan 1 Fan 2 Fan 3 Fan 4
BP1
BP2
BP3
PWM Fan 1
PWM Fan 2
BP1
BP2
BP3
PWM Fan 3
Motherboard
Connecting fans to motherboard
with PWM control function
Connecting fans to backplane with
full rotation speed performance
