Chenbro RM418 Series 6Gb/s 12-port 3.5 mini-SAS Expander Backplane(80H10323501A0), Rev.A0 - Manual User Manual
Page 8
12-Port 6Gb/s Expander on Backplane 80H10323501A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
8
www
.chenbr
o.com
(6)

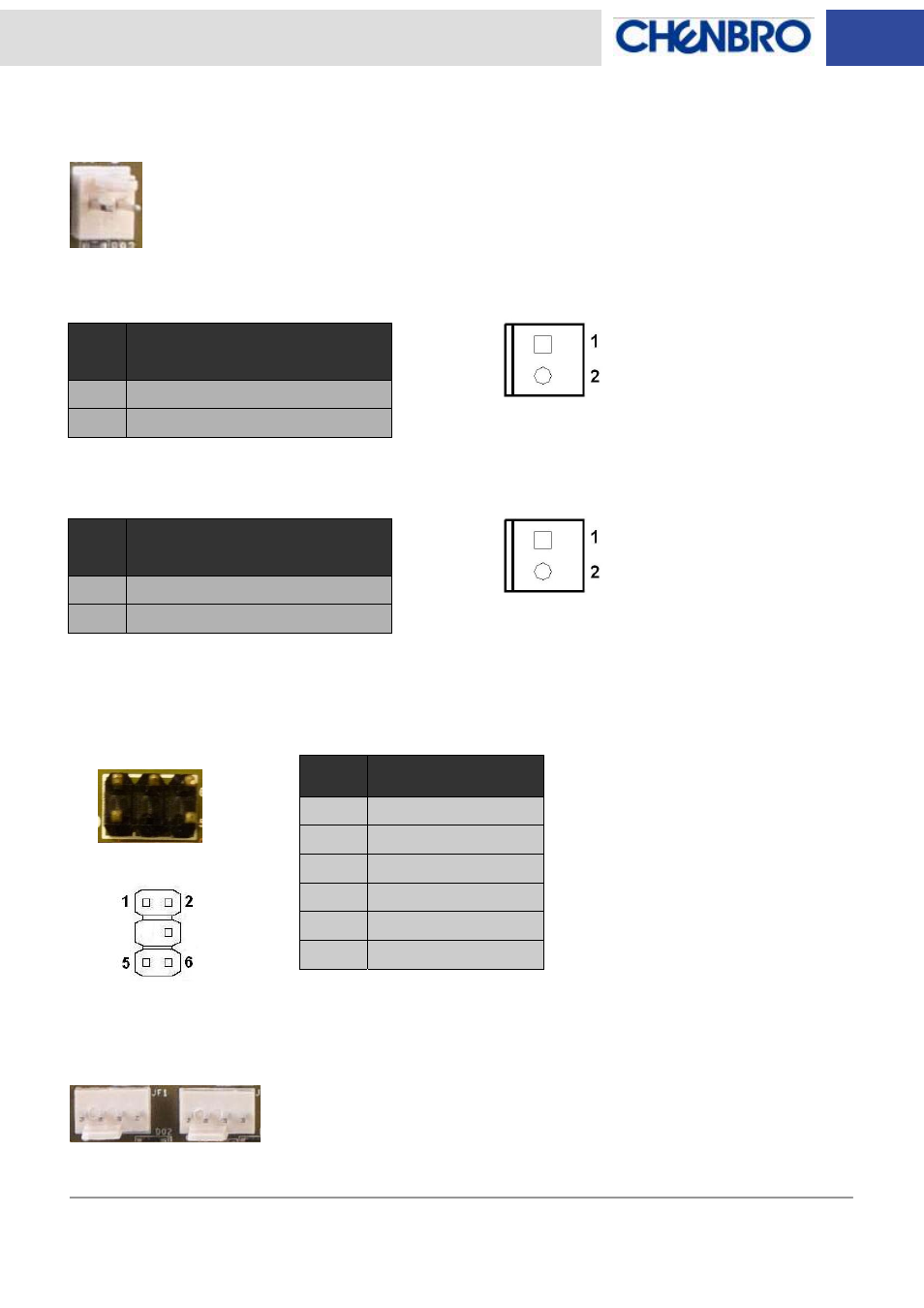

[JC4 / JC5]
: Power Mute and Power Alarm.
POWER FAIL ALARM Connector (JC4)
POWER FAIL MUTE Connector (JC5)
(7)
[JC8]
: The system status LED and mute function pin, and it is connection with LED board.
(8)
[FAN1 / FAN2 / FAN3 / FAN4]
: 4P4C Fan Connector.
Pin
NO.
Descriptions
1
GND
2
Fail signal Input(Active Low)
Pin
NO.
Descriptions
1
MUTE -
2
MUTE +
Pin NO.
Descriptions
1
SYS FAIL LED +
2
SYS FAIL LED -
3
Key Pin
4
NC
5
Mute +
6
Mute -
