12-Port 6Gb/s Expander on Backplane 80H10323501A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
6
www
.chenbr
o.com

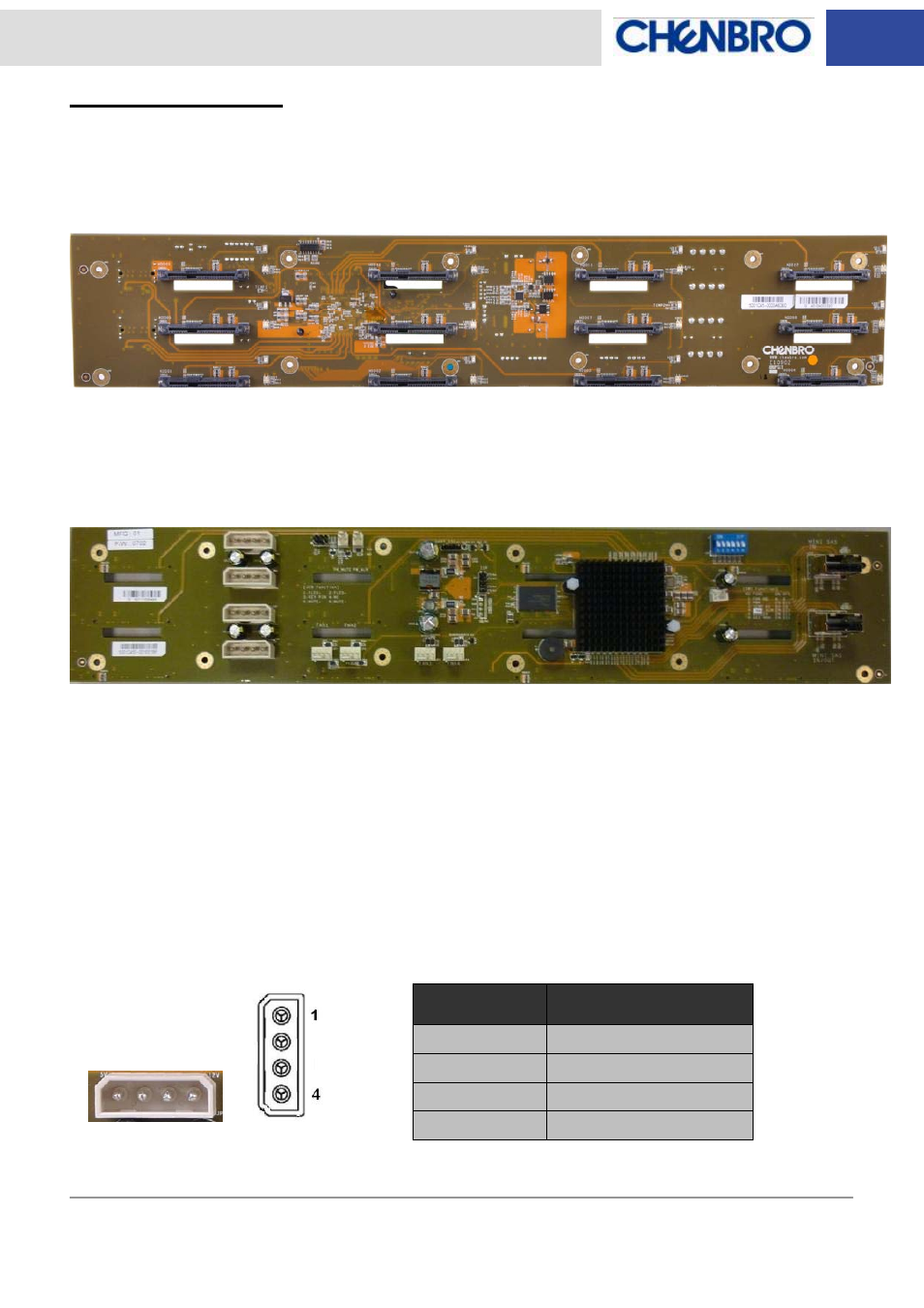

Backplane Layout
Backplane Connectors
(1) [LD011 / LD021 / LD031 / LD041 / LD051 / LD061 / LD071 / LD081 / LD091 / LD101 / LD111 / LD121] :
“Blue lights on” indicated hard drive is power on.
(2) [LD012 / LD022 / LD032 / LD042 / LD052 / LD062 / LD072 / LD082 / LD092 / LD102 / LD112 / LD122] :
“Green lights flash” indicated hard drive is working.
“Red lights on” indicated hard drive is abnormal or malfunction.
(3) [JP1 / JP2 / JP3 / JP4] : Power Connector (+5V and +12V 4pin)
Pin Number Descriptions
1 12V
2 GND
3 GND
4 5V
Front View
LD091
LD051
LD011
LD061
LD021 LD031
LD071
LD101 LD111
LD041
LD081
LD112
LD012
LD052
LD122
LD112 LD102
LD072 LD062
LD022
LD082
LD032 LD042
LD092
CN091
CN051
CN011 CN021
CN061
CN101
CN031
CN071
CN111
CN121
CN081
CN041
Rear View
JP1
JP2
JP3
JP4
SW1
CSIN
CSOUT
JC4
JC5
JC8
FAN1 FAN2 FAN3 FAN4
JF5
JC1
JC3
