Chenbro RM418 Series 6Gb/s 24-port 2.5 Expander Backplane(80H10341802A0, 80H10341803A0, 80H17341801A0), For 24-bay 2.5 Hot-swap HDD Cage - Manual User Manual
Page 19

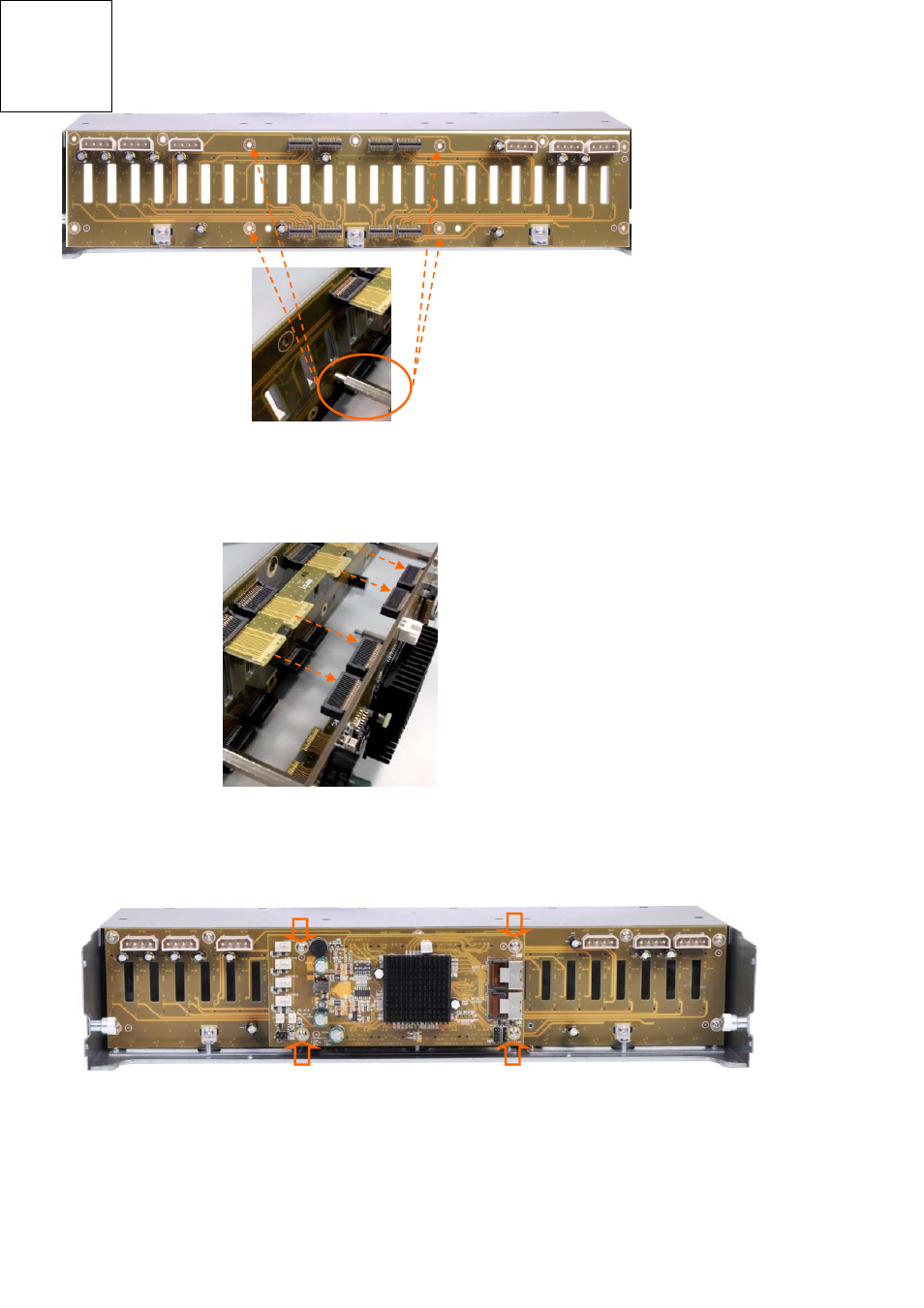

Step 4 : Screwing four studs on the backplane
Step 4 : Ducking SAS Expander daughter board on the bridge board
Step 5 : Align with the screwing hole on the studs and fasten by four screws to finish
whole HDD Cage assembly
Note : Regarding assembly for HDD cage on the chassis ,
Please refer to RM417/RM418 Chassis quick installation
guide from Chenbro official web site
HDD LED
Cable:
26H113215-0
05
This manual is related to the following products:
