Mini-sas cables – Chenbro RM418 Series 6Gb/s 24-port 2.5 Expander Backplane(80H10341802A0, 80H10341803A0, 80H17341801A0), For 24-bay 2.5 Hot-swap HDD Cage - Manual User Manual
Page 16

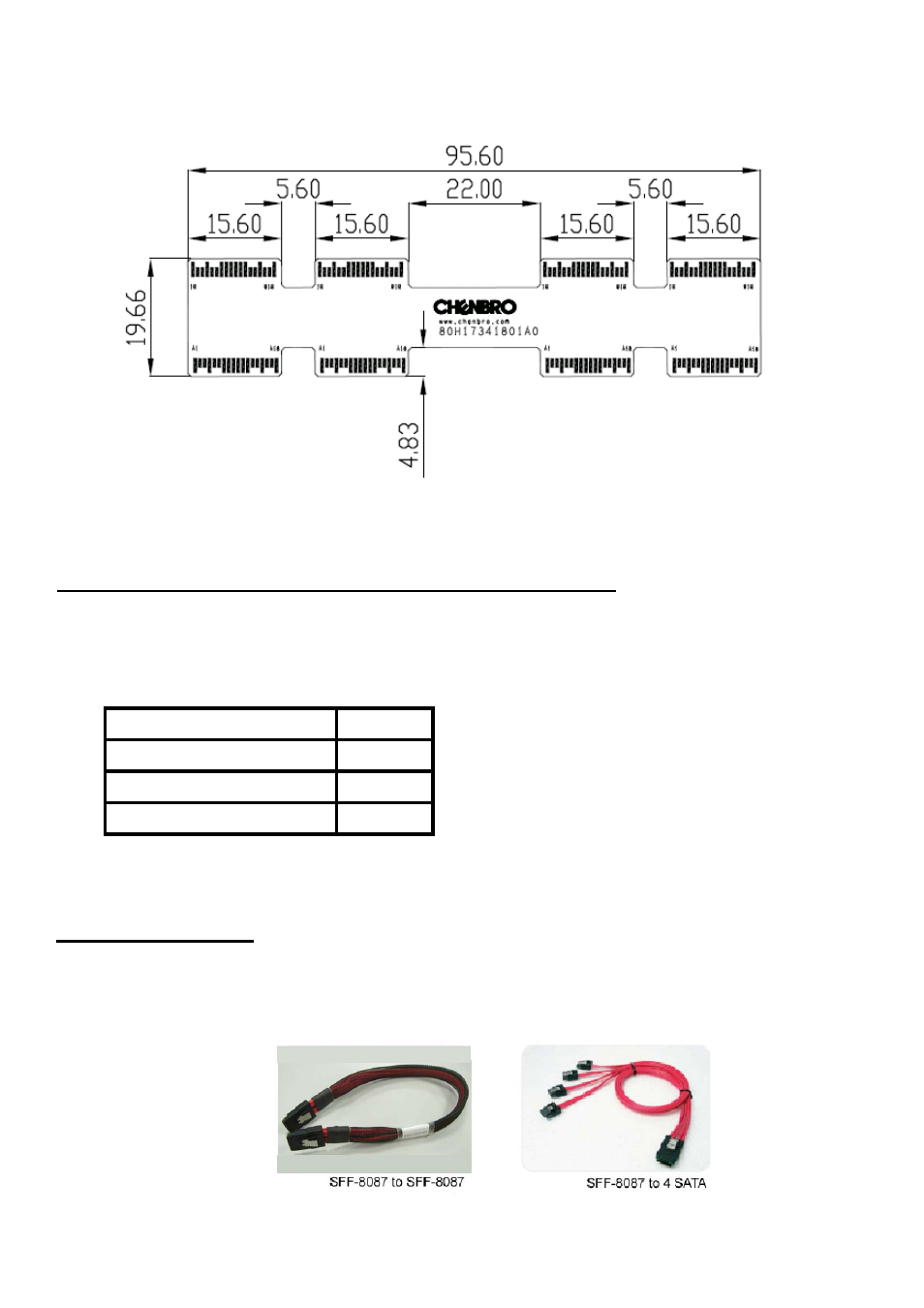

80H17341801A0 ( Bridge Board )
PWM (Pulse Width Modulation) Function of Backplane
See the table below for PWM level
Duty
Cycle
Under 45℃ (113℉)
50%
45℃~50℃ (113℉~122℉)
85%
50℃ (122℉) and above
100%
Mini-SAS Cables
RM23212 SAS Expander Backplane provides most benefits to users using various SAS RAID card via
different conversion cables. Chenbro provides various cables for different interfaces which include the
followings:
(A) (B)
