2.5” HDD 8-Port 6Gb/s Mini-SAS Backplane 80H10323406A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
9
www
.chenbr
o.com
6Gb/s Mini-SAS Cables

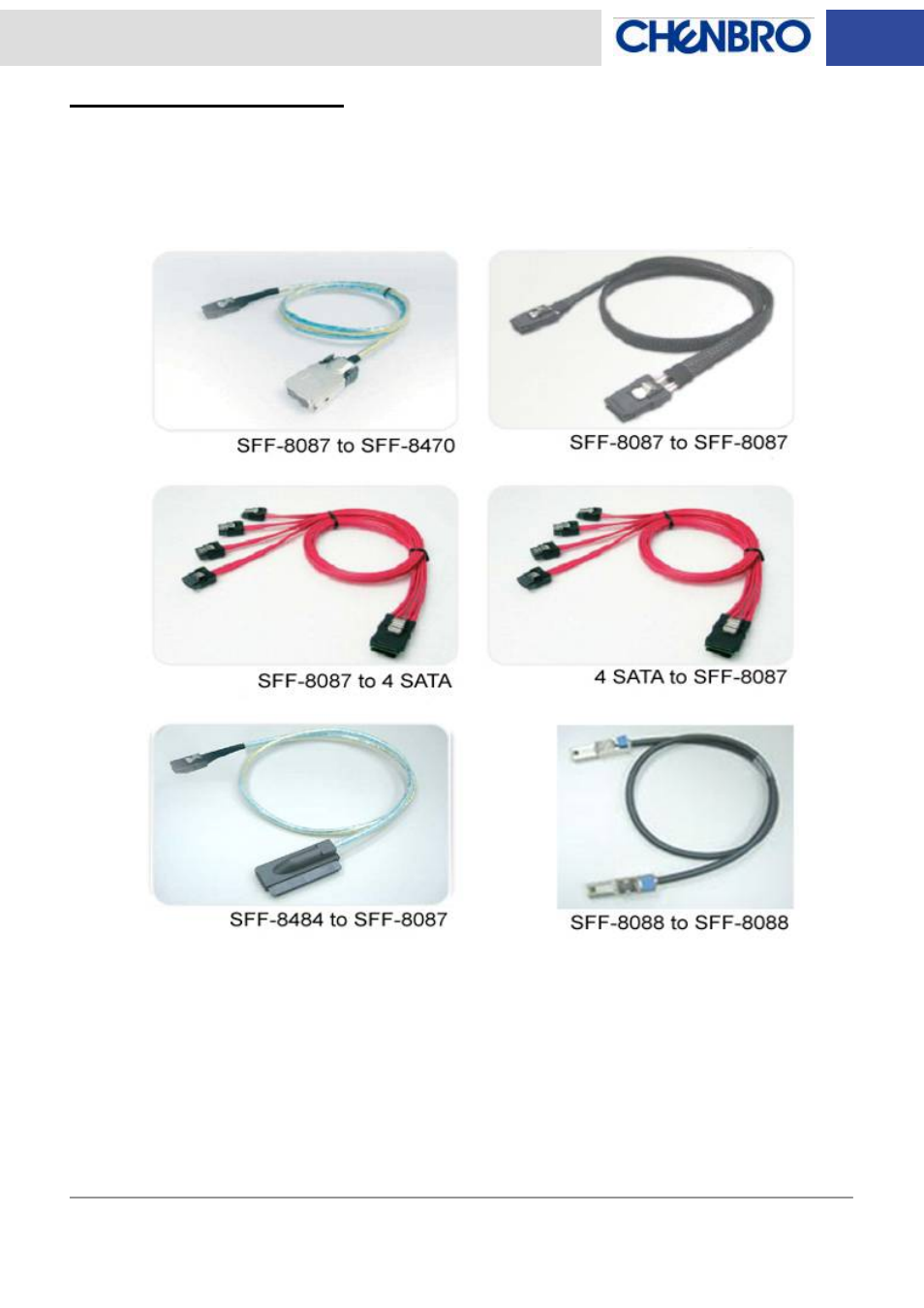

The Mini-SAS backplane provides most benefits to users using the same backplane to support various
SAS/SATA RAID card via different conversion cables. Chenbro provides various cables for different
interfaces which include the followings:
(E)
(F)
(C) (D)
(B)
(A)
