2.5” HDD 8-Port 6Gb/s Mini-SAS Backplane 80H10323406A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
6
www
.chenbr
o.com

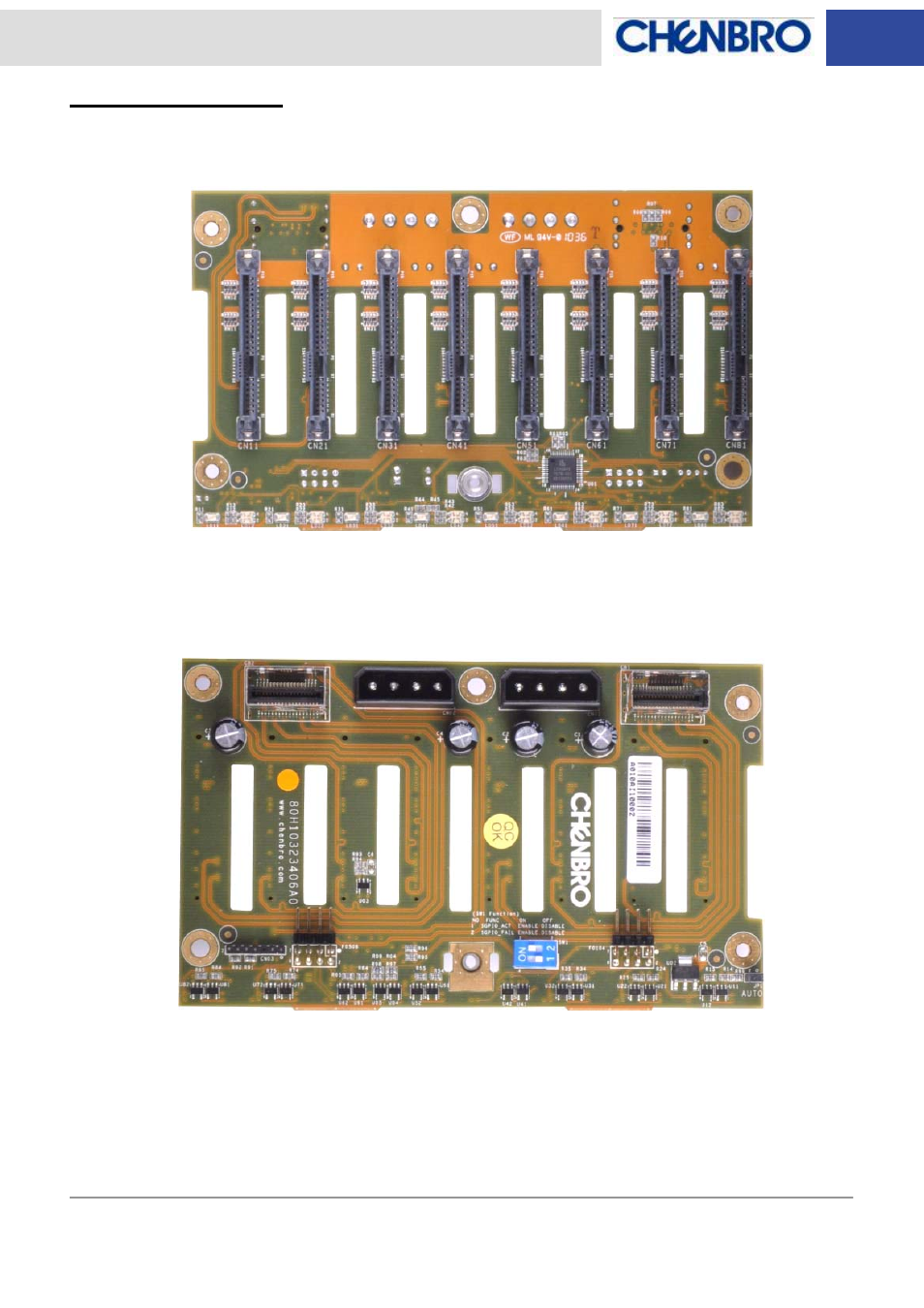

Backplane Layout
Backplane Connectors
Front View
CN11
CN71
CN21
CN61
CN51
CN81
CN41
CN31
Rear View
CN02
CN01
CB1
F0508
F0104
SW1
CB2
JP1
(1)
[CN11 / CN21 / CN31 / CN41 / CN51 / CN61 / CN71 / CN81 ]
: Connect to 22-pin SATA-II or 29-pin SAS HDD
(2)
[CN01 / CN02 ]
: Power Connector
(3)
[JP1 ]
: Auto Detect Function
(4)
[F0104]
: HDD Failure LED Signal Pin Header for HDD 1 ~ 4
