2.5” HDD 8-Port 6Gb/s Mini-SAS Backplane 80H10323406A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
8
www
.chenbr
o.com
(6)
[JP1]
: Auto Detection Jumper For SAS or SATA HDD
Jumper Closed: Enable Auto Detection (Default)
Jumper Opened: Disable Auto Detection
(7)
[CB1 / CB2 ]
: Mini-SAS connector, Pin Definition See Below Information
(8)
[CN03 ]
: Not Open To User

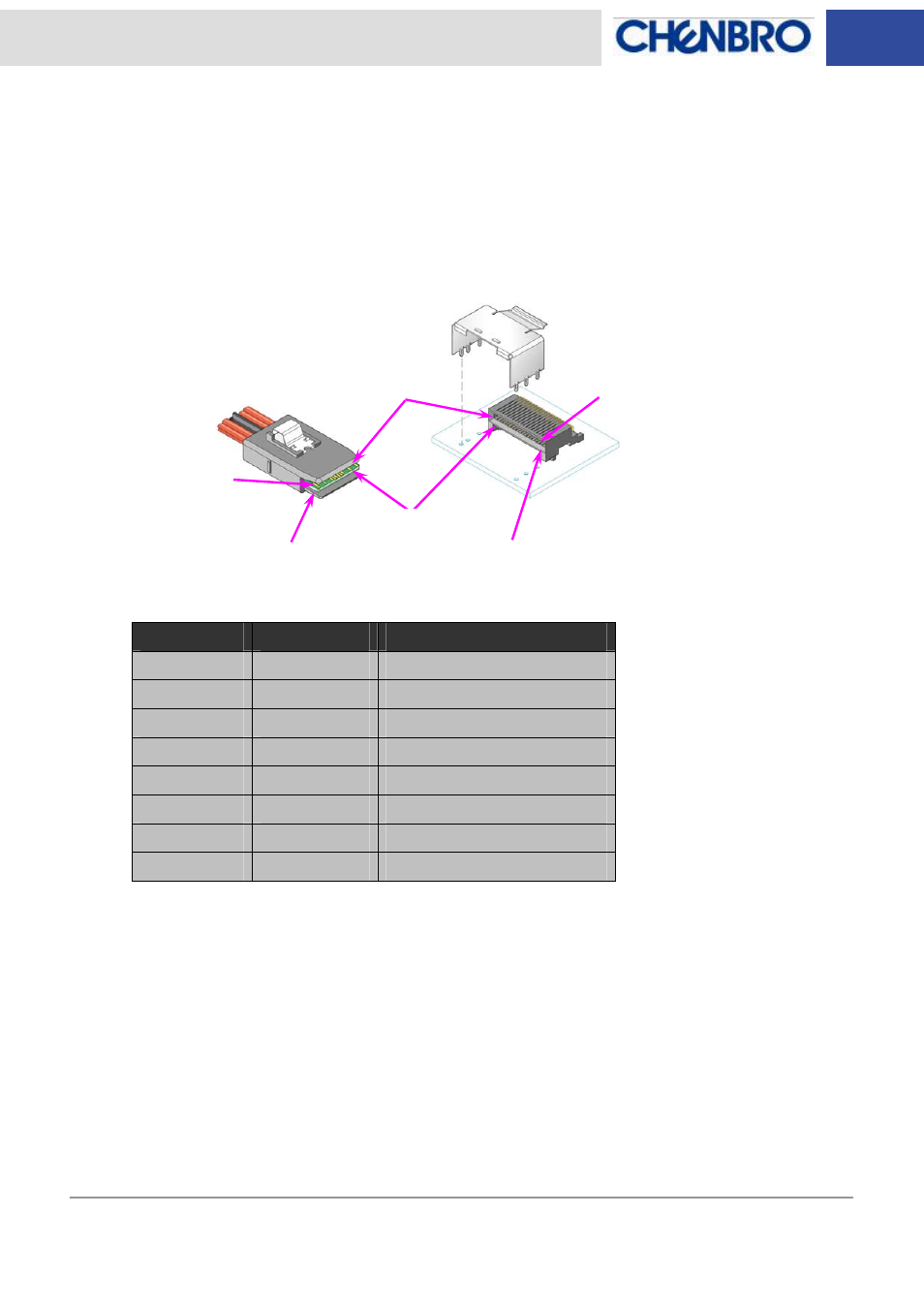

Pin Definition: SFF-8087 Mini-SAS 36-pin cable plug and receptacle connectors
A18
B18
B1
B18
A18
A1
Sideband Definition: The following table defines the SGPIO signal assignments for the Mini-SAS
receptacle connector
Pin Number
Pin
Signal
A8
Sideband 0
SClock
A9
Sideband 1
SLoad
A10
Sideband 2
Ground
B9
Sideband 3
Ground
B10
Sideband 4
SDataOut
B11
Sideband 5
SDataIn
A11
Sideband 6
Reserved
B8
Sideband 7
SGPIO Enable / Disable
