Backplane assembly – Chenbro RM21706 3Gb/s 6-port 3.5 SATA/SAS Backplane(80H103217-004) - Manual User Manual

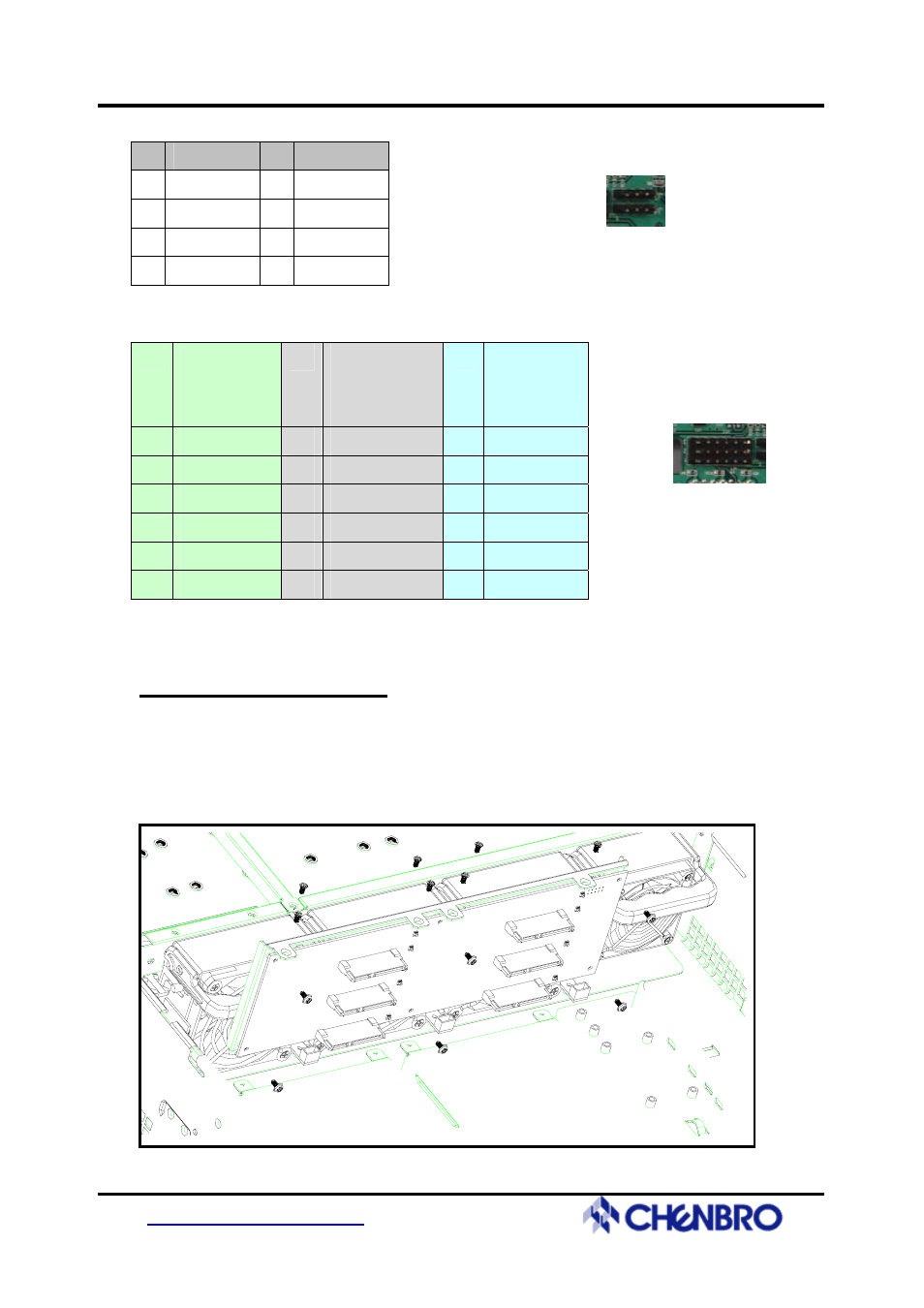

Page 5
Chenbro RM21706 / 6-Port
SATA2/SAS Backplane User’s Manual
http://www.chenbro.com
5
[J4 / J7]
J4 Def
J7
Def
1 HDD1_Fail
1 HDD5_Fail
2 HDD2_Fail
2 HDD6_Fail
3 HDD3_Fail
3 N/C
4 HDD4_Fail
4 N/C
[J1]
Pin External
Access HDD
LED Input
Pin SATA HDD
Pin-11 Access
LED Input
Pin
Power LED
Mode only
1
HDD1_Act
2
HDD1_Act
3
HDD1_PWR
4
HDD2_Act
5
HDD2_Act
6
HDD2_PWR
7
HDD3_Act
8
HDD3_Act
9
HDD3_PWR
10
HDD4_Act
11
HDD4_Act
12
HDD4_PWR
13
HDD5_Act
14
HDD5_Act
15
HDD5_PWR
16
HDD6_Act
17
HDD6_Act
18
HDD6_PWR
Note: Pin 20: N/C, Pin 21~22: Key Pin
Backplane Assembly
The Chenbro 6-Port SATA Backplane can be only assembly on Chenbro Server Chassis
RM21706, please refer to the Chassis Quick Installation Guide for the necessary
information.
HDD Fail
Input
External HDD
Access LED input
