Backplane layout – Chenbro RM21706 3Gb/s 6-port 3.5 SATA/SAS Backplane(80H103217-004) - Manual User Manual
Page 3
Chenbro RM21706 / 6-Port
SATA2/SAS Backplane User’s Manual
http://www.chenbro.com
3

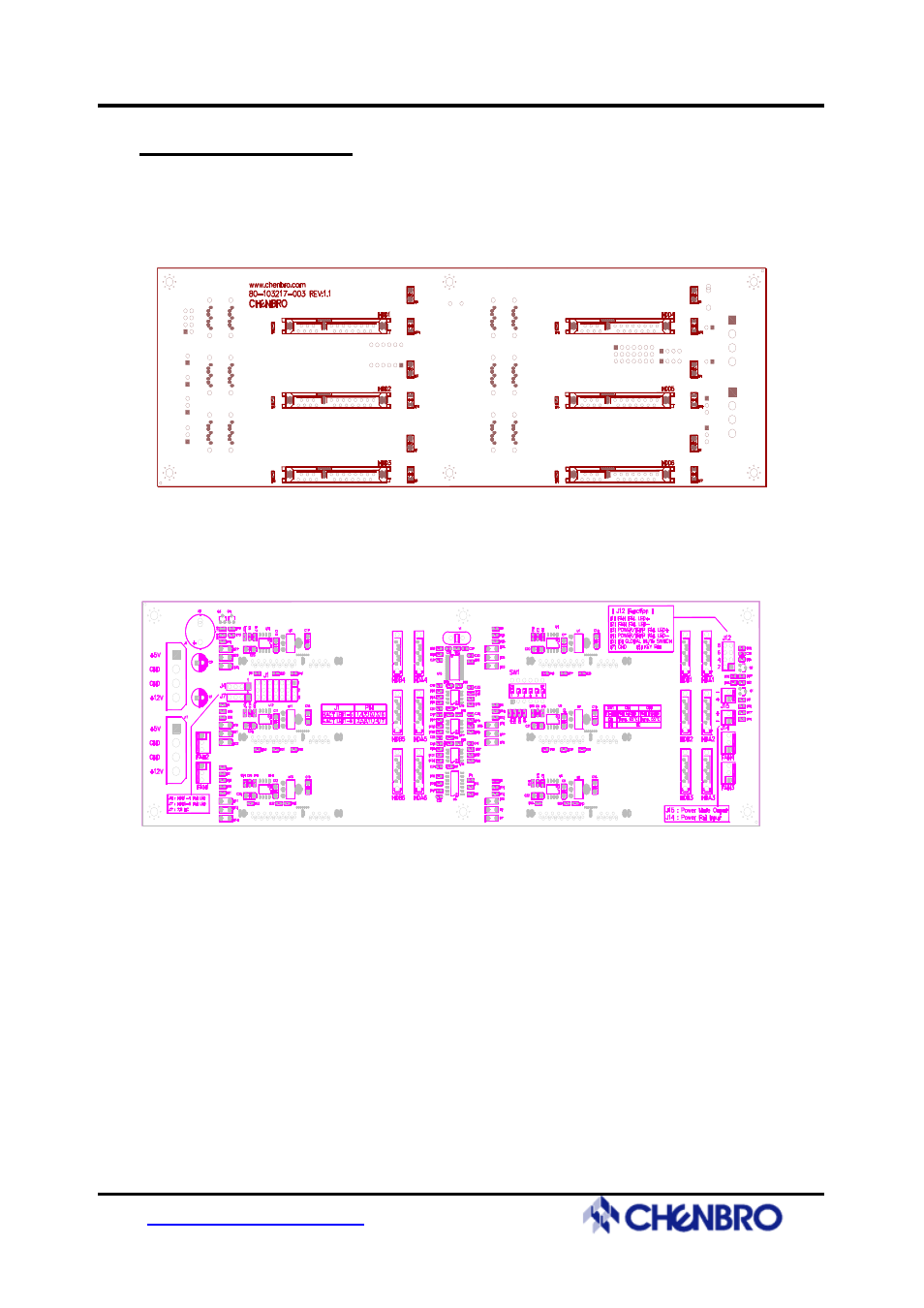

Backplane Layout
Backplane Connectors
Front view ( HDD slot IN )
Rear View ( Host Connector IN )
(1)
[HDD1/HDD2/HDD3/HDD4/HDD5/HDD6]
: Connect 22-pin SATA2 HDD
(2)
[J12]
: Fan Fail LED output connector (to LED board)
(3)
[HDA1/HDA2/HDA3/HDA4/HDA5/HDA6]
: Connect 7-pin SATA2 Host
(4)
[FAN1 / FAN2 / FAN3 / FAN4]
: Fan connectors
(5)
[SW1]
: Functionality / Mode Setting
(6)
[J11 / J8]
: Power connectors
(7)
[J14]
: Power Failure Input
(8)
[J15]
: Power Failure Alarm Mute Output
(9)
[J4 / J7]
: HDD Failure LED input
(10)
[J1]
: External HDD Access LED input
SW1
J12
FAN4
FAN1
HDD-1
HDD-2
HDD-3
HDD-4
HDD-5
HDD-6
FAN3
FAN2
J1
J4
J7
J8
J11
