Chenbro RM21706 3Gb/s 6-port 3.5 SATA/SAS Backplane(80H103217-004) - Manual User Manual
Page 4
Chenbro RM21706 / 6-Port
SATA2/SAS Backplane User’s Manual
http://www.chenbro.com
4

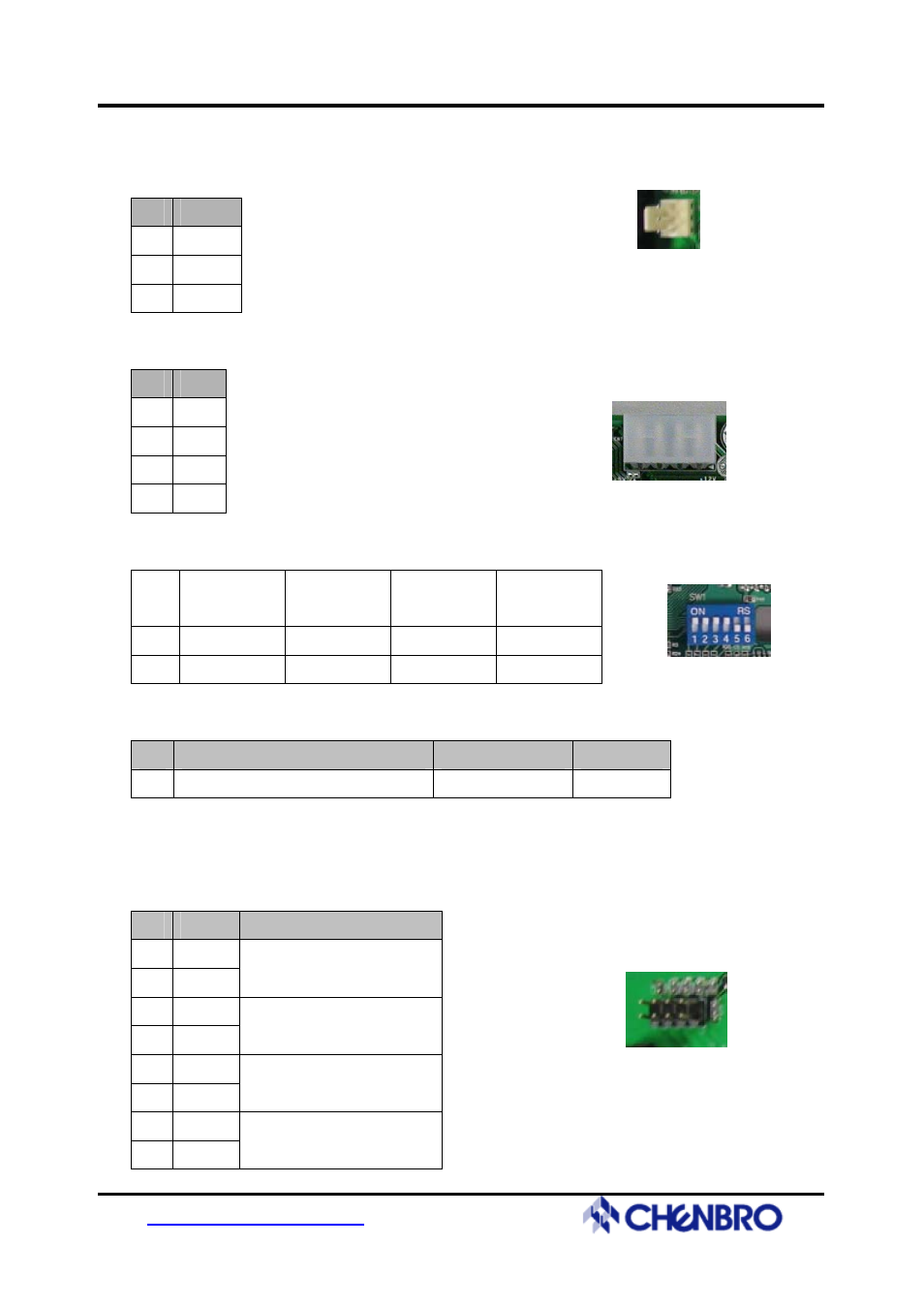

Pin Assignment
[FAN1 / FAN2 / FAN3 / FAN4]
Pin Def.
1 GND
2 +12V
3 Sensor
[J11 / J8]
Pin Def.
1 +12V
2 GND
3 GND
4 +5V
[SW1 (1,2,3,4)]
DIP4
(FAN1)
Monitoring
DIP5 (FAN2)
Monitoring
DIP6 (FAN3)
Monitoring
DIP7 (FAN4)
Monitoring
ON
Enable Enable Enable Enable
OFF
Disable Disable Disable Disable
[SW1 (5)]
DIP Function
ON
OFF
5
Monitoring Temperature Setting
55 DegC*
65 DegC
Note: SW1(6) is N/C.
[J12]
Pin Def
Output
1 LED(+)
2 LED(-)
FAN Fail LED
3 LED(+)
4 LED(-)
Power/Temp Fail LED
5 (+)
6 (-)
External Global Fail Mute
(Reserved)
7 GND
8 KEY
N/A
FAN Connector
Power Connector
Failure LED
Output
Function Switch
