2
SaFetY and GeneRaL InFORMatIOn
Save these instructions. For your safety, read, understand, and follow the information provided with and on this jack before
using. The owner and operator of this equipment shall have an understanding of this jack and safe operating procedures before
attempting to use. The owner and operator shall be aware that use and repair of this product may require special skills and
knowledge. Instructions and safety information shall be conveyed in the operator's native language before use of this jack is
authorized. If any doubt exists as to the safe and proper use of this jack, remove from service immediately.
Inspect before each use. Do not use if broken, bent, cracked or damaged parts are noted. Any jack that appears damaged in
any way, or operates abnormally shall be removed from service immediately. If the jack has been or suspected to have been
subjected to a shock load (a load dropped suddenly, unexpectedly upon it), immediately discontinue use until jack has been
checked by a BVA Hydraulic authorized service center (contact distributor or manufacturer for list of authorized service centers).
It is recommended that an annual inspection be done by qualified personnel. Labels and Operator's Manuals are available from
PRePaRatIOn
Before Use
1. Verify that the product and application are compatible, if in doubt call BVA Hydraulics Technical Service (888) 332-6419.
2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the product, its
components and recognize the hazards associated with its use.
3. Assemble handle, ensure spring clips align with slots.
4. To familiarize yourself with basic operation, use the notched end of provided handle to engage and turn the release valve:
a. Clockwise until firm resistance is felt to further turning. This is the ‘ cLOSed’ release valve position used to
raise the ram plunger.
b. Counter-clockwise, but no more than 1 turn from the closed position. This is the ‘ OPen’ release valve
position used to lower the ram plunger.
5. With ram fully retracted, locate and remove the oil filler plug/screw. Insert the handle into the handle sleeve, then pump 6 to 8
strokes. Ensure the oil level is just below the oil filler hole. Reinstall the oil filler plug/screw.
6. Check that the pump operates smoothly and that the extension screw will thread up/down easily before putting into service.
Replace worn or damaged parts and assemblies with BVA Hydraulics authorized replacement parts only.
!
PROdUct deScRIPtIOn
BVA Hydraulics Bottle Jacks are designed to lift, not support, rated capacity loads consisting of one end of a vehicle.
Immediately after lifting, the load must be supported by a pair of appropriately rated jack stands.
Never use hydraulic jack as a stand alone device. After lifting, immediately support the lifted load
with a pair of appropriately rated jack stands. Never place any portion of your body under the load while lifting
or lowering the load.
Extension Screw
(not available on J10300)
Handle Assembly
Pivot Points
Release Valve
Oil Filler Plug
(filler Screw for J10300)
Ram Plunger
Saddle
Handle Sleeve

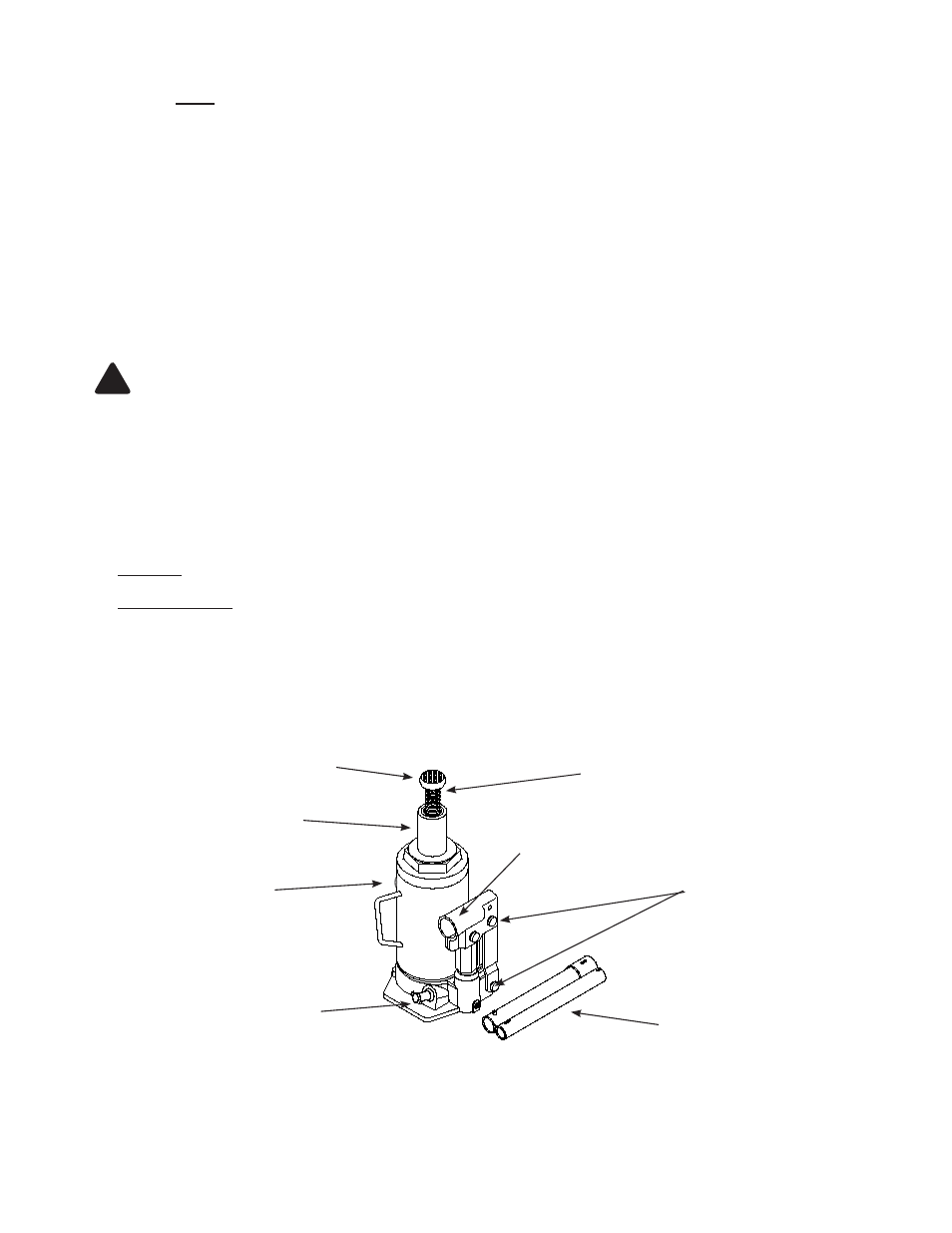

Figure 1 - Typical Bottle Jack Nomenclature
