7

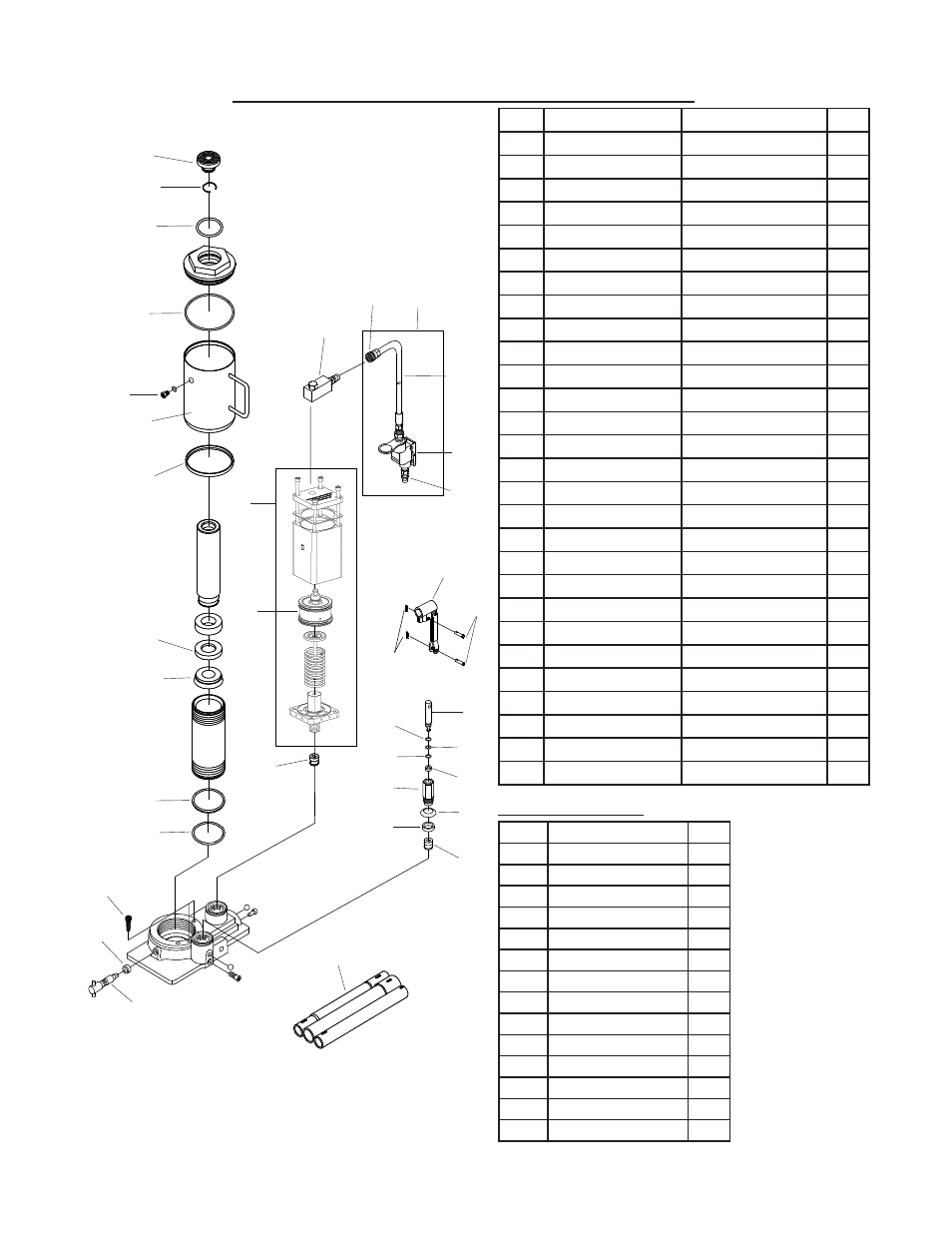

Figure 4 - Model J18302 Replacement Parts Illustration
Item Part# Description Qty.
1 B300-10003-000 Saddle 1
2 5308-00380-000 Spring 1
3 B300-15000-000 Reservoir 1
4 G62S-03301-000 Filler Screw 1
5 B120-10003-000 Filter 2
6 5905-00054-000 Seal 1
7 BT02-17100-000 Release Valve 1
8 BL80-15000-000 Hyd. Cartridge 1
9 A27010-0001 Air Motor 1
10 A27010-0002 Air Inlet Swivel 1
11 A20060-0005 Hose Assy. 1
12 A20060-0006 Air Hose 1
13 A20060-0007 Lift Control Valve 1
14 B300-14002-000 Washer 1
15 B300-14001-000 Pump Cylinder 1
16 B300-14101-000 Pump Piston 1
17 G150-04500-000 Hyd. Cartridge 1
18 5405-08030-000 Pin 2
19 B300-13000-000 Handle Socket 1
20 5405-02018-000 Snap Pin 2
21 B300-17000-000 Handle Assembly 1
22 A27010-0011 Air Coupler, Female 1
23 A20060-0016 Air Coupler, Male 1
24 A270-01100-0000 Piston, Air Motor 1
* B3000S-034 Seal Kit -
- A27010-0000 Seal Kit, Air Motor -
- J18302-L0 Label 1
- J18122-M0 Manual 1
Item Description Qty.
2 Spring 1
6 Seal 1
A O-ring 1
B O-ring 1
C Packing 1
D Back-up Ring 1
E U-cup 1
F Back-up Ring 1
G O-ring 1
H Seal 1
I U-cup 1
J Back-up Ring 1
K Back-up Ring 1
L O-ring 1
(*) Seal Kit Contents:
replacement Parts illustration and Parts List for Model J18302
1
2
A
B
4
3
C
9
24
D
E
F
G
8
5
6
7
21
17
14
H
I
J
K
L
16
20
18
19
23
13
12
11
22
10
15
