SPeciFicatiOnS
Model Capacity
Base Size
(L x W)
Saddle
Diameter
Min.
Height
Max.
Height
Hydraulic
Lift
Ext.
Screw
Volume Hyd. Oil
J18122 12 Ton 8" x 6-1/2" 1-5/8" 9-1/2" 18-1/2" 5-1/2" 3-1/2" 11.2 OZ/ 330 mL
J18202 20 Ton 8-1/2" x 7-1/4" 2" 9-3/4" 18-3/4" 5-1/8" 3-7/8" 15.1 OZ/ 445 mL
J18302 30 Ton 10-1/4" x 8-1/4" 2-1/2" 11" 18-1/8" 7-1/8" N/A 30.1 OZ/ 890 mL

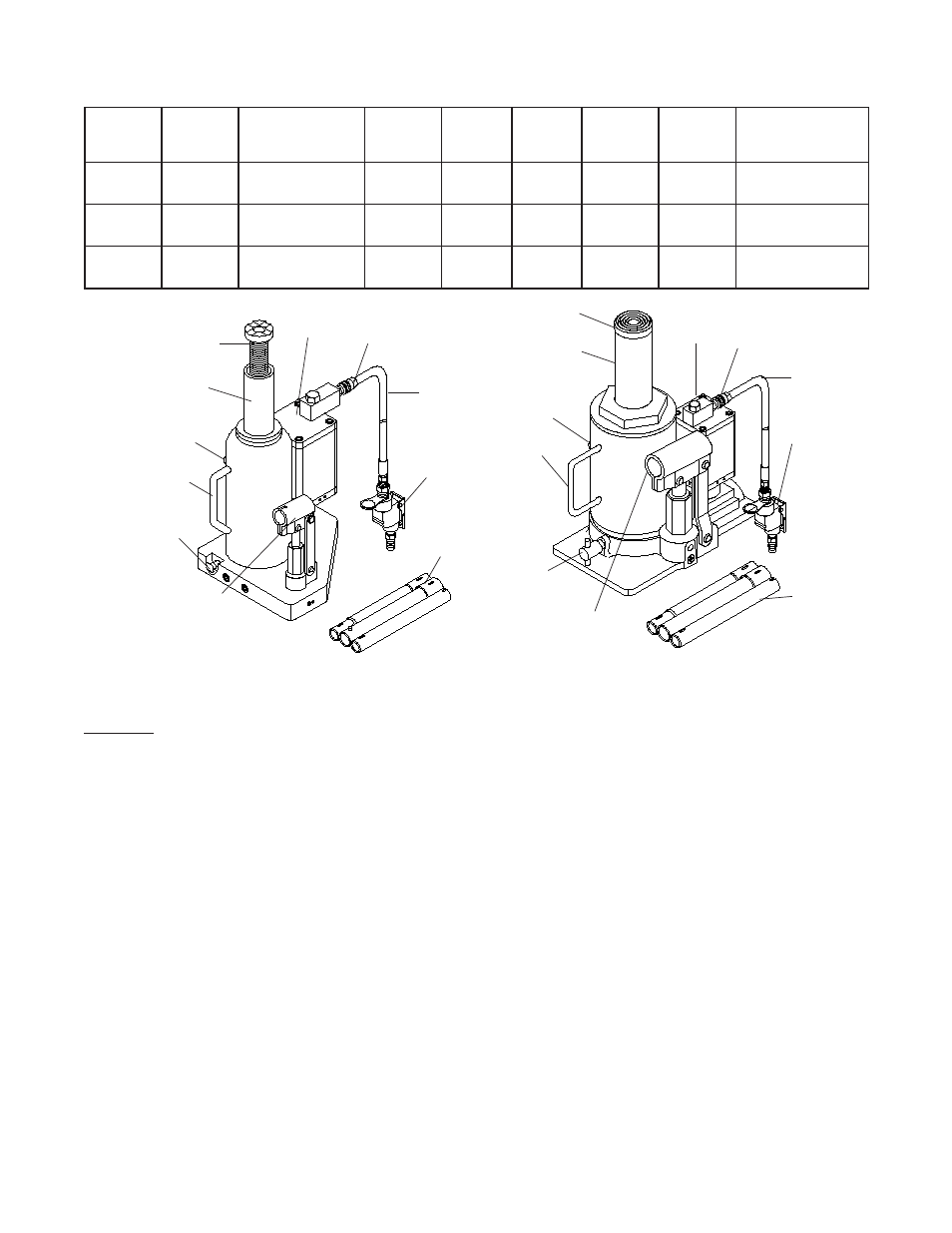

Figure 1 - J18122 & J18202 Nomenclature Figure 2 - J18302 Nomenclature
Lift Control
Valve Carry Handle
Air Motor
Release Valve
Saddle
Oil Filler
Screw / Plug*
Quick Connector
Air Hose
Handle
(*) oil filler plug for J18122
Ram
Handle Sleeve
Quick
Connector
Air Hose
Handle
Lift Control
Valve
Release Valve
Oil Filler Screw
Carry Handle
Air Motor
Ram
Saddle
Handle Sleeve
Maintenance
important: Use only good grade hydraulic jack oil. Avoid
mixing different types of fluid and NEVER use brake
fluid, turbine oil, transmission fluid, motor oil or glycerin.
Improper fluid can cause premature failure of the jack
and the potential for sudden and immediate loss of load.
We recommend Mobil DTE 13M or equivalent.
adding oil
1. With saddle fully lowered and pump piston fully
depressed, set jack in its upright, level position.
Remove oil filler screw/plug.
2. Fill with oil until just below the rim of the oil filler hole.
Reinstall the oil filler screw/plug.
changing oil
For best performance and longest life, replace the
complete fluid supply at least once per year.
1. With saddle fully lowered and pump piston fully
depressed, remove the oil filler screw/plug.
2. Lay the jack on its side and drain the fluid into a
suitable container.
note: Dispose of hydraulic oil in accordance with local
regulations.
3. Fill with oil until just below the rim of the oil filler hole.
Reinstall the oil filler screw/plug.
Lubrication
1. A periodic coating of light lubricating oil to pivot points,
axles and hinges will help to prevent rust and assure
that pump assemblies move freely.
2. When used on a daily basis, air pump should be
internally lubricated before each use. Use only good
quality air tool lubricant. If no inline oiler is used, pour
a teaspoon of air tool oil into the inlet of the air control
valve. Simply operate the jack with air pressure to
fully distribute the oil inside the air motor.
cleaning
Periodically check the pump piston and ram for signs
of rust or corrosion. Clean as needed and wipe with
an oily cloth. note: Never use sandpaper or abrasive
material on these surfaces!
Storage
When not in use, store the jack with pump piston and
ram fully retracted and air supply disconnected.
4
