Note: Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
MODELS: HLNF6002, HLNF10002, HLNF16002, HLNF20002
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com

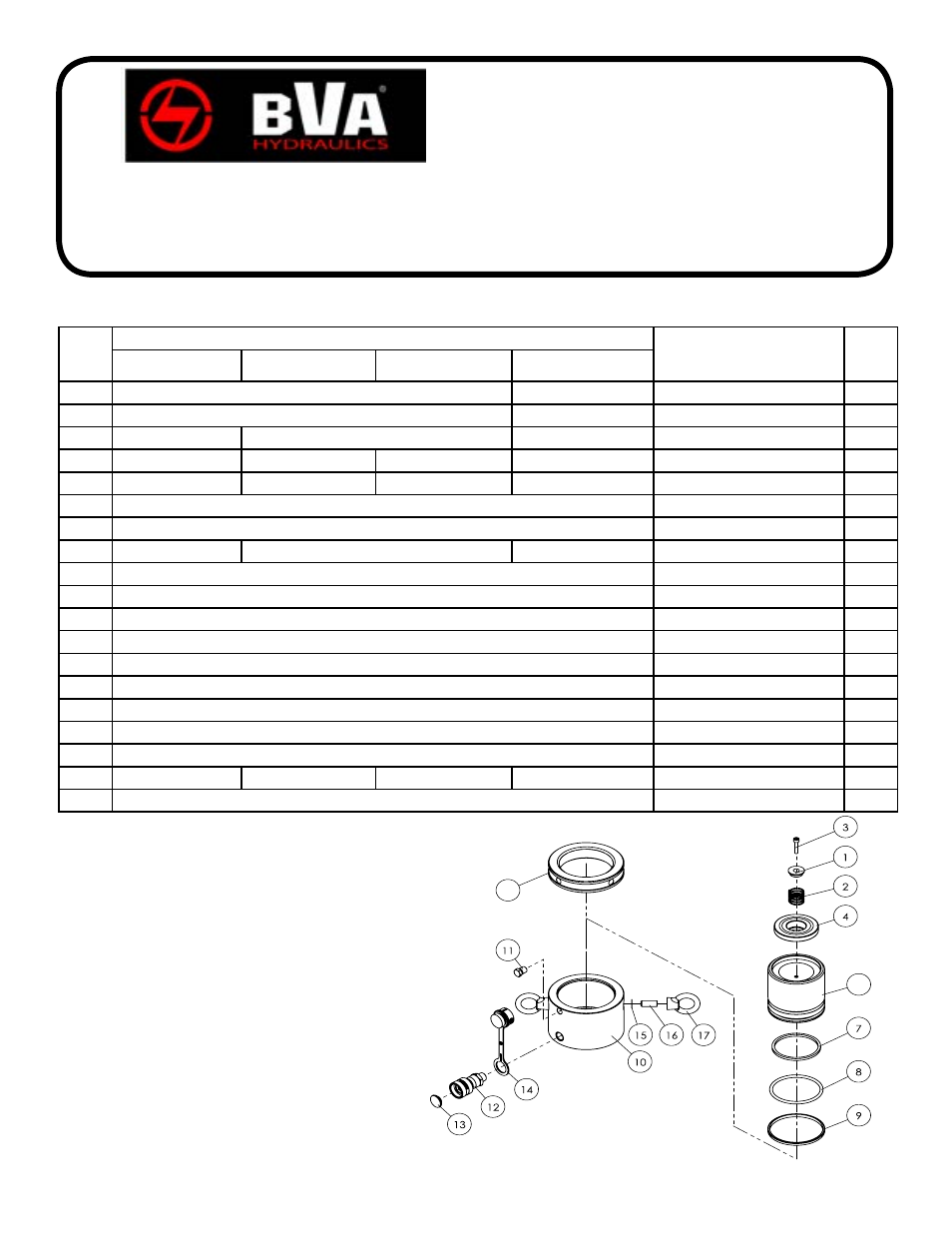

Flat Body
Lock Nut Cylinders
Service Parts
Item
Part No. for Model:
Description Qty.
HLNF6002 HLNF10002 HLNF16002 HLNF20002
1 D21-6-3001-104 D21-6-3002-106 Spring Seat 1
2 512-2-0290-105 512-2-0370-103 Compression Spring 1
3 649-1-0060-306 649-1-0060-609 649-1-0060-205 Bolt 1
4 H56-6-1106-103 H56-6-1110-104 H56-6-1116-106 H56-6-1120-107 Tilt Saddle 1
5 H56-6-1306-101 H56-6-1310-102 H56-6-1316-104 H56-6-1320-105 Lock Nut 1
6 N/A Plunger (Threaded) 1
7 * Yellow Line (Warning) 1
8 * N/A ** * O-ring 1
9 * Glyd Ring T Seal 1
10 N/A Cylinder 1
11 H56-6-1001-109 Hex Head Pipe Plug 1
12 CH38F Coupler 1
13 H02-6-1008-105 Rubber Cap 1
14 H02-4-6003-108 Dust Cap Assy. 1
15 515-3-0115-104 Washer 2
16 H40-6-0120-102 Bolt 2
17 631-2-0120-108 Eye Nuts 2
- H56-3-9901-107 H56-3-9902-109 H56-3-9903-101 H56-3-9904-103 Seal Kit -
- HLNF6002-MO OIPM -
6
5
7
(*) Items included and available only as Seal Kit.
Replacement requires special skills, knowledge, and
equipment. Only an authorized service center may
perform the repair and/or replacement of these items.
Contact BVA technical service for list of service centers.
(**) Item included with Glyd Ring T Seal.
N/A - Part is not available for replacement
