Saddle
Cylinder Housing
Hook Lug
Dust Cover
Oil Port, 3/8” - 18NPTF
(Female Coupler)
Height Adjustment
Lock- Nut
Tightening Points (To
lock the nut in place)
Overflow Ports
(helps prevent Ram
Plunger overtravel)
Overflow Ports
(helps prevent Ram
Plunger overtravel)
INSTALLATION
NOTICE: Use an approved, high-grade pipe sealant to seal all
hydraulic connections.
1. Remove the dust cover and rubber plug from coupler.
2. Inspect all threads and fittings for signs of wear or damage, and
replace as needed. Clean all threads and fittings.
3. Connect hydraulic hose from hydraulic pump to the cylinder
coupler. Ensure that there are no fluid leaks.
4. Install in-line pressure gauge.
5. Check for leaks in system and have repaired by qualified
personnel.
NOTICE: The use of cylinder attachments or extensions reduces
the cylinder capacity by at least 50% per attachment/extension.
WARNING: Before operating the pump, tighten all
hose connections with proper tools. Do not overtighten.
Connections should only be tightened securely and leak-free.
Overtightening can cause premature thread failure or high
pressure fittings to burst.
WARNING: Before repairs are made, depressurize cylinder.
Tips for hydraulic hoses & fluid transmission lines:
• Avoid short runs of straight line tubing. Straight line runs do not
provide for expansion and contraction due to pressure and/or
temperature changes.
• Reduce stress in tube lines. Long tubing runs should be
supported by brackets or clips.
!
!
BEFORE USE
1. Before using this product, read the owner’s manual
completely and familiarize yourself thoroughly with the
product, its components and recognize the hazards
associated with its use.
2. Verify that the product and the application are compatible.
If in doubt, call BVA Hydraulics Technical Service (888)
332-6419.
3. Inspect before each use. Do not use if bent, broken, leaking
or damaged components are noted.
4. Replace worn or damaged parts and assemblies with BVA
authorized replacement parts only. Lubricate as instructed
in Maintenance Section.
5. Use adequate eye protection when operating or near this
equipment.
6. Ensure method of confirming load is accurate and working
properly. Have gauge or load cell accuracy verified by
qualified personnel on a yearly basis.
7. Cylinders should be stored where protected from the
elements, abrasive dust, and damage. These cylinders
should be stored in the vertical position.
WARNING: As the load is lifted, use blocking and cribbing
to guard against a falling load. Stay clear of a lifted load
before it is properly supported. Never rely on hydraulic
pressure to support a load. Immediately after lifting, thread
the lock-nut into locking position.
!

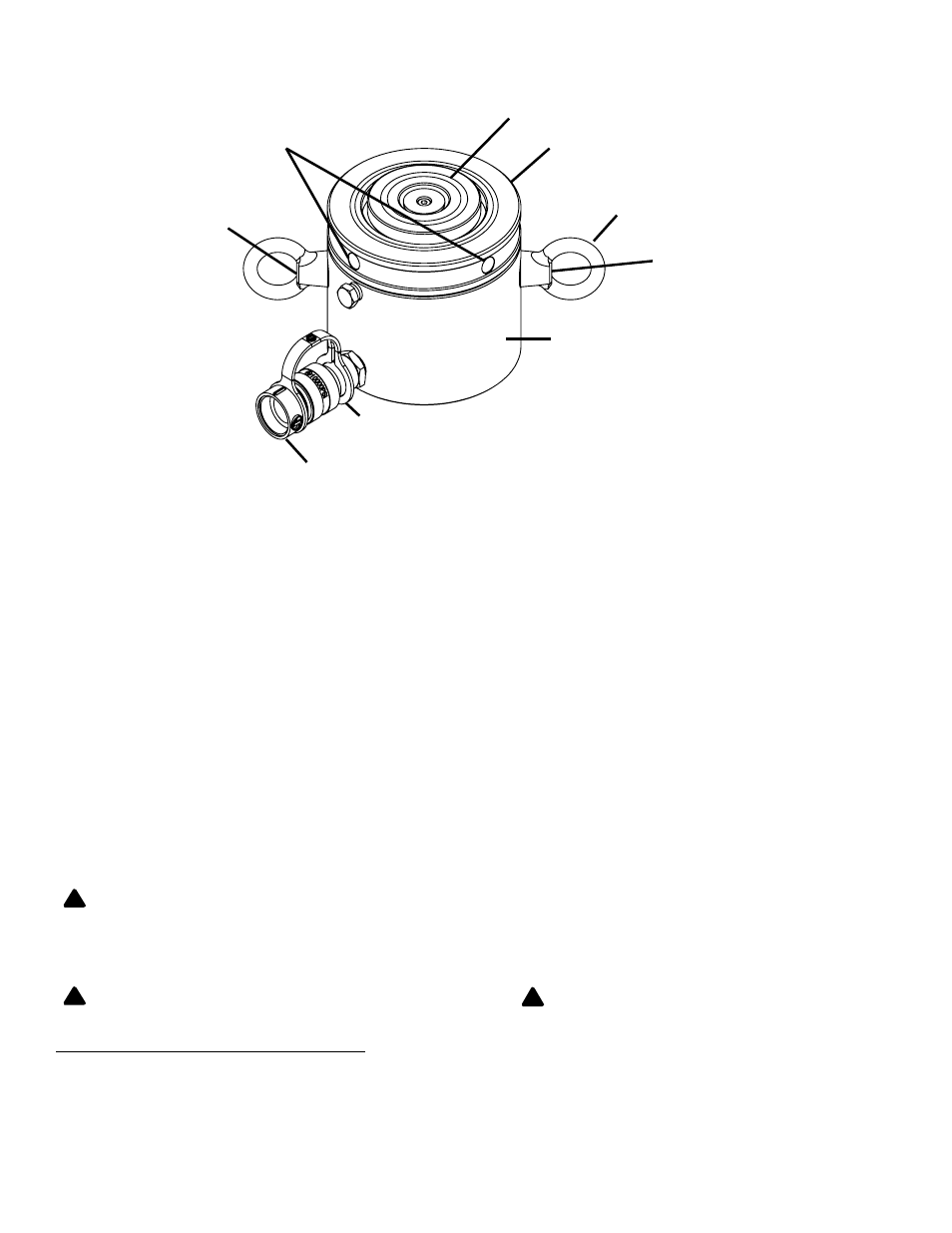

Figure 1 - Typical Lock-Nut Cylinder Components
3
