SAFETY and GENERAL INFORMATION
Save these instructions. For your safety, read and
understand the information contained within. The owner and
operator shall have an understanding of this product and safe
operating procedures before attempting to use this product.
Instructions and safety information shall be conveyed in
the operator’s native language before use of this product
is authorized. Make certain that the operator thoroughly
understands the inherent dangers associated with the use
and misuse of the product. If any doubt exists as to the safe
and proper use of this product as outlined in this factory
authorized manual, remove from service immediately.
Inspect before each use. Do not use if leaking, broken,
bent, cracked or otherwise damaged parts are noted. If the
cylinder has been or suspected to have been subjected to
a shock load (a load dropped suddenly, unexpectedly upon
it), discontinue use until checked out by a BVA Hydraulics
authorized service center. Owners and operators of this
equipment shall be aware that the use and subsequent
repair of this equipment may require special training and
knowledge. It is recommended that an annual inspection
be done by qualified personnel and that any missing or
damaged parts, decals, warning/safety labels or signs be
replaced with BVA Hydraulics authorized replacement parts
only. Any cylinder that appears to be damaged in any way, is
worn or operates abnormally shall be removed from service
immediately until such time as repairs can be made.
PRODUCT DESCRIPTION
BVA Hydraulics Single Acting Aluminum Cylinder is designed
for rated capacity pushing, spreading and pressing jobs. A
wide variety of applications exist for this category of product.
Special skill, knowledge and training may be required for
a specific task and the product may not be suitable for all
the jobs described above. Unsuitable applications would
include applications that call for a device to move, level
or support persons, animals, hazardous materials, mobile
!
!
homes/dwellings in general, mirrors and/or plate glass, and/
or to connect/secure hatches, components, etc. between
bulkheads. The user ultimately must make the decision
regarding suitability of the product for any given task and
therefore accept responsibility for that decision. I
mmediately
after lifting, loads must be supported by appropriate
mechanical means.
NEVER use hydraulic cylinder as a support device!
Always check connections before using. Alteration
of these products is strictly prohibited. Use only those
adapters and attachments provided and approved by the
manufacturer.
WARNING: To reduce the risk of personal injury and/or
property damage, ensure that the rated working pressure of
each pressurized attachment be equal to or greater than the
rated working pressure developed by the hydraulic pump.
rated working pressure developed by the hydraulic pump.
SPECIFICATIONS

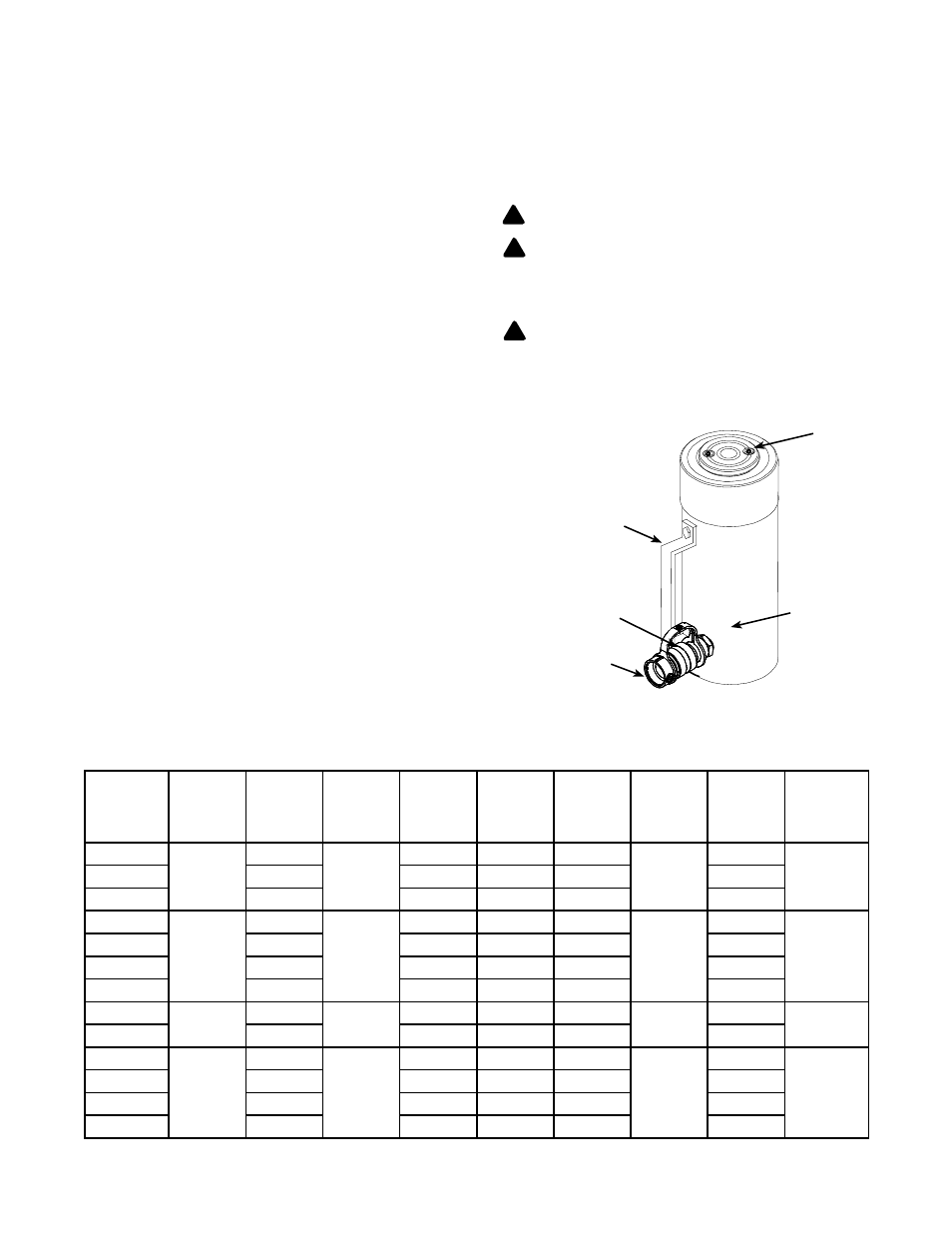

Figure 1 - Typical Single Acting Cylinder Components
Carry Handle
Saddle
Cylinder
Housing
Female Coupler,
3/8”-18NPTF
Dust Cover
Model
Number
Cylinder
Capacity
(tons)
Stroke
(in)
Cylinder
Effective
Area
(in
2
)
Oil
Capacity
(in
3
)
Collapsed
Height
(in)
Extended
Height
(in)
Cylinder
Housing
Diameter
(in)
Weight
(lb)
Internal
Pressure at
Capacity
(psi)
HU3002
30
2
6.5
13
6.5
8.5
4.5
11
9,230
HU3004
4
26
8.5
12.5
14
HU3006
6
39
10.5
16.5
17
HU5002
50
2
11
22
6.5
8.5
5.5
17
9,090
HU5004
4
44
8.5
12.5
21
HU5006
6
66
10.5
16.5
25
HU5010
10
110
14.5
24.5
34
HU7504
75
4
15
60
8.5
12.5
6.5
29
10,000
HU7506
6
90
10.5
16.5
35
HU10002
100
2
20.7
41
6.5
8.5
8
36
9,660
HU10004
4
83
8.5
12.5
43
HU10006
6
124
10.5
16.5
51
HU10010
10
207
14.5
24.5
68
!
