7
Item Part Number for Model: Description Qty.
HL5002 HL10002
1 N/A N/A Cylinder Housing 1
2 H26-4-0420-108 H26-4-0420-209 Return Spring Assy. 1
3 N/A N/A Ram Plunger 1
4 * * Back-up ring 1
5 * * O-ring 1
6 * * Special Washer 1
7 649-1-0100-201 649-1-0100-201 Bolt 1
8 H24-5-1804-204 H26-5-1804-107 Upper Bearing 1
9 * * Dust Seal 1
10 644-1-0100-105 644-1-0100-105 Bolt 1
11 CH38F CH38F Coupler, Female 3/8”-18NPTF 1
12 H02-4-6003-108 H02-4-6003-108 Dust Cover 1
13 H02-6-1008-105 H02-6-1008-105 Rubber Plug 1
14 H26-5-1204-103 H24-5-1204-301 Bearing 1
15 * * O-ring 1
(*) H26-3-9903-107 H24-3-9906-109 Seal Kit -

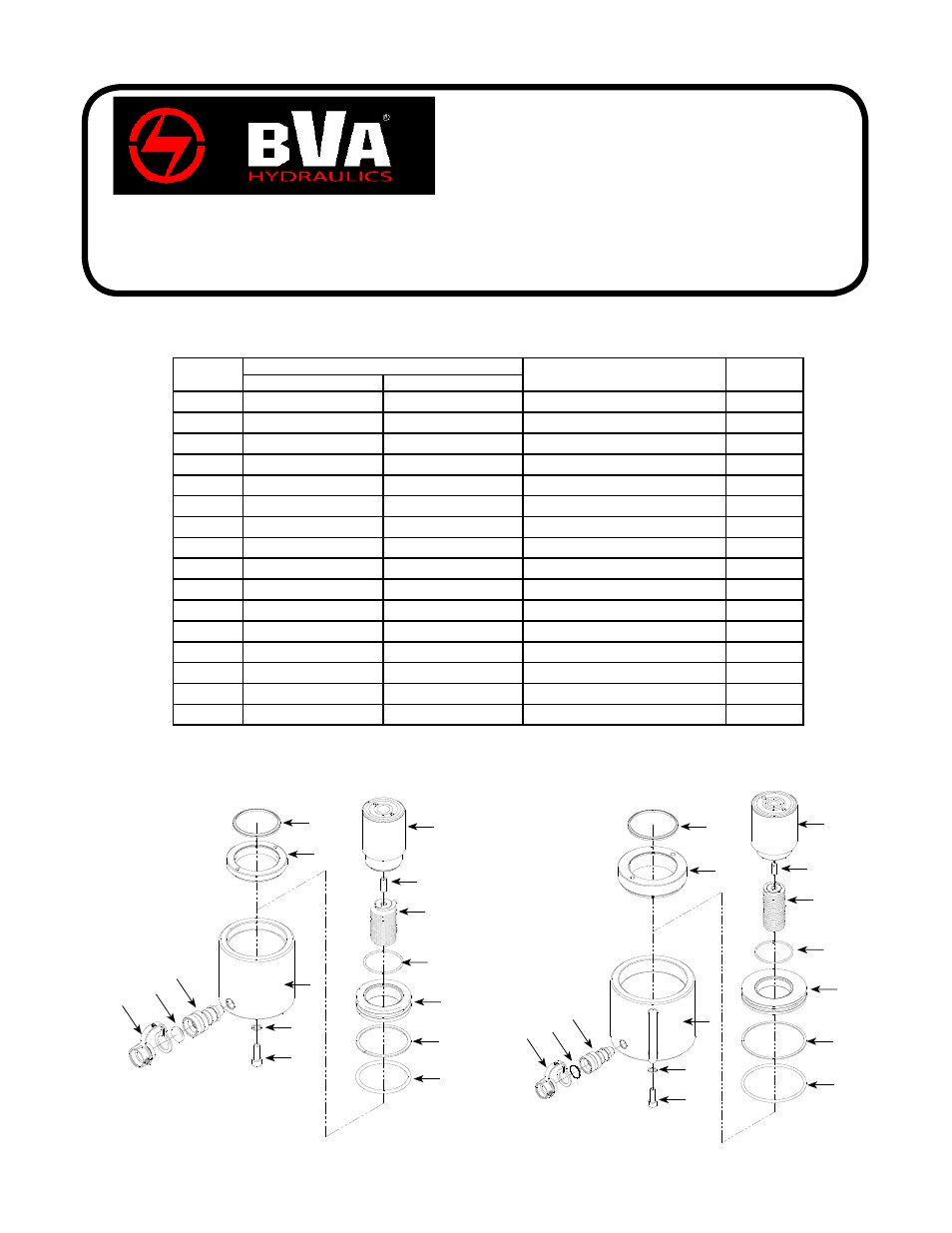

Model HL5002: Model HL10002:
1
1
2
2
3 3
4
5
4
5
6
6
7
7
8
9
8
9
10
10
11
11
13
12
13
12
15
14
15
14
MODELS: HL5002 & HL10002
Single Acting,
Low Profile Cylinders
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
Note: Not all components of the cylinder are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
HL1001-M0
rev 12/07
(*) - indicates items included in, and available only as part of Seal Kit
N/A - part is not available as replacement
