Item Part Number Description Qty.
1 N/A Cylinder Housing 1
2 H26-3-2248-100 Return Spring
Assy.
1
3 N/A Ram Plunger 1
4 * Back-up ring 1
5 * O-ring 1
6 * Special Washer 1
7 644-1-0060-035 Bolt 1
8 H24-5-1804-103 Upper Bearing 1
9 * Dust Seal 1
10 644-1-0060-200 Bolt 1
11 CH38F
Coupler, Female
3/8”-18NPTF
1
12 H02-4-6003-108 Dust Cover 1
(*) - indicates items included in, and available
only as part of Seal Kit
N/A - part is not available as replacement
Item Part Number Description Qty.
13 H02-6-1008-105 Rubber Plug 1
14 HL1001 Cylinder 1
15 H26-3-1003-101 Adapter III,
2.95” (75mm)
1
16 H26-3-1002-109 Adapter II,
1.97” (50mm)
1
17 H26-3-1001-107 Adapter I,
0.98” (25mm)
1
18 H26-3-1004-103 Base 1
19 H26-6-7101-109 Carrying Case 1
20 511-7-0180-303 O-ring -
(*) H24-3-9901-109 Seal Kit, Cylinder -
rEPLaCEMEnT ParTS
Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location
and position in the assembly sequence.
Model J72101:

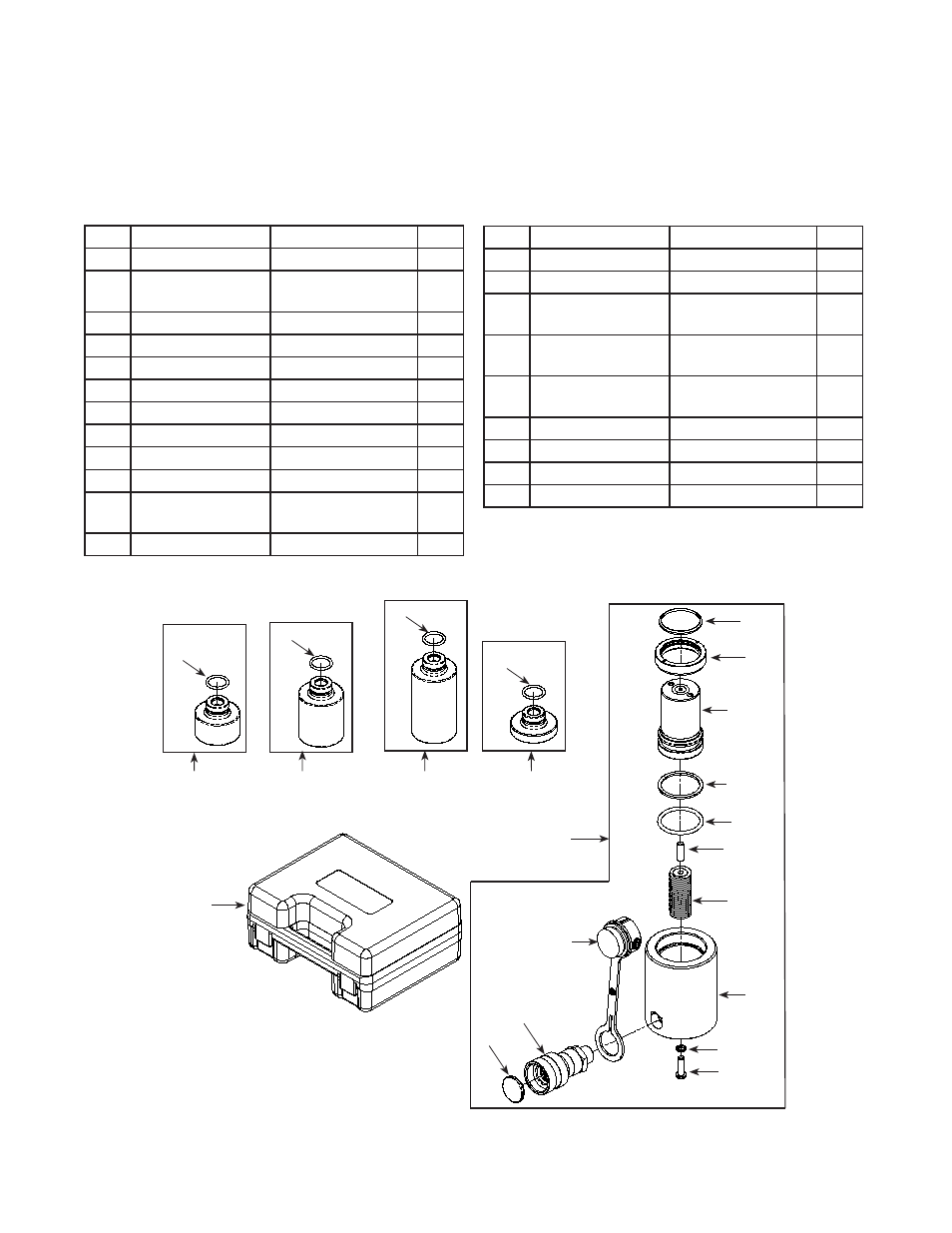

Figure 3 - Parts Illustration for model J72101
