BeStar BLS104-2-08H36.5W120 - Manual (Page 2)

4 6 5 2 3 1
A
B
C
D
E
F
G
H
A
B
T
h
is
p
ri
n
t
a
n
d
i
n
fo
rm
a
tio
n
t
he
re
i
n
a
re
p
ro
p
ri
e
ta
ry
t
o
B
e
s
ta
r
E
le
c
tr
o
n
ics
I
ndu
s
tr
y
C
o
.,
L
td.
a
nd
s
h
a
ll
no
t
b
e
u
s
ed
i
n
w
h
o
le
o
r
in
pa
rt
w
ith
ou
t
it
s
w
ri
tt
en
c
on
tent
C
D
E
F
G
H
6 5 4
Checked by:
Approved by:
Drawn by:
Date:
3 2 1
Speaker
Page:2 of 7 DRG NO: BS/TES01.759A
Rev. Drawn Date Note
www.be-star.com [email protected]
A
BLS104-2-08H36.5W120
BLS104-2-08H36.5W120

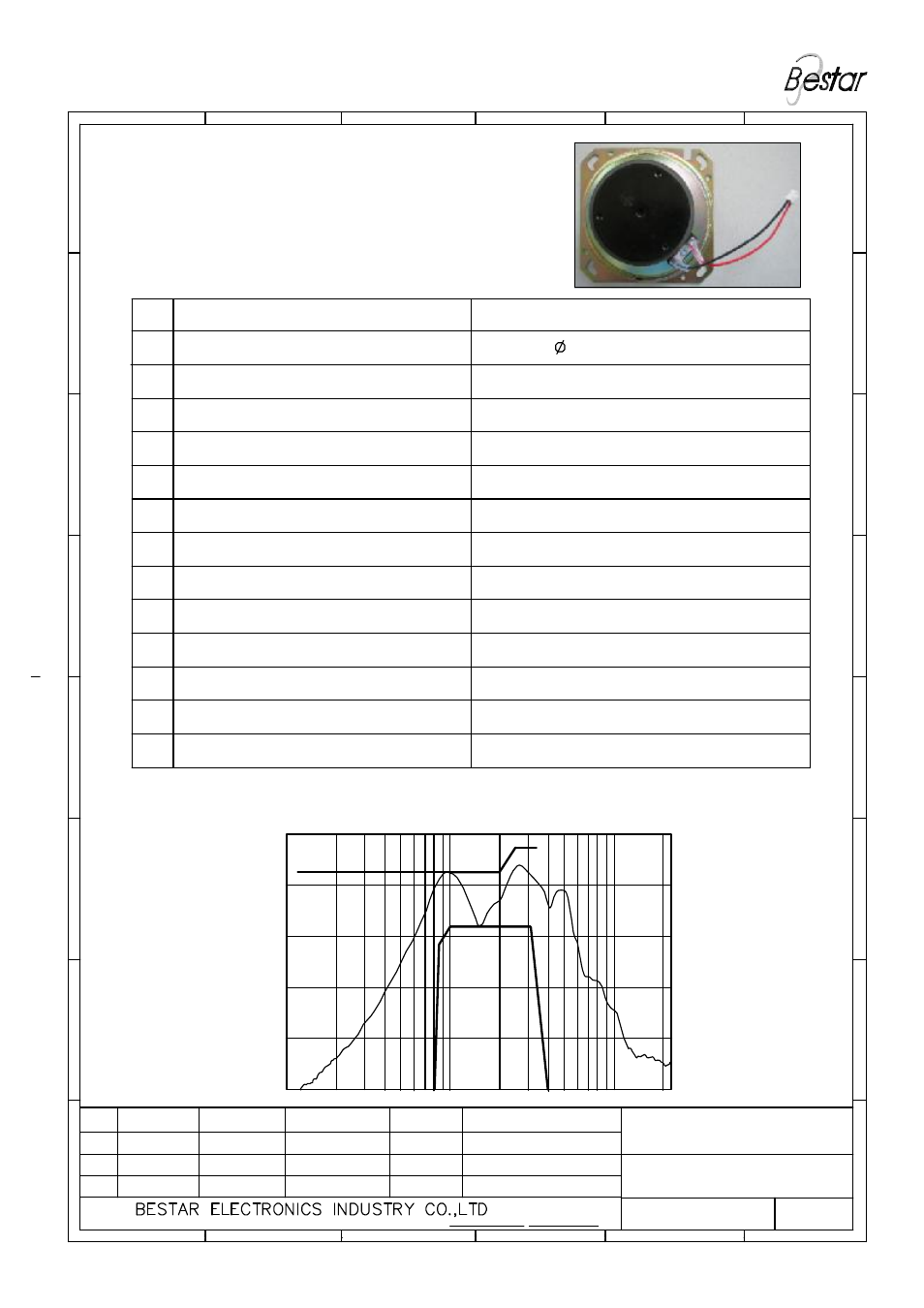

1.Technical Terms
No. Item Specifications
1. Size 104*36.5mm
2. Impedance at 1.5kHz 8 ± 1.2 Ω
3. Voice coil DC resistance 6.8 ±1 Ω
4. Resonance frequency 850
± 127Hz
5. Operating frequency range 400...4KHz
6. Rated input power 8 W (8Vrms to 8 Ω impedance )
7. Maximum input power 13.5W( 10.4Vrms to 8 Ω impedance )
8. Buzz & Rattle(at sine wave8.0V) must be normal
9. T.H.D(710Hz to 3550Hz) ≤ 20%(0.08W to 13.5W)
10. SPL(1m,2.83Vrms) at 1000 Hz 99+6/-2dB
11. Polarity Positive voltage to (+),
the diaphragm move forward
12. Operating temperature 0...+ 49
°C
