Baldwin Ashton Two-Point Lock Handleset User Manual
Page 4
© 2005 BALDWIN HARDWARE CORPORATION, READING, PA, U.S.A.
H1705.000.00015A

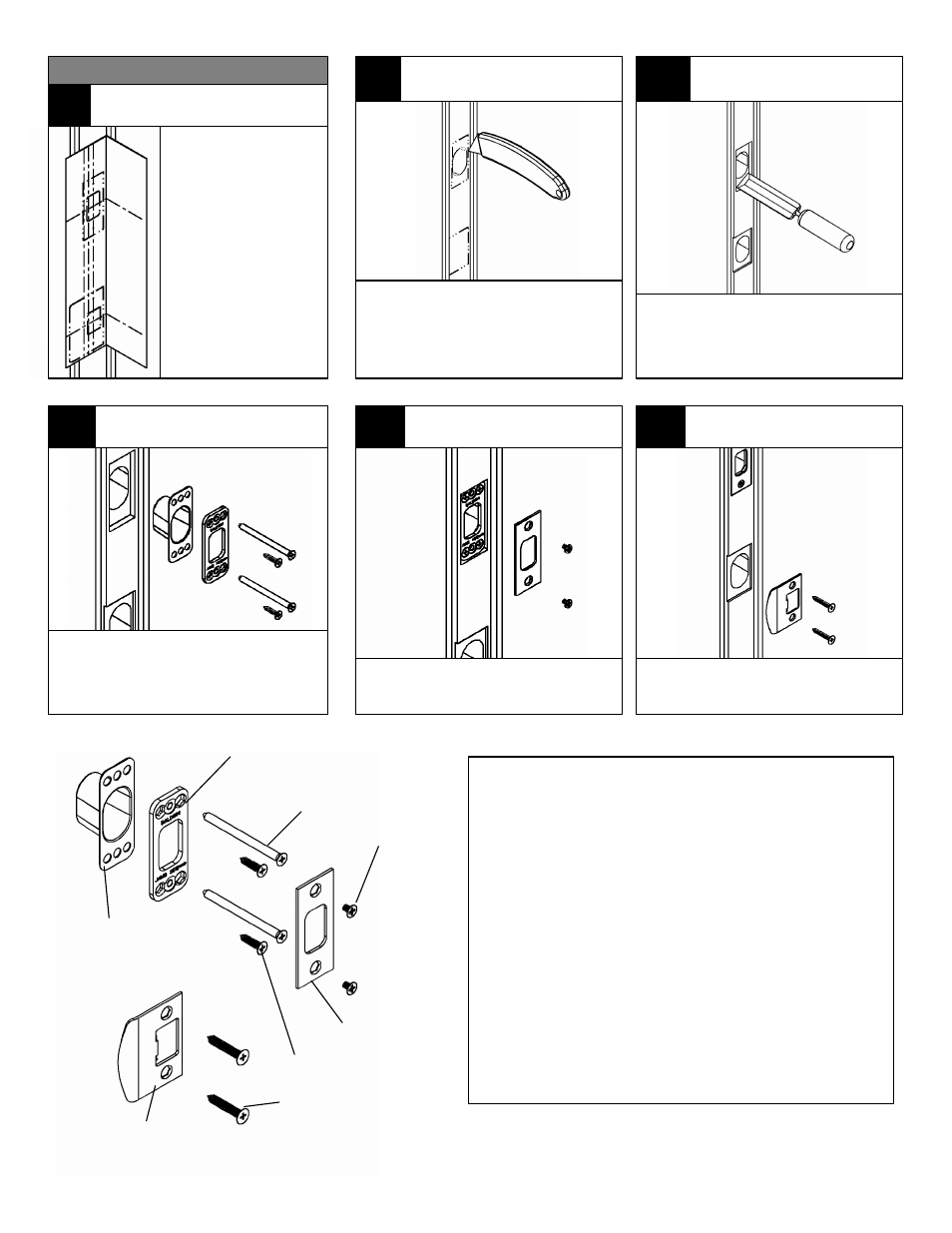

22
INSTALL DEADBOLT DUST BOX &
REINFORCING STRIKE
23
INSTALL DEADBOLT STRIKE
PLATE
Using the reinforcing strike as a guide, pre-
drill the screw holes. Install dust box and
reinforcing strike. Ensure 3" screws for
reinforcing strike are installed on the stop side
of the plate.
Install deadbolt strike plate.
Using the strike as a guide, pre-drill the
screw holes. Install strike plate.
24
INSTALL LATCH DUSTBOX &
STRIKE PLATE
General Notes:
Paper template is designed for 1-3/4" thick doors. For extra
thick doors, measure backset from center of door edge. Tape
supplied template to the door to locate placement of hole pattern
of lock and trim. ** Paper template is located on the low side
of the bevel on the door.
When installing hardware on metal doors, ensure the door was
designed to accommodate tubular locks. If in doubt, check with
your local door distributor or door manufacturer.
Removal of hardware from doors is recommended before
painting and finishing of the door. Allow finishing materials to
fully cure before reinstalling hardware, usually ten days to two
weeks. Check paint manufacturer instructions.
Retain these instructions in a safe place should you need to
disassemble the lock trim or require Baldwin Hardware
Corporation's assistance.
DEADBOLT
DUSTBOX
REINFORCING
STRIKE
SECURITY
SCREWS
DEADBOLT
STRIKE PLATE
LATCH
STRIKE PLATE
STRIKE PLATE
SCREWS
STRIKE PLATE
SCREWS
STRIKE SCREWS
19
* Apply any weather-
stripping before
installing strike(s).
Mark deadbolt with chalk,
lipstick or pencil. Shut
door and throw deadbolt
to transfer location to
doorjamb. Using the
supplied template, align
strike hole template with
center point. Mark center
holes of latch bolt and
outer corners of both
strikes with a pencil.
Mark drill point 5/16" above & below the
center points.
Deadbolt: (2) 1" holes x 1-1/4" deep
Latch: (2) 1" holes x 1" deep
Very carefully score strike plate outlines
with utility knife.
Chisel out strike plate cavities.
Deadbolt: cavity to be 7/32" deep
Latch: cavity to be 3/32" deep
MARK JAMB WITH STRIKE
TEMPLATE
20
DRILL HOLES & SCORE STRIKE
PLATE OUTLINES
21
CHISEL STRIKE PLATE
CAVITIES
STRIKE PLATE INSTALLATION
