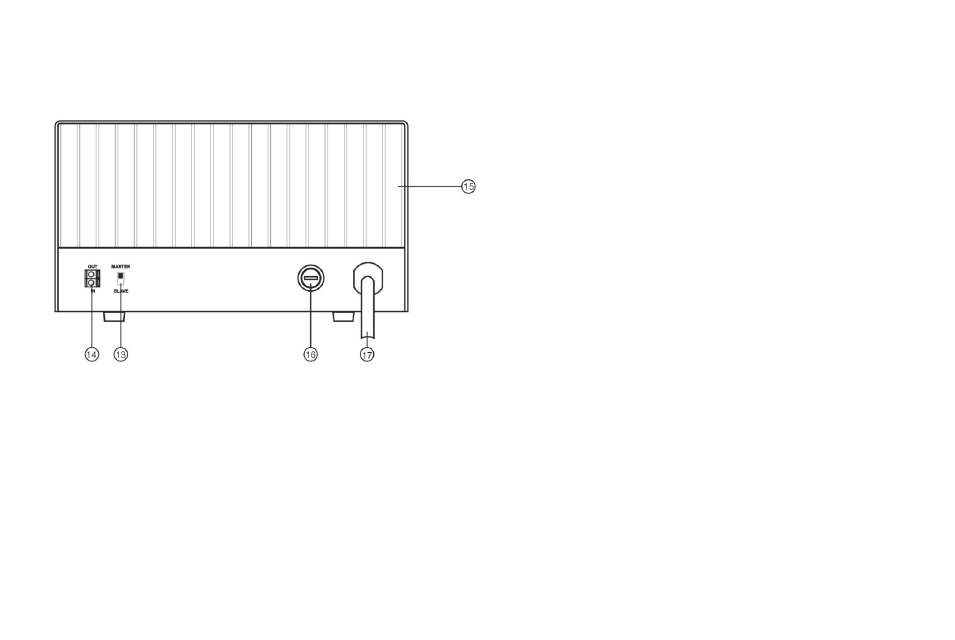

5.2 REAR



















13. Master / Slave switch

Used during “master / slave control” parallel operation in
MASTER / SLAVE configuration. For normal operation,
switch should be set to MASTER.


14. In / out terminals for Master / Slave operation

Control terminals for use in the “MASTER / SLAVE control”
parallel operation mode.


15. Heat sink

Heat sink for the power supply. Be careful as this area can
become quite hot during operation.


16. Main Fuse

17. Power cable
