UNLOCKING YOUR SCANNER

To protect the scanning unit from damage during

transportation, a lock switch is designed at the back of the

scanner to keep the scanning unit from moving. To unlock

the scanner, move the lock switch up as shown in Fig. 2-1.

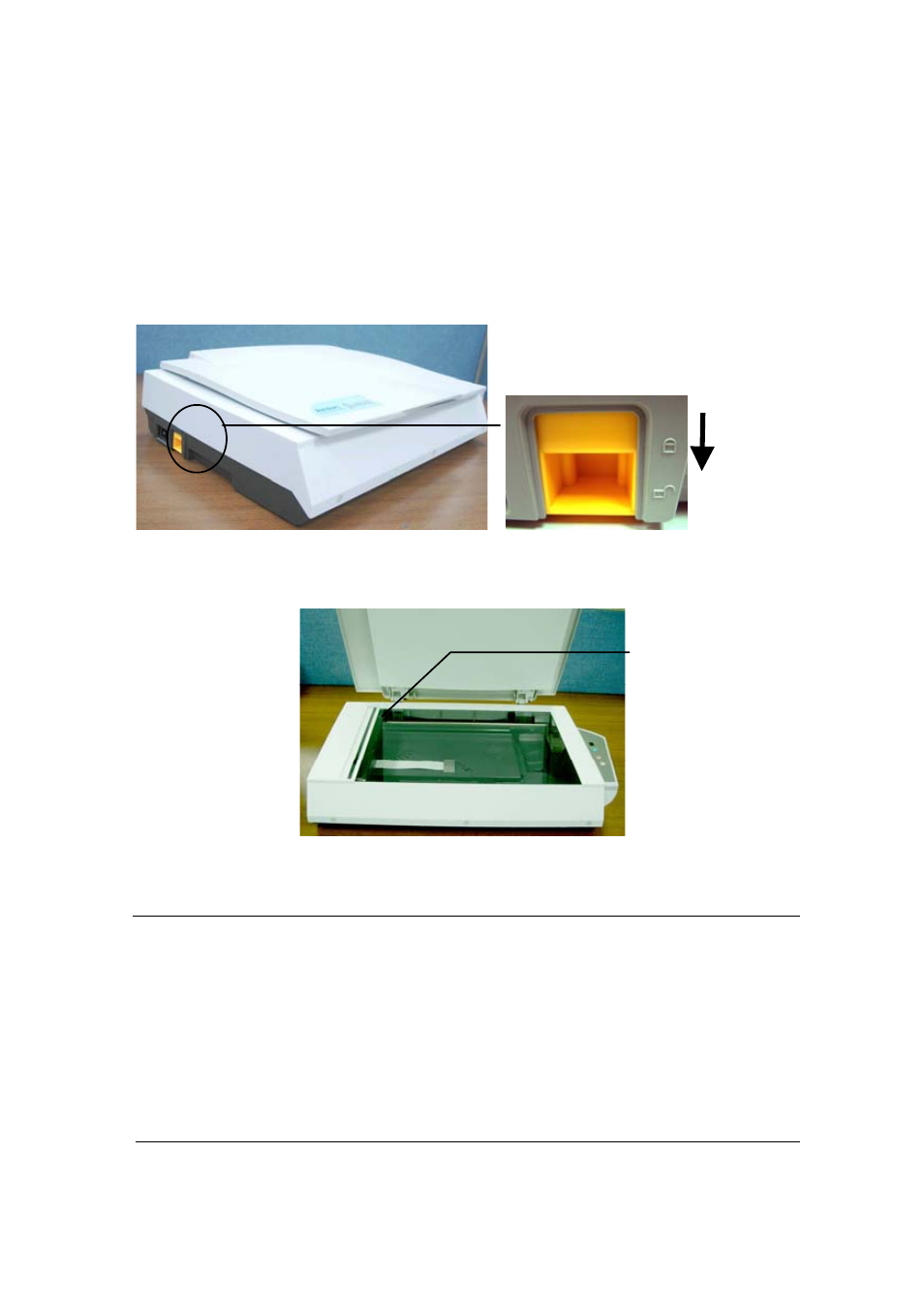

Figure 2-1 Unlocking the Scanner

Figure 2-2 Home position

Note: If the scanning unit is not located at the front of the

scanner before transporting the scanner, be sure to do the

follows:

1. Turn on the scanner.

2. The scanning unit should move to the front of the

scanner.

3. Press the lock switch down to the “Lock position”.

4. The scanner is now ready to transport.

Unlocked

Locked

Scanning unit at this
position before
locking the scanner
