2.4 Tool Components and Ports

The MaxiVideo

TM

MV208 comes with the following items:

Note: Because of continuing improvements, actual product may

differ slightly from photo.

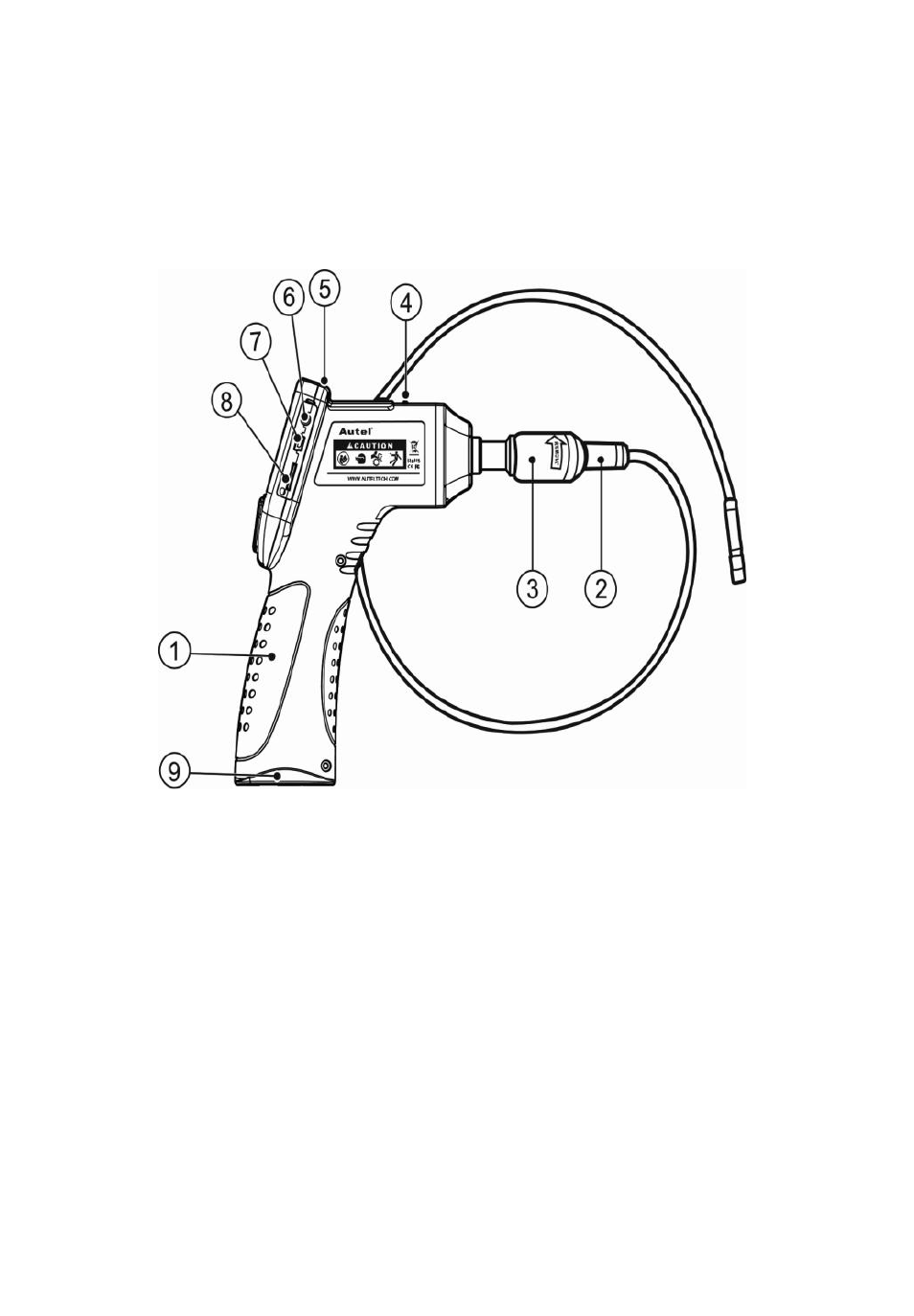

Fig. 1

1)

Handheld Display Unit

The ergonomic tool with

comfortable pistol grip design.

2)

Imager Head and Cable

Connects to the tool while in use to

view images and videos.

3) Cable Connector

Connects the handheld display unit to

the

imager head and cable.

4) Power Indicator Light

Illuminates green once the tool is

powered on.

5) Power Button

Turns on/off the tool.

6) Video-out Port

Connects the tool to a TV with the supplied
