De f g, Ca b – atwood Single and Dual Mount Motorized Jack System User Manual
Page 5

5
Low Battery indicator lights indicates voltage drop
below 9.5 volts. Charge battery or connect trailer
to tow vehicle. Turn system off then back on to
clear low battery. If system "times out" and shuts
off automatically, just turning it back on will clear
low battery indicator.
ON light
indicates
the system
is activated
LOW BATTERY
EXTEND
RETRACT
ON
OFF
Push once for ON
Push and hold for
1/2 second for OFF
Push and
hold for
extend
Push and
hold for
retract

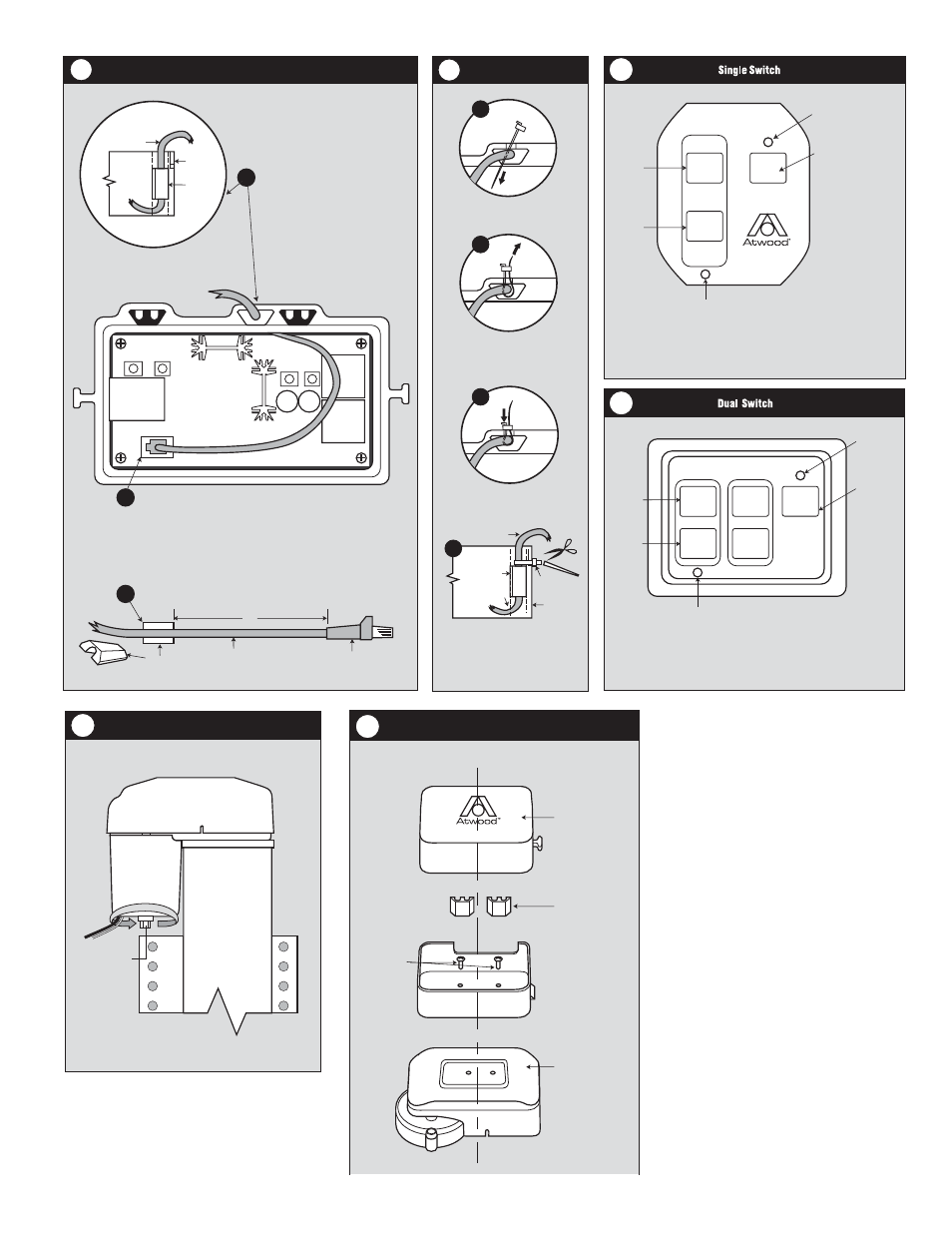

Pass the special tie wrap through
the hole in the cover as shown.
Loop the special wire tie around the
switch cable and pass it back through
the same box hole and through the
head of the wire tie.
Pull the loop tight and move the
wire tie head against the box.
Cut the excess wire tie off near
to the wire tie head as shown.
The purpose of the wire tie is
to trap the strain relief in place.
Switch Cable
Control
Box
Special
Wire Tie
Trim
Excess
Strain
Relief
Switch Cable
Plug End
D
E
F
G
Connect modular plug on the end of the
switch cable into the modular socket on the
control board. The plug will "snap" in place.
Strain Relief
8"
INPUT
RED
RED
JACK
Switch Cable
Switch
Cable
Hole
in Box
Strain
Relief
Molded Plug
+
+
–
–
Loop the cable as shown in the box
and push the strain relief into the
dovetail slot. Push it down so the
top of the strain relief is 1/2" below
the edge of the control box. Make
sure the cable is not pinched anywhere.
The strain relief must be just below the
hole in the box.
Place the strain relief about 8 inches
from the back of the molded plug.
C
A
B
EXTEND
RETRACT
EXTEND
RETRACT
Low Battery indicator lights indicates voltage drop
below 9.5 volts. Charge battery or connect trailer
to tow vehicle. Turn system off then back on to
clear low battery. If system "times out" and shuts
off automatically, just turning it back on will clear
low battery indicator.
LOW BATTERY
ON
OFF
ON light
indicates
the system
is activated
Push once
for ON
Push and
hold for
1/2 second
for OFF
Push and
hold for
extend
Push and
hold for
retract
A
B
Jack Control
Module
Power and
MotorWire
Strain Reliefs
Rain
Cover
Control Box
Mounting
Screws
8
9
10
11
12
13
