HEPA Filter Installation
• Typical for units with top inlet.
• Units with end inlets do not utilize center rod.
7
A M A M E S T E K C O M E S T E K C O M P A N Y P A N Y
® ®
A M A M E S T E K C O M E S T E K C O M P A N Y P A N Y
® ®
ADJUSTMENT ROD
O-RING
GUIDE ROD
EXPANSION PLUG
(DO NOT DISCARD)
FILTER BRACKETS
KNIFE EDGES

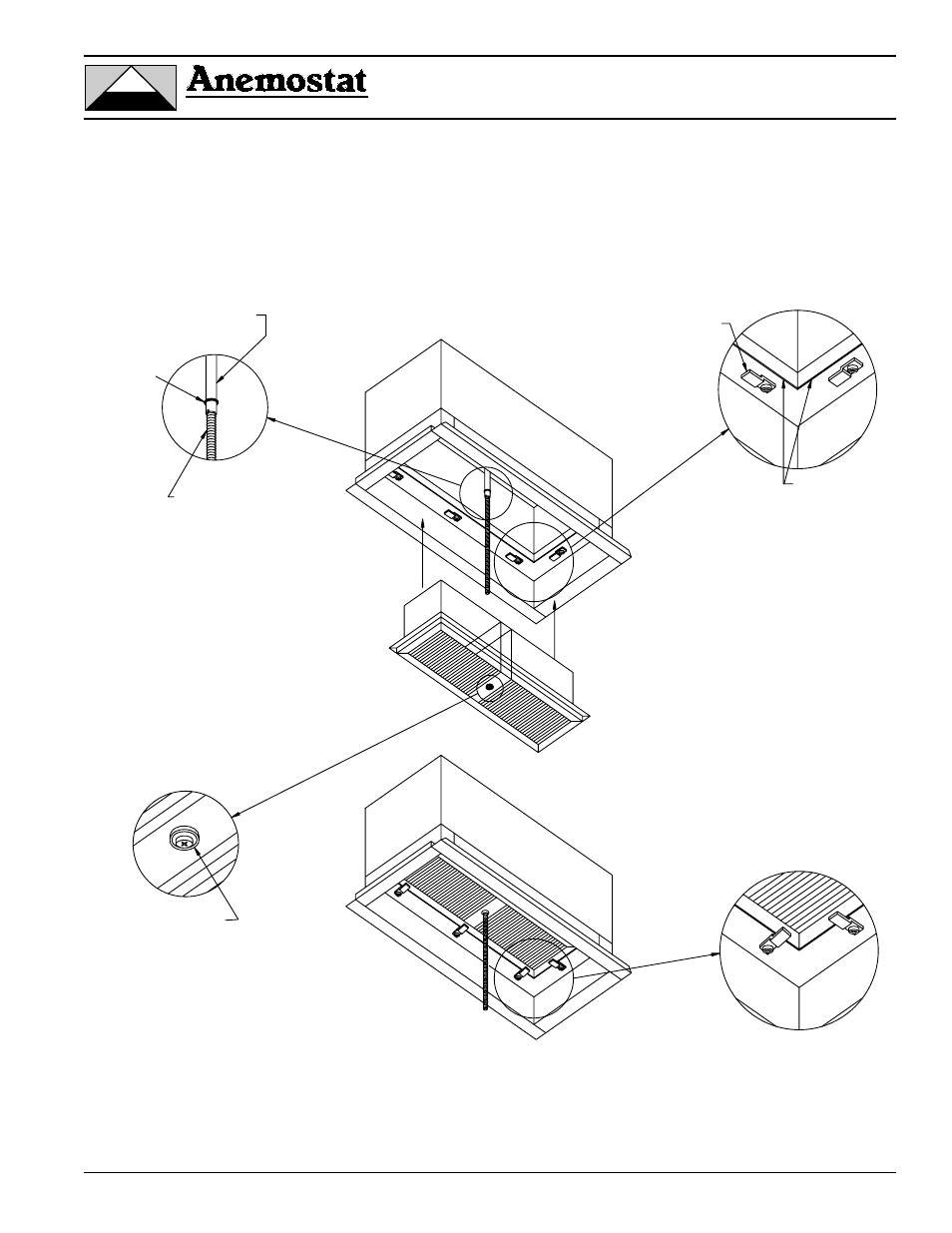

1. Loosen all socket head screws
and rotate brackets as shown.
2. Thread #6-32 x 12" guide rod
into adjustment rod. Don't fully
tighten for ease of removal. When
in place, guide rod will project
about 10" below ceiling.
3. Note hole through filter.
Remove expansion plug from filter.
Lift filter below diffuser, then
position #6-32 guide rod for
insertion through hole in filter
and lift filter to engage knife edges
into seal within channel on filter.
4. Rotate Brackets as shown on
flange of filter. Tighten all socket
head screws. Remove #6-32 x 12"
rod and replace expansion plug.
