Free Flo / Pro Jet Installation Instructions
During Hard Ceiling Installation
5
FFBF/PJBF
DIFFUSER
FRAME MOUNTING
BRACKETS
MOUNTING
SCREW
DRYWALL
DRYWALL
FRAMING MEMBER
FFCM/PJCM DIFFUSER
(NOTE: MOUNTING METHOD
IS SIMILAR TO FFBF/PJBF DIFFUSER)
STRIPS TO ALIGN
CONTINUOUS RUNS

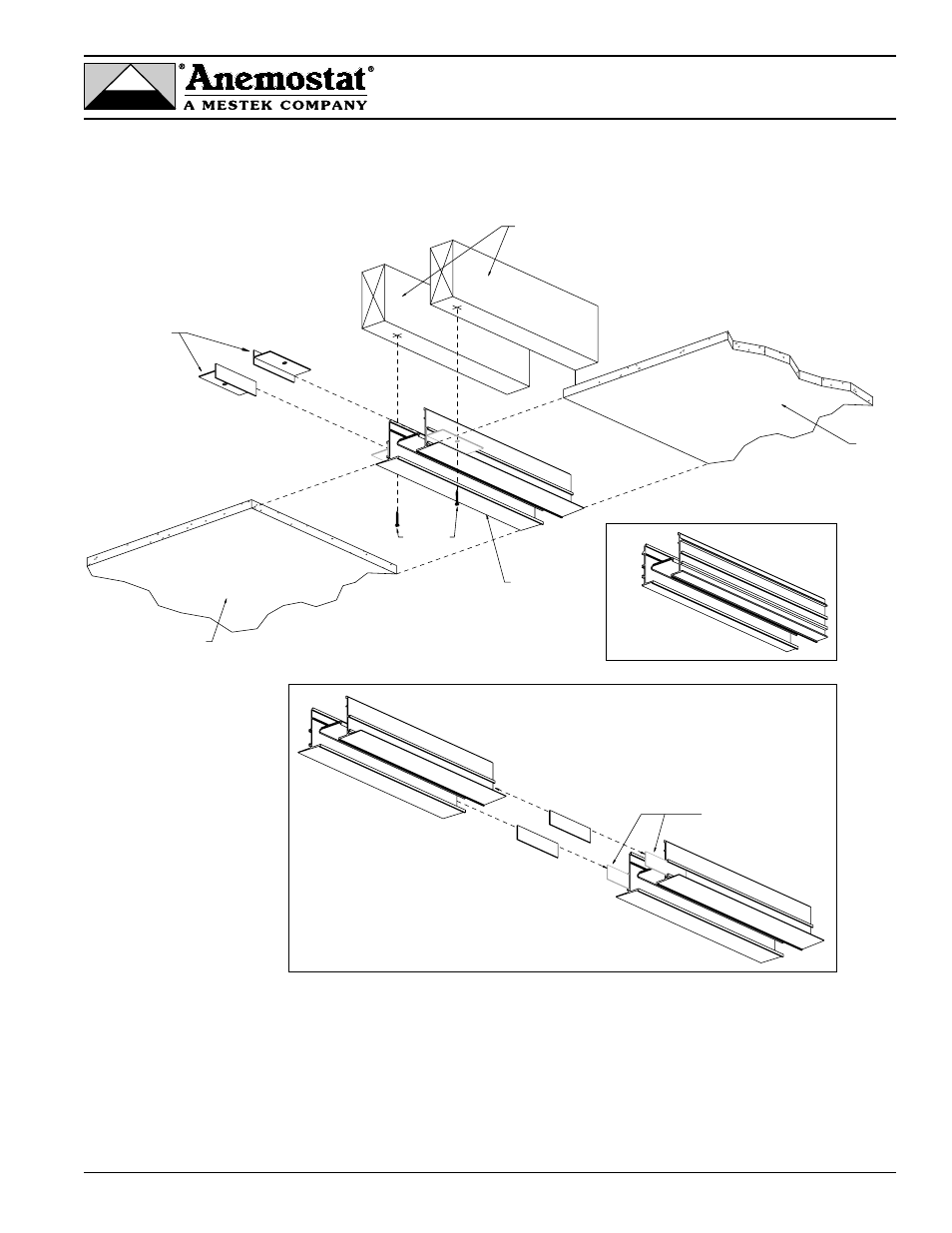

BF/CM Frame Style Installation
• Slide mounting brackets into diffuser outer frame channels. Make sure brackets are appropriately
spaced to evenly distribute diffuser weight (approximately 20" - 24").
• Lift Free Flo/Pro Jet diffuser up to the framing members. Secure into place using mounting screws
appropriate for the framing material. Screws are field supplied.
• Position drywall between diffuser frame mounting brackets and flanged face of diffuser.
• Apply joint compound to face of diffuser and feather to drywall ceiling for a clean, finished look.
(See “Diffuser Face Preparation Notes”, page 4)
Continuous Runs
