BRACKETS & TRAY
LEFT SIDE SHOWN ONLY

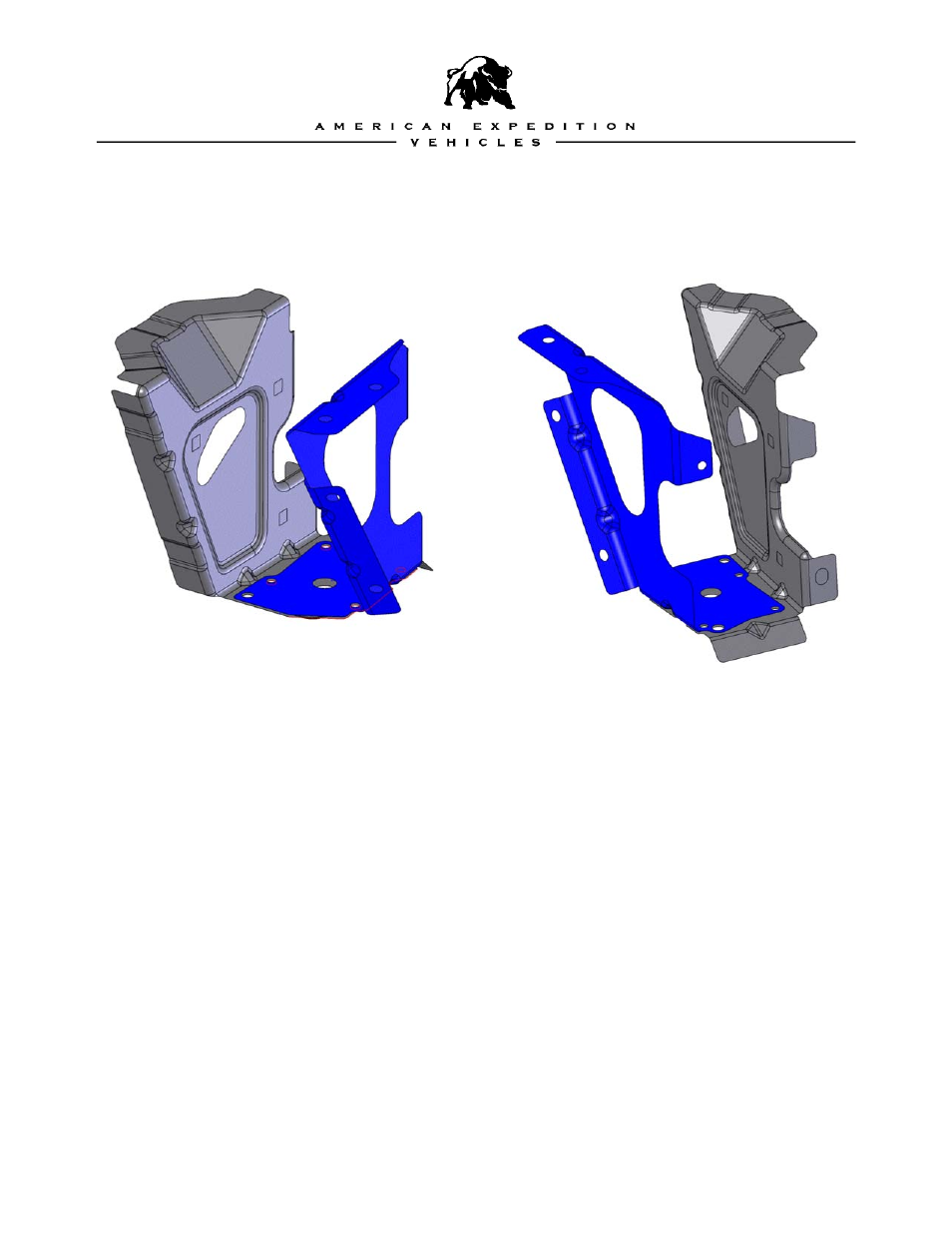

A. MODIFY THE O.E. BRACKET
1. Cut the O.E. bracket as shown, clean and de-burr.
2. Using the AEV supplied bracket, align the holes and either plug weld the new bracket to
the old, or drill and bolt them together using the supplied hardware.
3. Transfer all the speed nuts to the new section of the bracket.
4. Prep and paint both brackets.
5. Loosely reinstall the brackets, do not tighten at this time
