8. Fit the cutting jig to the frame and mark all critical locations. The cutting jig is symmetrical
and designed to be used on both sides of the vehicle to locate the holes that mount the
extension jigs and also to locate the cut line. Start by locating the cutting jig on the frame
using C-clamps. It’s not critical where the jig lies exactly, just that it fits on the frame as best
as possible. Once you are satisfied with the location, FIRMLY clamp it to the frame. Scribe
the cut line on the inside of the frame rail and along the top. Using your transfer punch,

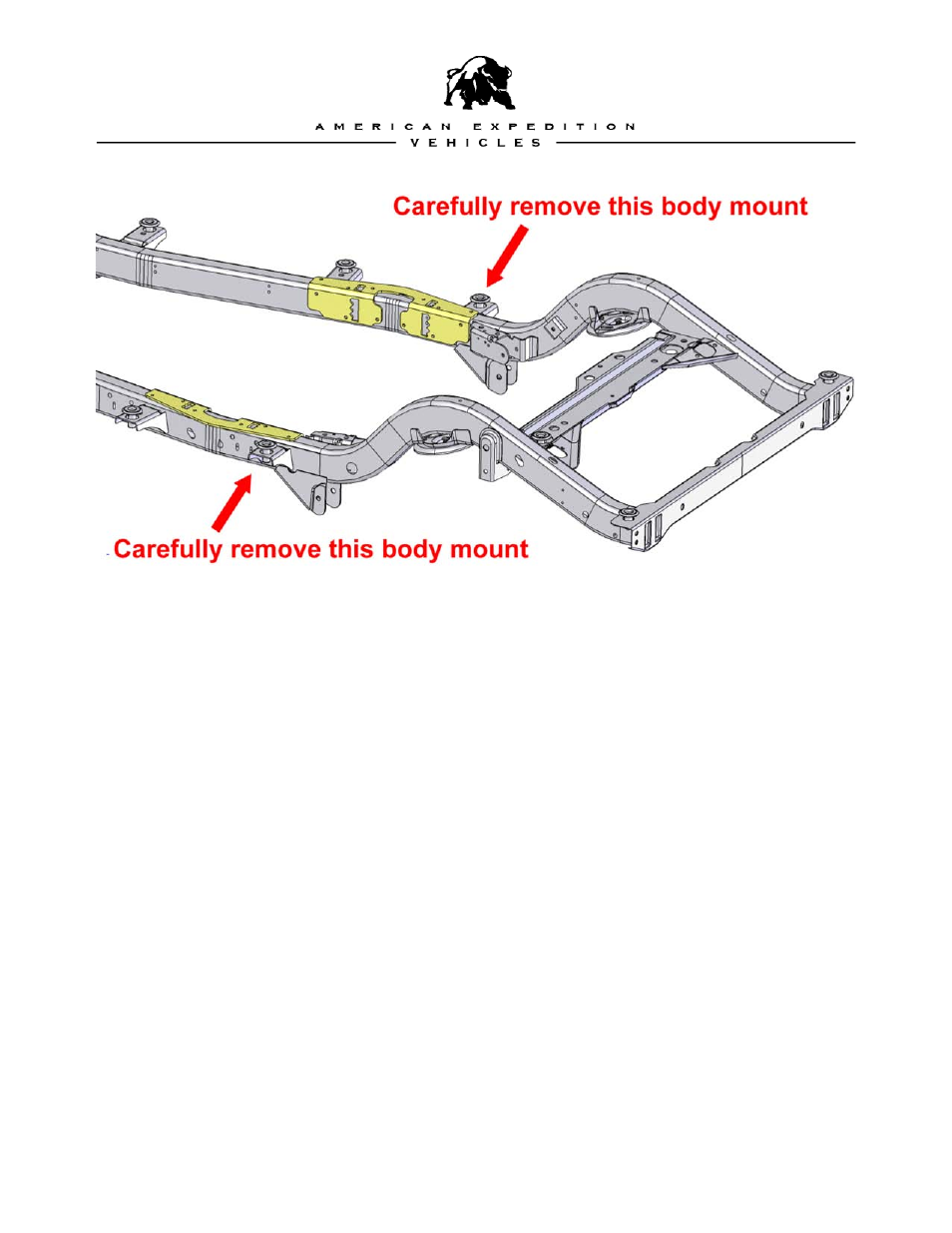

locate the center of the holes shown in the following diagram.
