American Expedition Vehicles JK Geometry Correction Front Control Arm Drop Brackets User Manual
Page 4

2
5. Use the supplied bolts, nuts, and washers to mount the control arms in the new
dropped locations. Use M12 fasteners for the upper control arms and M14 for the
lower control arms (Fig. 2). NOTE: Use Red Loctite on M14 Bolts.
6. NOTE: There are three relocation holes in the brackets for mounting the upper control
arms. For the AEV 2.5” Suspension Kit use the upper hole location, the AEV 3.5” Sus-
pension Kit use the middle hole location, and for the AEV 4.5” Suspension Kit use the
bottom hole as shown (Fig. 3).

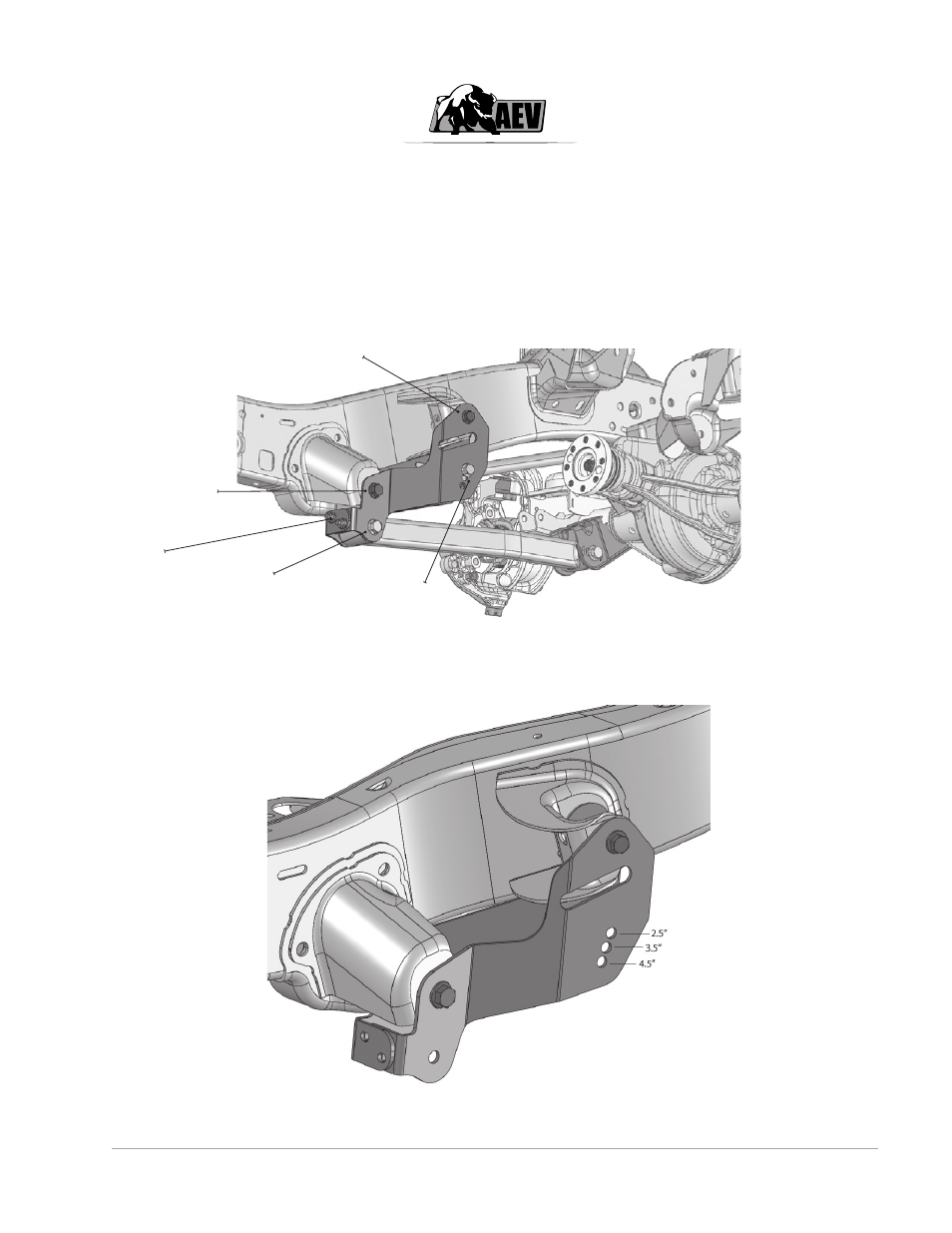

Figure 2
Figure 3
Factory M14
125 ft/lbs
Supplied M14
Bolt and Washer
125 ft/lbs
Supplied 3/8”
25 ft/lbs
Factory M12
75 ft/lbs
Supplied M12
Bolt and Washer
75 ft/lbs
