Alpha Technologies Rear Access Bullet Breaker Panel, 23 - Manual (Page 19)

SIZE DWG NO. TYPE
B
SHEET
T I T L E
ISSUE
DATE OF
TOLERANCES
SCALE
APPROVED
CHECKED
DRAWN
DESIGN MATERIAL
FINISH
FOR MANUFACTURING WITHOUT ITS WRITTEN CONSENT.
ARGUS TECHNOLOGIES AND SHALL NOT BE COPIED OR USED
THESE DESIGNS AND SPECIFICATIONS ARE THE PROPERTY OF
REVISIONS
LTR DESCRIPTION APPD DATE
REV
X.X 0 . 0 4 "
X.XX 0 . 0 2 "
X.XXX 0.01"
[X] 1mm
[X.X] 0 . 5 m m
[X.XX] 0 . 2 5 m m
020-671-08

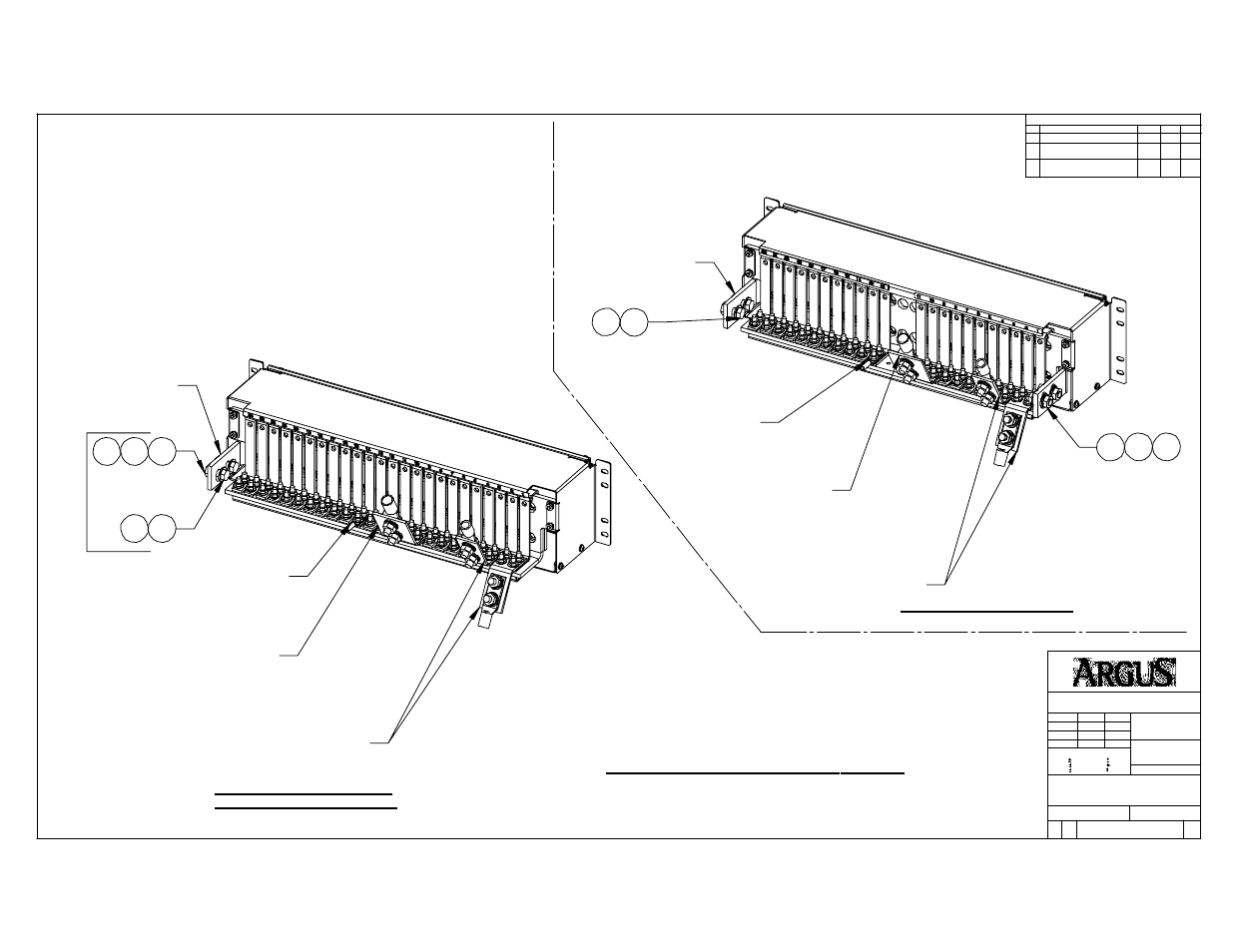

CUSTOMER CONNECTION
23" BULLET BREAKER PNL.
PER P.O. and
Doc. 070-024-83
1 3
DGW
DGW
2 0 0 5 / 0 1
2 0 0 5 / 0 1
D2
c 2005 ARGUS TECHNOLOGIES O
D
DIMENSIONS ARE IN INCHES WITH METRIC (mm) IN BRACKETS: INCHES [mm]
C D D 2 0 0 5 / 0 1
C D D 2 0 0 5 / 0 1
1 : 4
REV BY
2005/01 DGW ADDED PG-3 ALARM CONTACTS B
C
CORRECTED LIST 2 -48VDC JUMPER
SETTING - SEE SHEET 3
SDW 2005/06
CDD
CDD
CORRECTED PINS OF DETAIL 'A'
(TYPICAL ALARM WIRING)
C MP 2006/01
PART OF LIST123/124/125
3 POS'N OUTPUT ADAPTER
3/8" x 1" CTR
613-424-13
FOR UP TO 4/0 WIRE
PART OF LIST121/122
2 POS'N OUTPUT ADAPTER
3/8" x 1" CTR
613-423-13
FOR UP TO 2/0 WIRE
CAN BE MOUNTED EITHER DIRECTION
45 53
53 52 62
2 PL
3/8" x 1" CTR,
FOR BUS BAR OR
WIRE LUG CONNECTION
TYPICAL
1/4" x 5/8" CTRS
18 POS'N
FOR UP TO #2 WIRE
OPTIONAL LIST OPTIONS
(SHOWN WITH LIST 50,80)
PART OF LIST123/124/125
3 POS'N OUTPUT ADAPTER
613-424-13
FITS 3/8" LUG ON 1" CTRS
FOR UP TO 4/0 WIRE
53
45
3/8" x 1" CTR,
FOR BUS BAR OR
WIRE LUG CONNECTION
4 PL
4 PL
SHOWN WITH LIST 50,81
PART OF LIST121/122
2 POS'N OUTPUT ADAPTER
613-423-13
CAN BE MOUNTED EITHER DIRECTION
FITS 3/8" LUG ON 1" CTRS
FOR UP TO 2/0 WIRE
TYPICAL HOOK UP FOR BUS BAR INSTALL
62 52
53
TYPICAL
1/4" x 5/8" CTRS
16 POS'N
FOR UP TO #2 WIRE
