24. Connect one AN-08 90-degree male ORB hose end to the front of each fuel rail. Connect one AN-08
45-degree hose end to the passenger side of the fuel pressure sensor adapter and connect one AN-
08 90-degree hose end to the driver side of the fuel pressure sensor adapter. Plan a route for each of
the two lines between the fuel pressure sensor adapter and the fuel rails, measure the two lengths of
fuel line needed. See section titled Hose and Fitting Assembly for fuel line assembly instructions.
Once the hoses are assembled, ensure there is no debris in the hose and install them.
25. Inspect the OEM fuel supply line o-rings and replace if necessary. Place a light coat of oil on the fuel
supply line o-rings and the supply line adapter fitting to ease installation. Connect the AN-08 tee
adapter fitting to the OEM fuel supply line.
26. Using the remaining AN-08 hose end fittings as a guide, measure the required fuel line lengths
needed and make up the last two required AN-08 fuel supply lines (See section titled Hose and

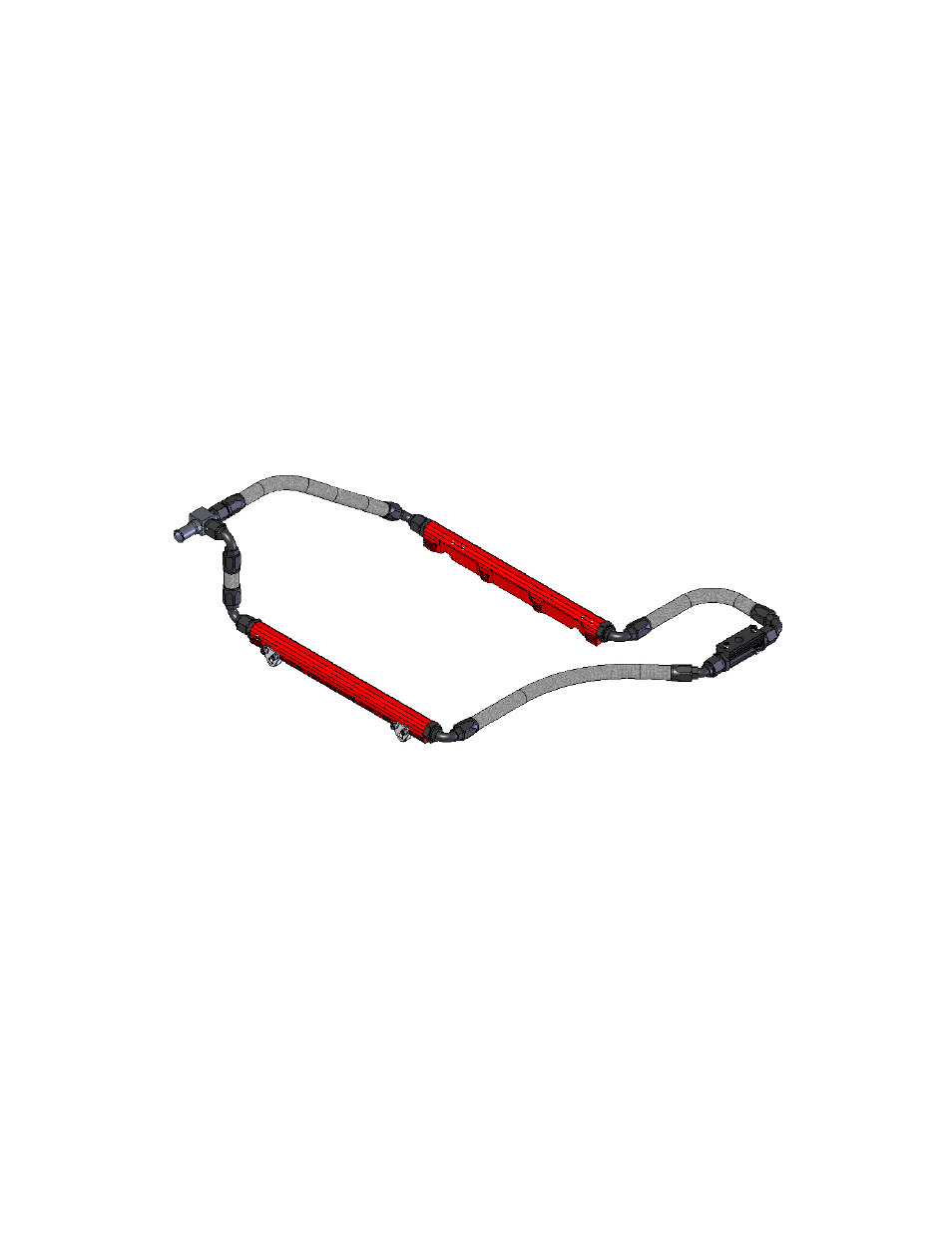

Fitting Assembly). A typical configuration is pictured below.
