Aeromotive 14122 - 98 1_2-04 4.6L DOHC COBRA FUEL RAIL SYSTEM User Manual
Page 3

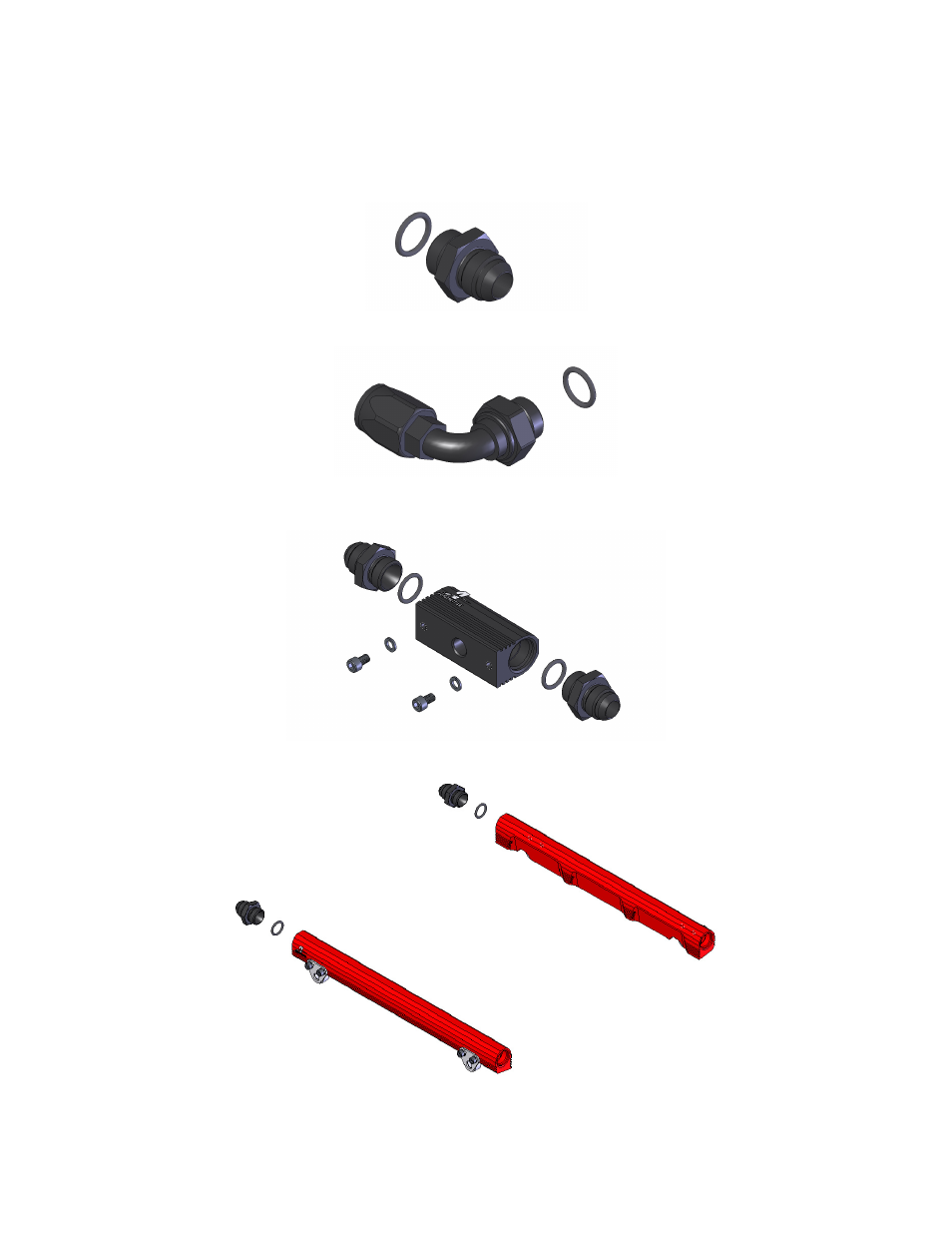

19. Find suitable place in the vehicle’s engine compartment to place the Aeromotive fuel sensor adapter,
typically just in front of the driver side fuel rail.
20. Install one AN-08 o-ring on each of the four AN-8 cutoff tapered flare fittings.
21. Install one AN-08 o-ring on each of the two AN-8 90-degree male ORB hose ends.
22. Thread the side of the AN-8 cutoff tapered fitting with the o-ring into each of the two AN-8 ports on
the fuel pressure sensor adapter.
23. Thread the o-ring side of each two AN-08 cutoff tapered flare fittings in the back of each fuel rail.
