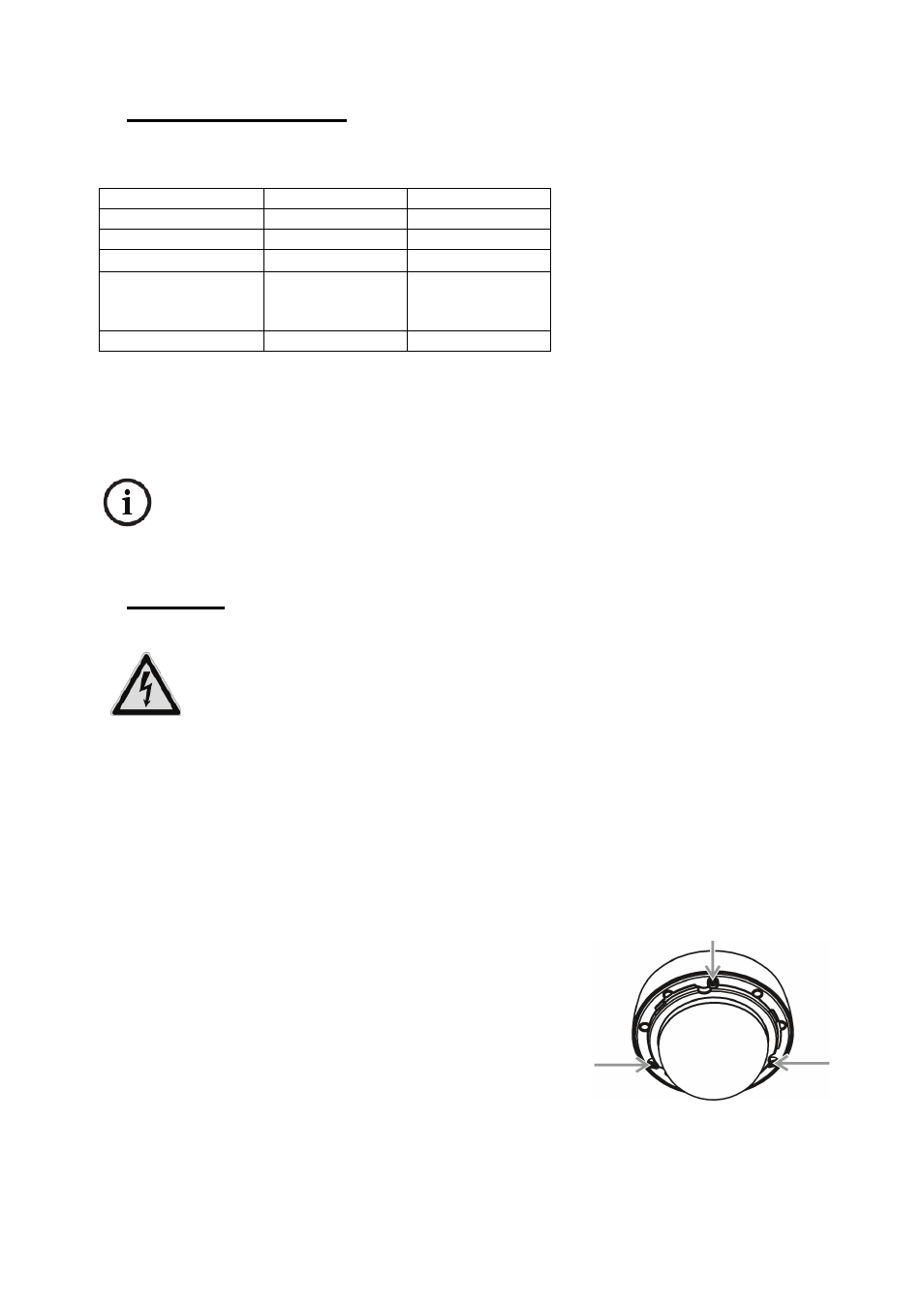

5. Description of device

5.1 Overview – item numbers

Item number

TVCC71000

TVCC71500

Resolution

650 TVL

Lens

2.8~10.5 mm

IR -



Day/Night

(removable IR cut

filter)



Voltage

12 VDC

5.2 Unpacking

While you are unpacking the device please handle it with utmost care.

If you notice any damage of the original packaging, please check at first the device.
If the device shows damages, please contact your local dealer.

6. Mounting

Attention!
Please disconnect the camera from power supply during the installation.

6.1 Cable routing

The cable can be routed to side (visible) or through the bottom side (hidden). To prevent from
wetness a cable gland will be installed on the housing. Please fully screw the cable gland into the
side or bottom opening, the remaining opening will covered by a flat supplied screw.

6.2 Mounting of the camera

Please remove the dome head ring first by anti-clockwise
rotation.

Then unscrew the fixing screws for the dome head and
remove it.
