13
English
1. Intended use
This PoE Splitter receives data and power; which is provided by a injector or a PoE compliant
Switch/Hub, over a standard network cable.
The power is transmitted with 48 VDC by using the unused twisted pair of a category 5 network cables.
Together with the PoE injector (TVAC25000) this splitter can be used for combined power and data
transmission for non PoE compliant ABUS IP cameras.
A detailed description of all functions can be found in chapter „3 Features and functions“.

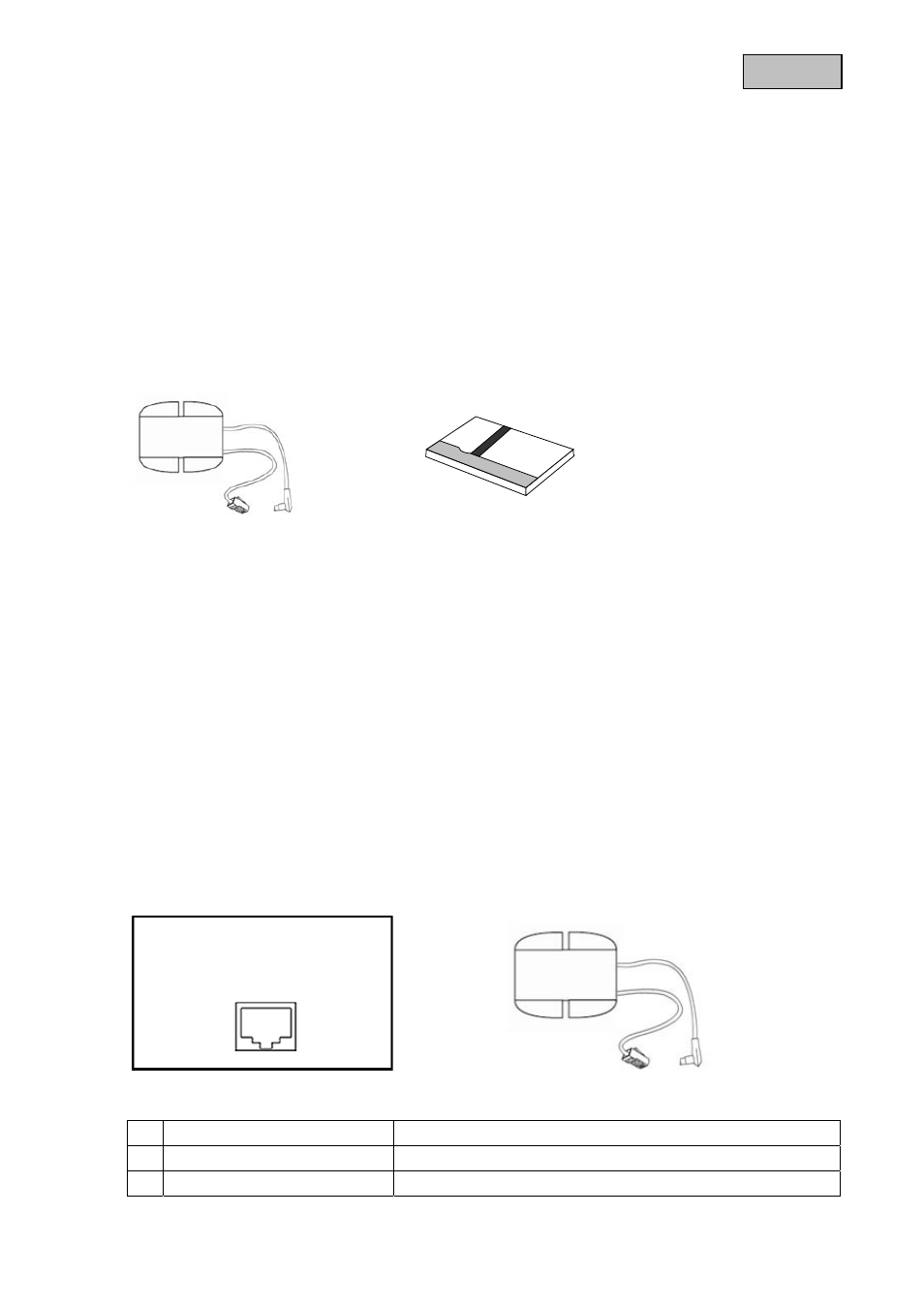

2. Scope of delivery
3. Features and functions
•
In connection with the PoE Injector (TVAC25000) for combined power and data transmission to all 12
VDC ABUS IP-Cameras without PoE
•
Splits the power and data signals of the injector before transmitting to the camera
•
Compatible with all 12 VDC network cameras
•
Compact Housing
•
Plug & Play
•
Compliant with IEEE 802.3af standard
•
Short circuit proof
4. Physical descriptions
c
RJ-45 Input Shielded RJ-45 jack for PoE receiving
d
RJ-45 Output RJ-45 connector for connection to the LAN plug of the camera
e Power supply DC plug for power supply of the camera 12 VDC / 1,0A
PoE Splitter User manual
c
d e
