4. Physical descriptions
Description of the connectors:
Description of the function keys:
c
VGA Output Output of the converted signal into VGA
d
VGA input Recorder or PC signal input
e S-Video input Y/C Video signal input
f
BNC input Composite video signal input (BNC, female, FBAS, 1 Vpp)
g
Power supply 5VDC / 1A
Input Selection of the input signal. At the left top the actual input is
shown.
You can choose between following inputs:
S-Video, VGA and CVBS (BNC)
Menu By pressing this button you enter the menu. If you press the button
several times you can switch between the menu items.
You can do adjust following settings:
Bright=
Brightness
Contrast
Color
Hue
For all menu points you can adjust the value in a range between 0
and 99.
Freeze / + During the normal mode you can freeze the picture by pressing
this button. If you press the button again you can switch to live
view.
In the menu you can increase the value by pressing this button. If
you press it for longer time you can increase the value faster.

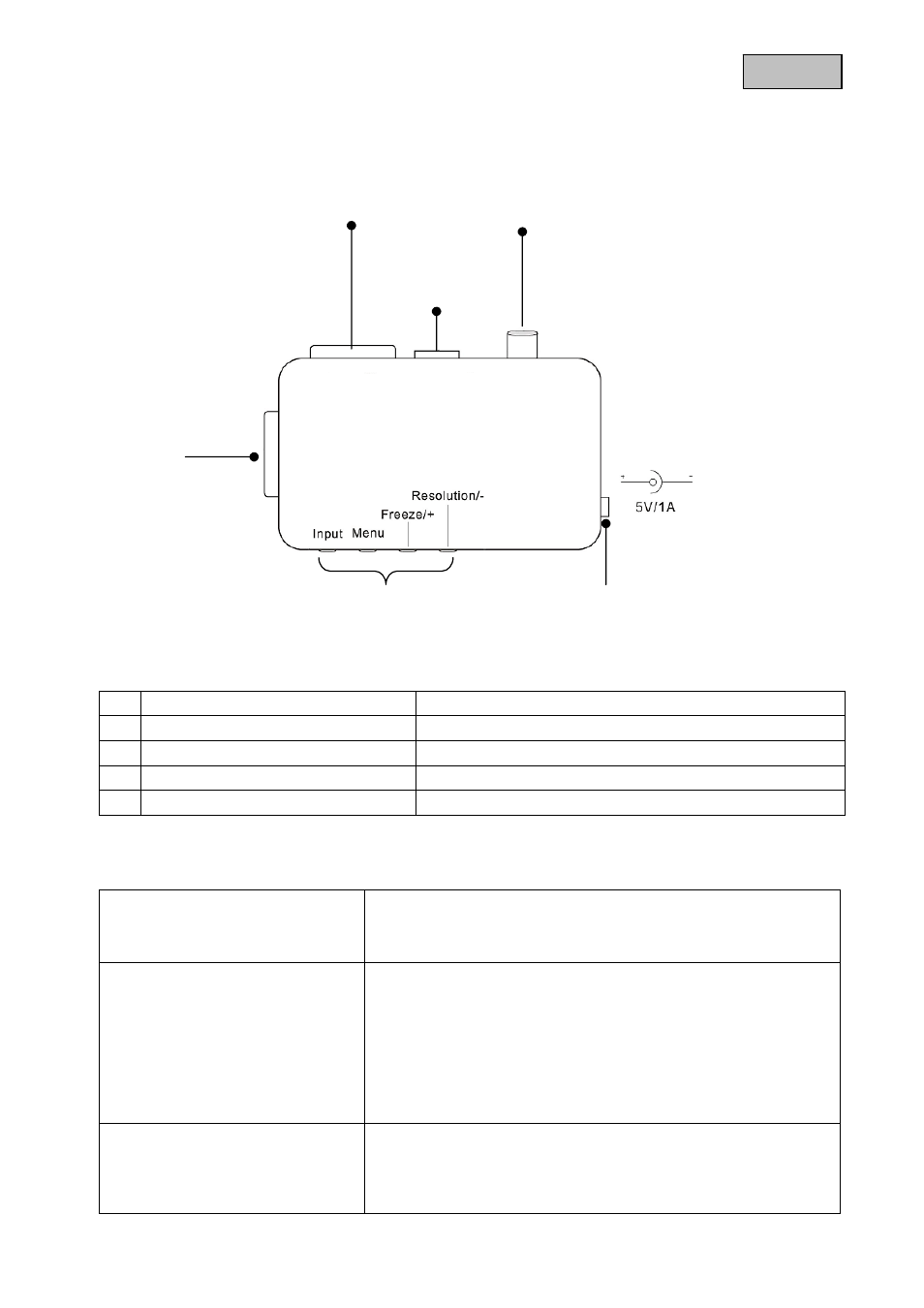

Spannungs-
versorgung
VGA Input for
PC / Recorder
S-Video Input
of recorder or
camera
VGA output
of monitor
Funktionstasten
d e f
g
Power
supply
BNC input of
camera or
recorder
Function keys
c
