14

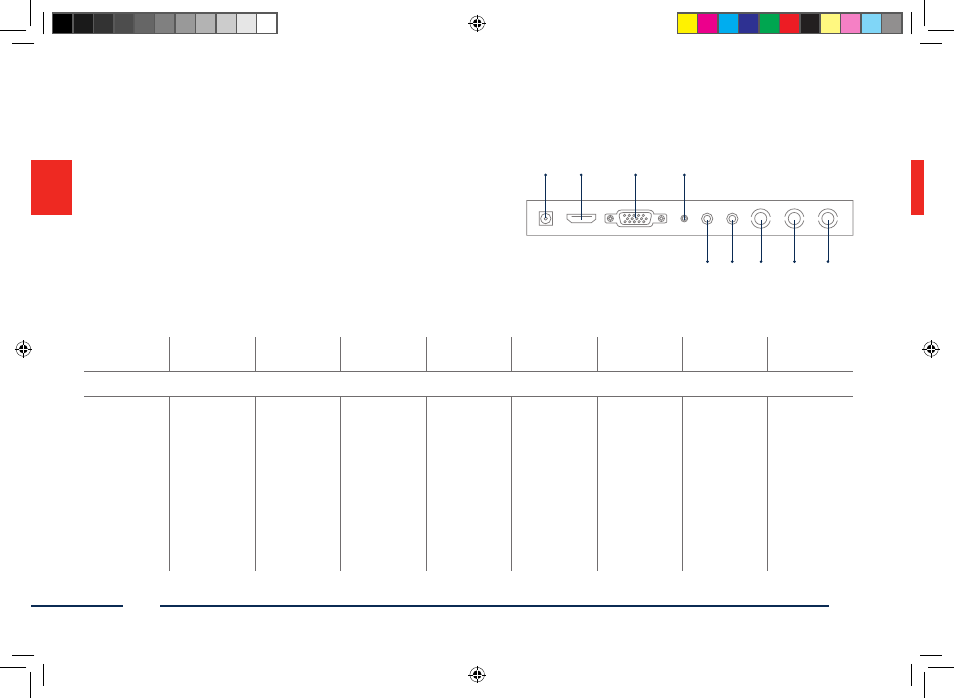

Guide to the connections
3 1 4 2
9 8 7 6 5
1. Power
supply 2. HDMI input 3. VGA input 4. PC audio
input 5. Audio
input R 6. Audio
input L 7. Video
input 1 8. Video
input 2 9. Video
output
DC 12 V / 3 A,
only use the
power supply
unit provided
for operating
the monitor! Port for multi-
media data PC and DVR
signal input 3.5 mm jack,
audio signal
input coupled
with the VGA
input Cinch input R,
audio signal
input coupled
with the
video inputs Cinch input L,
audio signal
input coupled
with the
video inputs. Composite
video signal
input 1 (BNC) Composite
video signal
input 2 (BNC) Looped-
through video
signal output
1 (BNC)
