Signal – AAEON HSB-CV1P User Manual
Page 25
H a l f - S i z e S B C
H S B - C V 1 P
Chapter 2 Quick Installation Guide
2-12

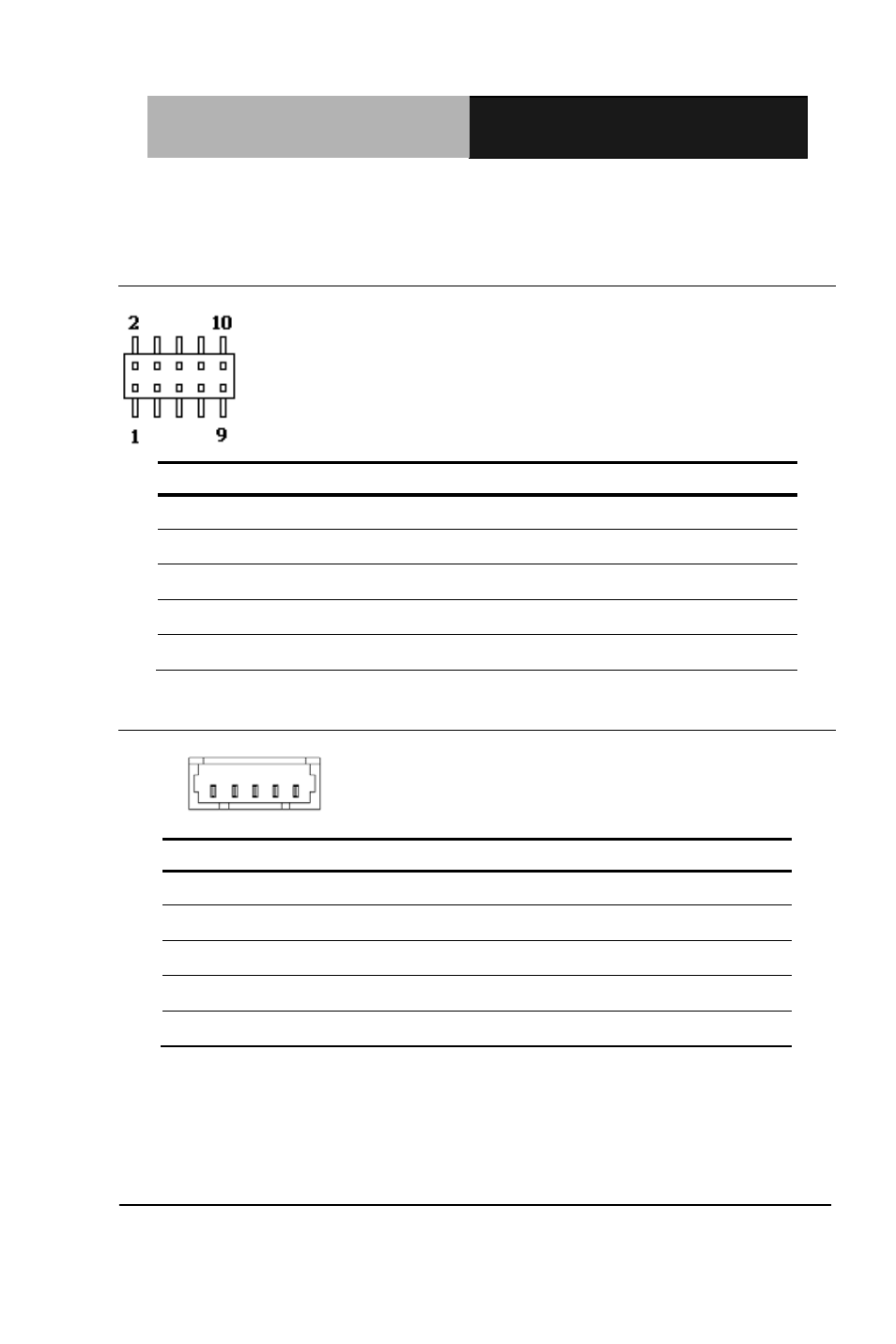

2.21 HD Audio Codec with Realtek ALC888 (Optional) Connector
(CN9)
Pin
Signal
Pin
Signal
1
RST
2
SYNC
3
SDIN
4
SDOUT
5
DET
6
BCLK
7
GND
8
+5V
9
NC
10
+3.3V
2.22 USB Port #7 Connector (CN10)
Pin
Signal
1
+5VSB
2
USB7N
3
USB7P
4
GND
5
GND
