E P I C B o a r d E P I C - C V 0 7
Chapter 2 Quick Installation Guide 2-45
40 GND GND
41 +3.3VSB/+3.3V PWR +3.3V
42 NC
43 GND GND
44 NC
45 NC
46 NC
47 NC
48 +1.5V PWR +1.5V
49 NC
50 GND GND
51 NC
52 +3.3VSB/+3.3V PWR +3.3V
Note 1: Either SATA2 or mSATA,PCI Express for MINICARD2
Note 2: +3.3V by mSATA , +3.3VSB by Mini PCI Express
Note 3: No support USB I/F on MINICARD2

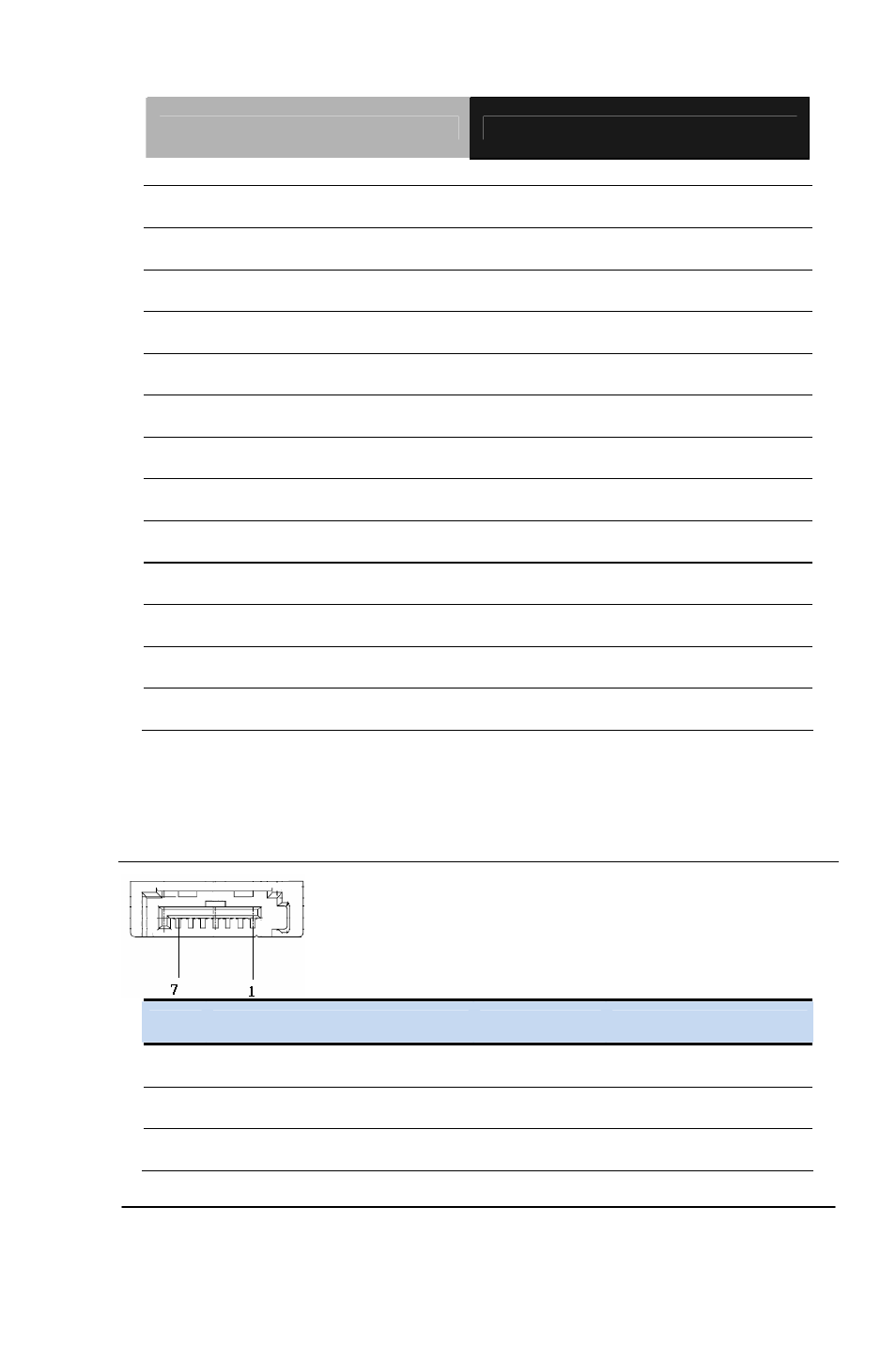

2.52 SATA Connector (SATA1)
Pin Pin Name Signal Type Signal Level
1 GND GND
2 SATA1_TX+ DIFF
3 SATA1_TX- DIFF
