Technical Data

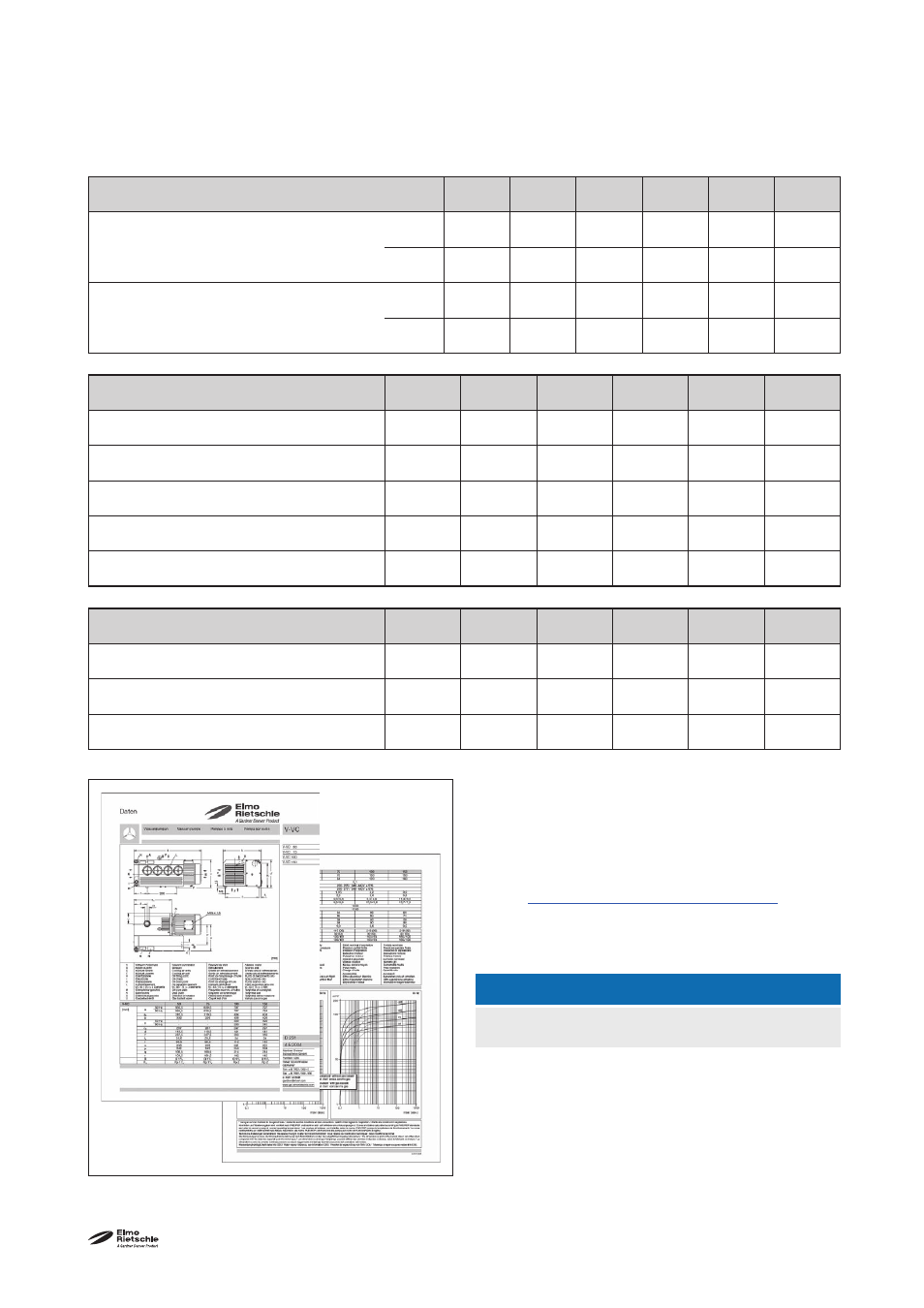

Fig. 11 Data sheet (example)
You will fi nd more technical data on the data sheet
D 280
• Download the PDF fi le
D 280
➝ V-VTN 6 - V-VTN 60
• Download the PDF:
http://www.gd-elmorietschle.com
➝ Downloads
➝ Product Documents
➝ V-Series ➝ Data Sheets
NOTICE
Subject to technical changes.
V-VTN 6 10 15 25 40 60
Sound pressure level (max.)
EN ISO 3744
Tolerance± 3 dB(A)
dB(A)
50 Hz 62 64 65 68 72 75
60 Hz 63 65 66 70 74 77
Weight (max.) kg
3 ~ 16 19,3 26,8 30,7 46,7 47,4
1 ~ 17 20,6 27,2 31,9 47,0 -
V-VTN (01) - (11) 6 10 15 25 40 60
Length mm 370 390 442 473 545 545
Length+ ZRV mm 402 422 476 507 593 593
Width mm 214 214 242 242 274 274
Height mm 208 208 246 246 272 272
Vacuum connection G 3 /
8
G 3 /
8
G 1 /
2
G 1 /
2
G 3 /
4
G 3 /
4
V-VTN 15 (13) 15 (14) 15 (15) 10 (20) 15 (20) 10 (50)
Length mm 427 382 413 339 404 318
Width mm 248 248 248 204 231 204
Height mm 230 215 194 180 195 195
9 Technical Data
