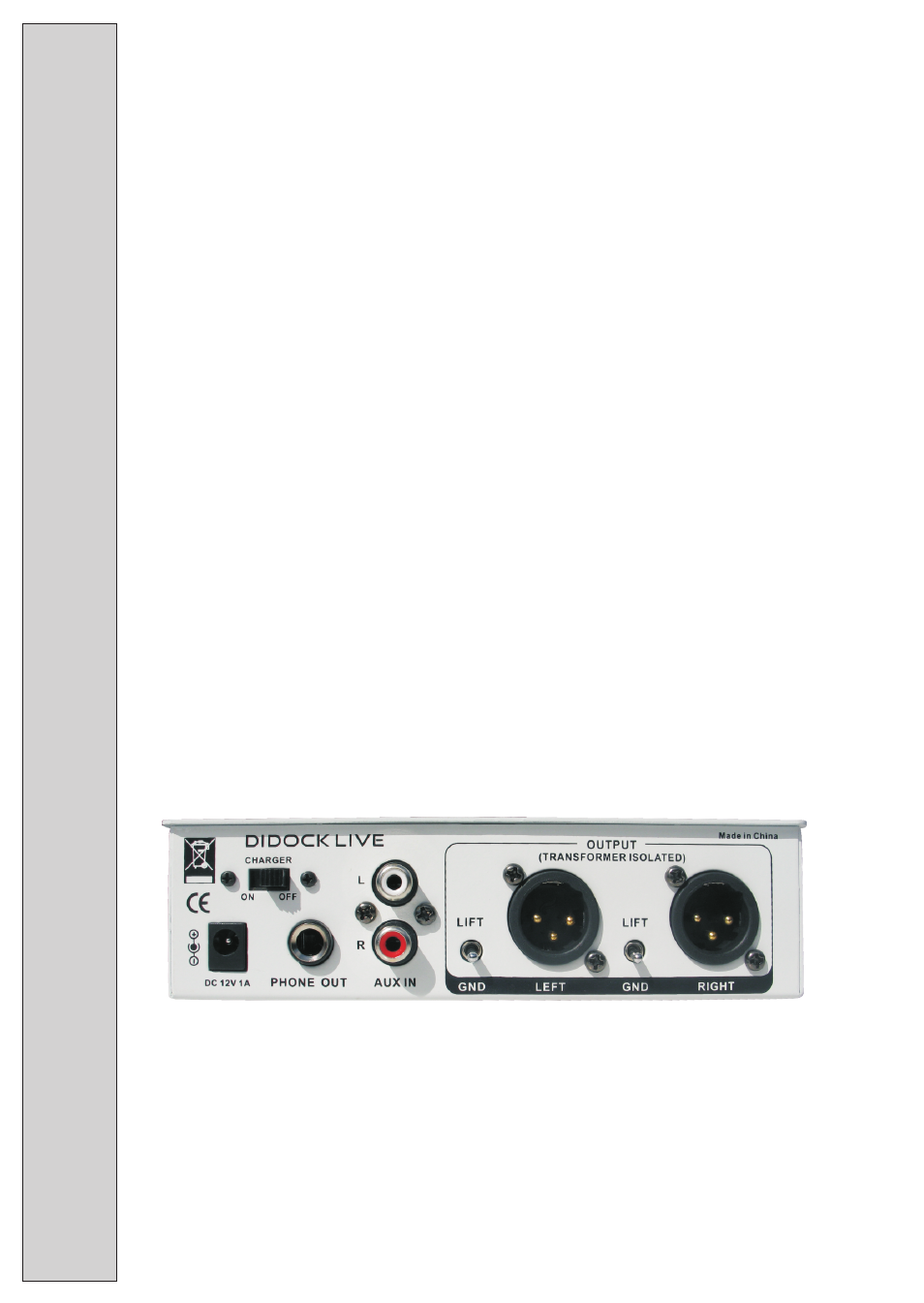

SM di-dock live Back panel
The back panel has all the input and output connectors plus power connector, A
Ground/Earth Link screw and a transformer isolation switch.
5.1 Balanced XLR Outputs
Use this output to connect the DI-DOCK LIVE to external devices such as
mixers.
5.2 Headphone Output 1/4”, 6.5mm Jack
Use this output connector to connect headphones to the DI-DOCK LIVE
5.3 Recharge Switch
Use this switch to select if the DI-DOCK LIVE recharges the connected device
(iPod etc), note that when using Phantom power the device cannot be re-
charged and the headphone amp will not work.
5.4 Transformer Isolation Ground/Earth switch
Use this switch to either use an internal transformer for isolating the output
signal from other equipment or do connect the output signal directly.
5.5 Power connection
Use this input for a 12v DC 1amp center positive connection.
5.6 AUX input
Use this connect to mix into the headphones external audio sources.
For example if you had a drum module you are playing on or an output from a
mixer.
