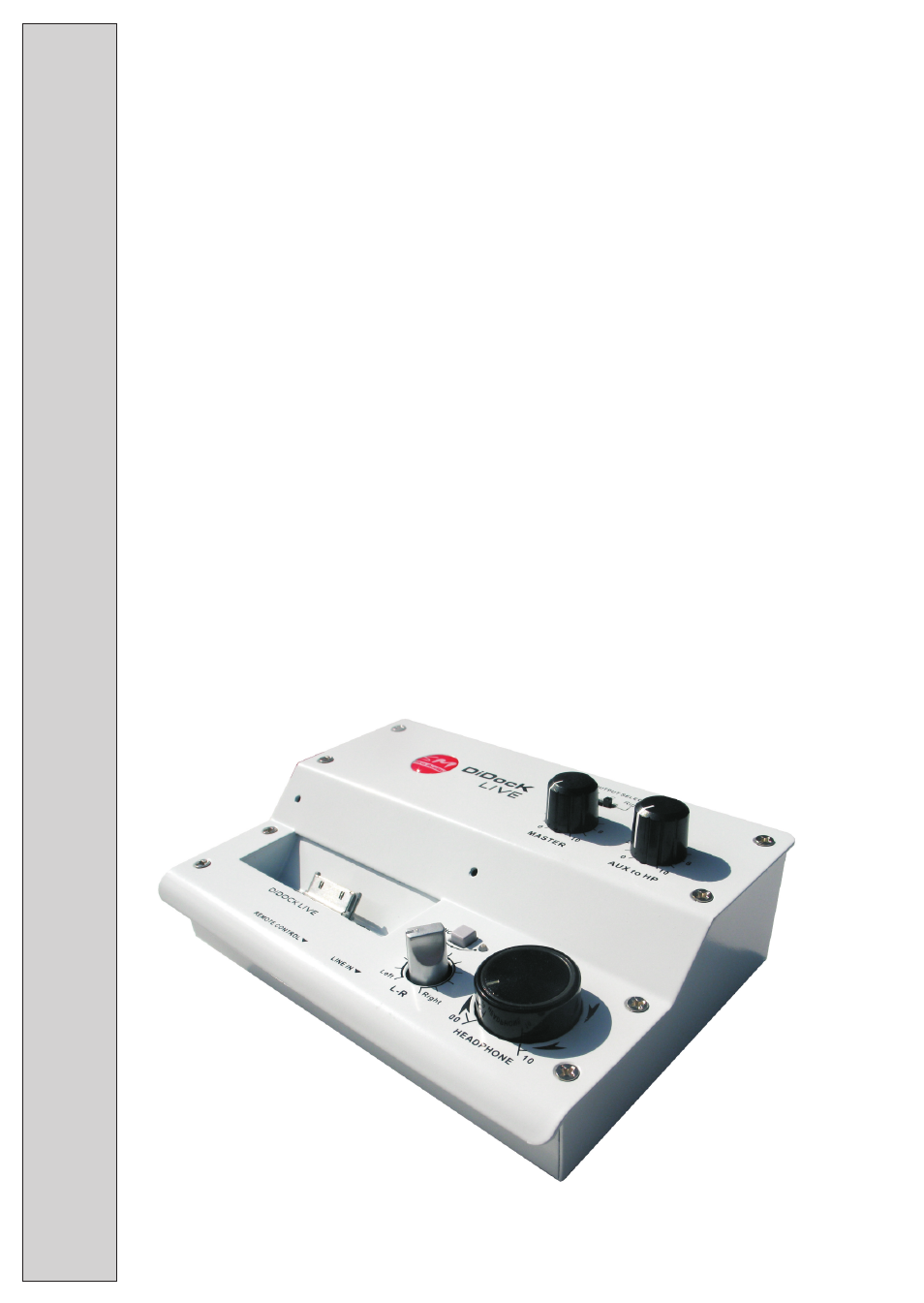

SM DI-DOCK LIVE TOP and FRONT panel
The panel has 2 controls and 2 connectors
4.1 Master Volume
Use this control to adjust the master level output (XLR OUTPUT)
4.2 Headphone Volume
Use this control to adjust the output level for the headphones (1/8” connector
On the back side)
4.3 Docking Connector
This is the connector where compatible iPod and iPhones as well as other
devices using the same type of connection are connected.
4.4 Front Panel Mp3 or LINE Input
Use this connector for pluging in other devices which do not have a docking
connector.
4.5 Output Selector Switch
Use this switch to select which of the channels are being sent to the MASTER
XLR outputs. You can select from LEFT, RIGHT, or BOTH. If LEFT is selected
for example both XLR outputs will have only the LEFT audio channel present on
them.
4.6 AUX to HP
Adjust the input level from the 2 RCA inputs on the back of DI DOCK LIVE to the
headphone output.
4.7 Headphone output Select Switch
This switch enables you to select if you will hear the audio in stereo or mono.
4.8 Headphone MIX knob.
Use this control to either PAN the audio signal or mix between LEFT and RIGHT
audio level when in MONO mode.
