ProTeam ProGuard Front Mount Squeegee - Manual (Page 5)

ProTeam Front Mount Squeegee 5
ASSEMBLY
Mou
Brac
Bo t
ock ut

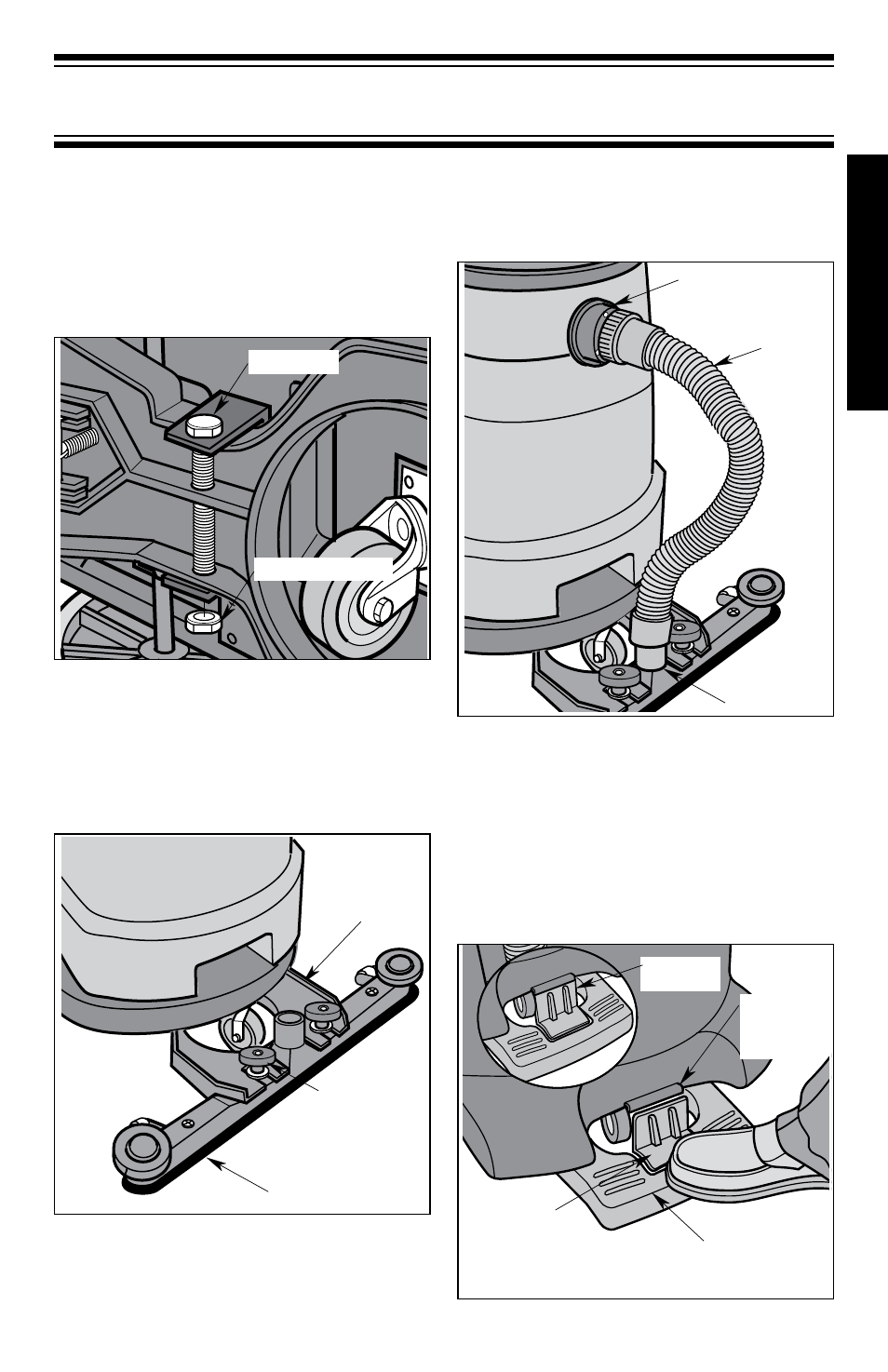

Figure G
10. Lift up on the front of the pivot
plate and slide the 3/8” bolt through
the mounting bracket and pivot plate
holes (Figure G).
11. Secure the bolt with the supplied
3/8” lock nut.
Squeegee
Oval Hand
Knobs (2)
Front
Fork
Figure H
12. Turn cart upright onto its wheels.
13. Mount squeegee in the front fork as
shown in Figure H. Tighten using the
two oval hand knobs.
Tank Inlet
Squeegee
Inlet
Hose
Figure I
14. Thread the hose onto the tank
inlet, then place hose end onto the
squeegee inlet (Figure I).
Pedal
Lock
Squeegee
Release
Pedal
LOCKED
POSITION
Pedal
Latch
Plate
Figure J
15. Press down lightly on the center
pedal lock at back of cart to lower
the squeegee onto the floor.
16. To raise squeegee, press down on
either side of the plate until pedal
locks under the pedal latch plate
(Figure J).
