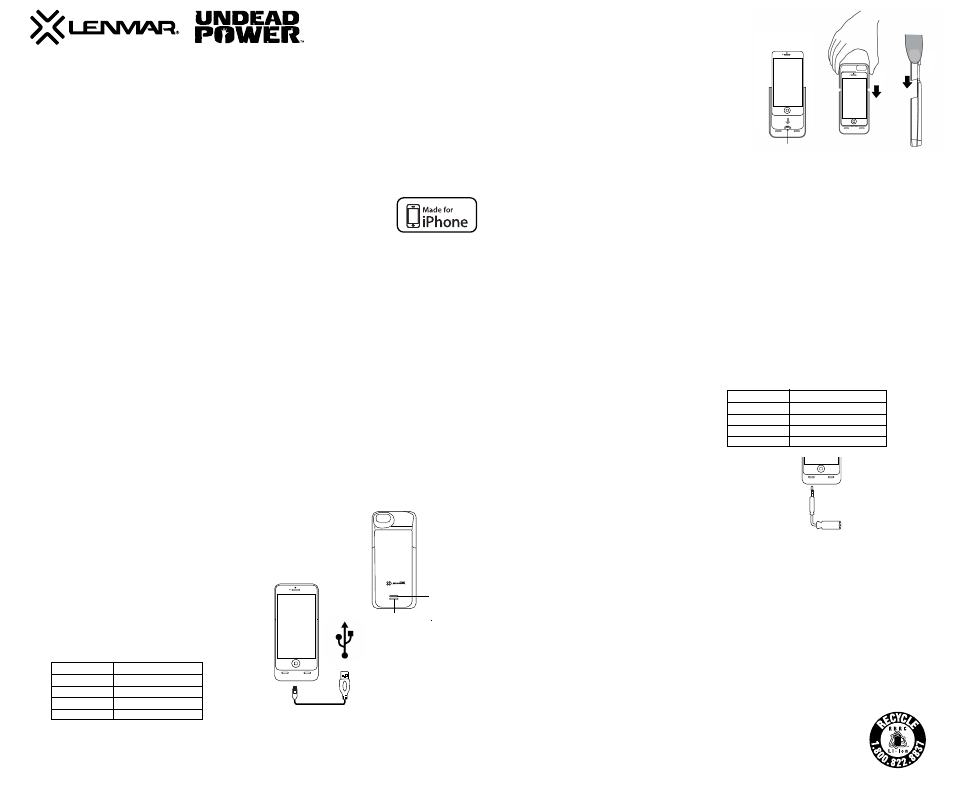

Lenmar BC5 - Manual

LIGHTNING
CONNECTOR
ON/OFF BUTTON
LED
STATUS
INDICATOR
USB
EXTENSION CABLE
HEADPHONE PLUG
Models: BC5/R/W/G
MERIDIAN - iPhone 5/5S Power Case
PLEASE READ THIS INFORMATION THOROUGHLY BEFORE USING THIS PRODUCT. IT CONTAINS IMPORTANT OPERATING
INSTRUCTIONS FOR YOUR UNIT. FAILURE TO HEED THESE WARNINGS MAY RESULT IN AN UNDEAD UPRISING.
TO THE UNDEAD
Thank you for purchasing the Lenmar Meridian iPhone 5/5s Power Case. You’re free now; no longer tethered to
your desk by a power cable; no longer powerless; no longer vulnerable to battery drain. With the Lenmar Meridian
in tow, you and your iPhone 5/5s are primed to roam a world littered with dead and dying mobile phones, their
owners frantically scrambling for any outlet in a storm. Loved ones, co-workers, perfect strangers, all undone by
short battery life and even shorter power cables. But not you! You have the Meridian, and with it, the power to
move; the power to survive; the power to thrive. Congratulations! You're UNDEAD!
The Meridian is MFI certified and meets all Apple performance and quality standards.
Pass through sync capabilities: Sync iPhone 5/5s to iTunes without removing the power case
Lenmar Meridian iPhone 5/5s Battery Case, Micro USB Charging Cable, & Pass-through Headphone Extension Cable
The Meridian will automatically turn off once it
has 5% battery remaining
To check the remaining capacity of the
Meridian, quickly depress the power button.
Slide your iPhone 5/5s into the bottom piece of the case until it
clicks into place. Be sure to line up the iPhone 5/5s charging port
with the Meridian lightning connector.
NOTE: If it is hard to slide your iPhone 5/5s into the Meridian,
STOP. This means your iPhone 5/5s is not lined up correctly with
the lightning connector inside the Meridian.
Align the cover piece of the case with the grooves on the sides
of the bottom piece of the case and slide down until it fits firmly.
WHAT’S INCLUDED
Before installing your iPhone 5/5s into the Meridian make sure screen protectors have been removed from
the back side of the iPhone 5/5s.
INSTALLING YOUR IPHONE 5/5s INTO THE MERIDIAN
Carefully remove the top cover by pressing down on the sides of the top piece and pulling the top away from
the bottom of the case.
Once the top piece is removed, slide your iPhone 5/5s up and out of the Meridian. The easiest way to do this is
by pressing down with your thumbs on your iPhone 5/5s close to the home button. With your thumbs, press
down and out, away from the Meridian.
If you have difficulty removing your iPhone 5/5s from the Meridian, do NOT insert anything into the headphone
jack. Doing so may damage your iPhone 5/5s and the Meridian.
REMOVING YOUR IPHONE 5/5s FROM
THE MERIDIAN
CHARGING YOUR iPHONE 5/5s
Your iPhone 5/5s will begin charging once it is installed into the Meridian.
If you would like to save the Meridian battery for later in the day, hold down the power button on the back of
the Meridian for 3 seconds.
To charge your iPhone 5/5s, depress the power button for 3 seconds. To verify that your iPhone 5/5s is charging,
look for the lightning bolt charging indicator on the top right of your iPhone 5/5s. The battery icon will light up
green or red, depending on the battery level of your iPhone 5/5s.
When Charging the Meridian with the iPhone 5/5s installed, the iPhone 5/5s battery will charge fully, then the
Meridian will begin to charge.
POWER BUTTON
To turn the Meridian ON depress the button on the back of the case for 3 seconds,
the LEDs will light up and your iPhone 5/5s will indicate that it is charging.
To turn the Meridian OFF depress the button for 3 seconds, the LEDs will turn off
and your iPhone 5/5s will no longer be charging.
HOW TO GO FROM DEAD TO UNDEAD
UNDEAD RULES
Rule1. Remove any screen protectors on the back side of your iPhone 5/5s before installing it into your Meridian.
Rule 7. Charge the Meridian fully prior to initial use.
Rule 9. For maximum battery life, disconnect the battery once it is fully charged.
Rule 5. Do not disassemble. Do not attempt to open the Meridian’s casing; there are no user serviceable parts.
This will void the warranty.
Rule11. Do not submerge. Keep the Meridian dry at all times. If the Meridian gets wet while in use, immediately
remove your iPhone 5/5s from the Meridian and turn the Meridian off. Do not attempt to use the device again
until you have verified that it is completely dry and in working order.
Rule 3. Keep the Meridian away from flammable and heat-sensitive materials, fumes, gasses, brimstone, and
nuclear waste.
Rule 8. Do not store the Meridian at temperatures above 60°C (140°F) or below -20°C (-4°F) or in locations where
the Relative Humidity exceeds 90%.
Rule 2. Avoid placing the Meridian in direct sunlight for prolonged period of time. Do not place battery in fire or
other excessively hot environments.
Rule12. Recycle or dispose of the Power Case properly. If disposed of in fire or short circuited, the Power Case
may leak or explode, causing personal injury.
Proposition 65 Notice (California)
The following statement is required in the state of California pursuant to the settlement of an action brought
by the Mateel Environmental Justice Foundation against multiple electronics and appliance manufacturers.
LIMITED 1 YEAR WARRANTY
Lenmar product is warranted to be free of defective parts and workmanship for stated period from the original date of purchase when
sold through our website or our authorized retailers. Warranties are not transferable. The warranty excludes damage resulting from
accident, misuse, modification, delay or loss of use, damage to equipment or by normal wear and tear.
ALL WARRANTY CLAIMS ARE PROCESSED ONLINE AT THE FOLLOWING LINK: WWW.LENMAR.COM/WARRANTY
USING THE HEADPHONE EXTENSION CABLE
The pass-through headphone extension cable may be used with any
headphone plug. To use the extension cable, plug the end of your
headphone cable into the extension cable. Then, plug in the other end of
your extension cable into the headphone jack of the Meridian case.
Lenmar was founded in California in 1965. In the ensuing decades the company has been responsible for bringing millions of consumer
electronics back from the dead. Our products are designed locally and consumed globally, with headquarters in North America, Europe,
and Asia. In an increasingly connected world, where thousands of mobile phone, tablet, camera, and laptop batteries die every second,
keep your favorite electronics UNDEAD with Lenmar.
For questions, comments, and to explore Lenmar's Undead Power solutions, please visit our website at
www.lenmar.com or call customer service at 800-424-2703 from 8AM to 5PM PST.
• WARNING: Handling the cord on this product will expose you to lead, a chemical known to the
state of California to cause birth defects or other reproductive harm. Wash hands after handling.
314-017-33-0114 r2 y1
Lithium-Polymer battery must be
recycled or disposed of properly.
Cell type: Lithium-Polymer Battery
Input: DC 5V500mA
Output: DC 5V1A
Capacity: 2300mAh
Compatibility: iPhone 5, iPhone 5s
SPECIFICATIONS
Standby: Up to 359 hours*
Talk Time: 767 minutes
Internet Use: Up to 12.8 hours and on the 3G/4G LTE,
Up to 16 hours on Wi-Fi.
Audio Play: Up to 64 hours*
Video Play: Up to 16 hours*
Dimensions: L140 x W63.2 x T15.8mm
Weight: 65g
*All above times can vary due to device settings, location, and signal strength LED Indicator
Blinking Red
Blinking Blue
Blinking Green
Solid Green
% Battery Charged
0% - 30%
30% - 70%
70% - 95%
100%
LED Indicator
Blinking Red
Blinking Blue
Blinking Green
Solid Green
% Battery Remaining
10% or less
10% - 30%
30% - 70%
70% - 100%
CHARGING THE MERIDIAN
Charge the Meridian using the included Micro USB cable.
Plug the Micro USB Cable into the Micro USB port on the
bottom of the Meridian. Plug the USB end into your
computer’s USB port, a USB wall adapter, a USB car adapter,
or an external battery pack.
iPhone 5 and iPhone 5s are Apple registered trademarks.
