Lenmar LAC120 - Manual

Model LAC120
Laptop Power Adapter
For Laptop Computers
Important Safety Instructions are included.
Please read the entire manual before use.
Owner’s Manual
Thank you for purchasing the LAC120 Laptop Power Adapter. The LAC120 provides regulated DC 15
to 24 volt output, which is adjustable by preset increments. The LAC120 will also accept input voltages
ranging from 100 to 240VAC, allowing for worldwide use. The unit will support laptops requiring peak
power up to 120W, in addition to providing two convenient USB power ports for charging your cell
phone, PDA, MP3 player or any other device that can be charged from a standard USB port. The
package includes the power unit, AC power cord and nine adapter plugs to fit most popular laptop
computers.
OPERATING INSTRUCTIONS
Do not use the adapter to power a device that exceeds 120W maximum power rating. Make sure the
adapter is disconnected from the AC outlet and the laptop before making any adjustments to the
voltage settings. Make sure you have selected the proper voltage setting and the correct connector
before connecting to your laptop.

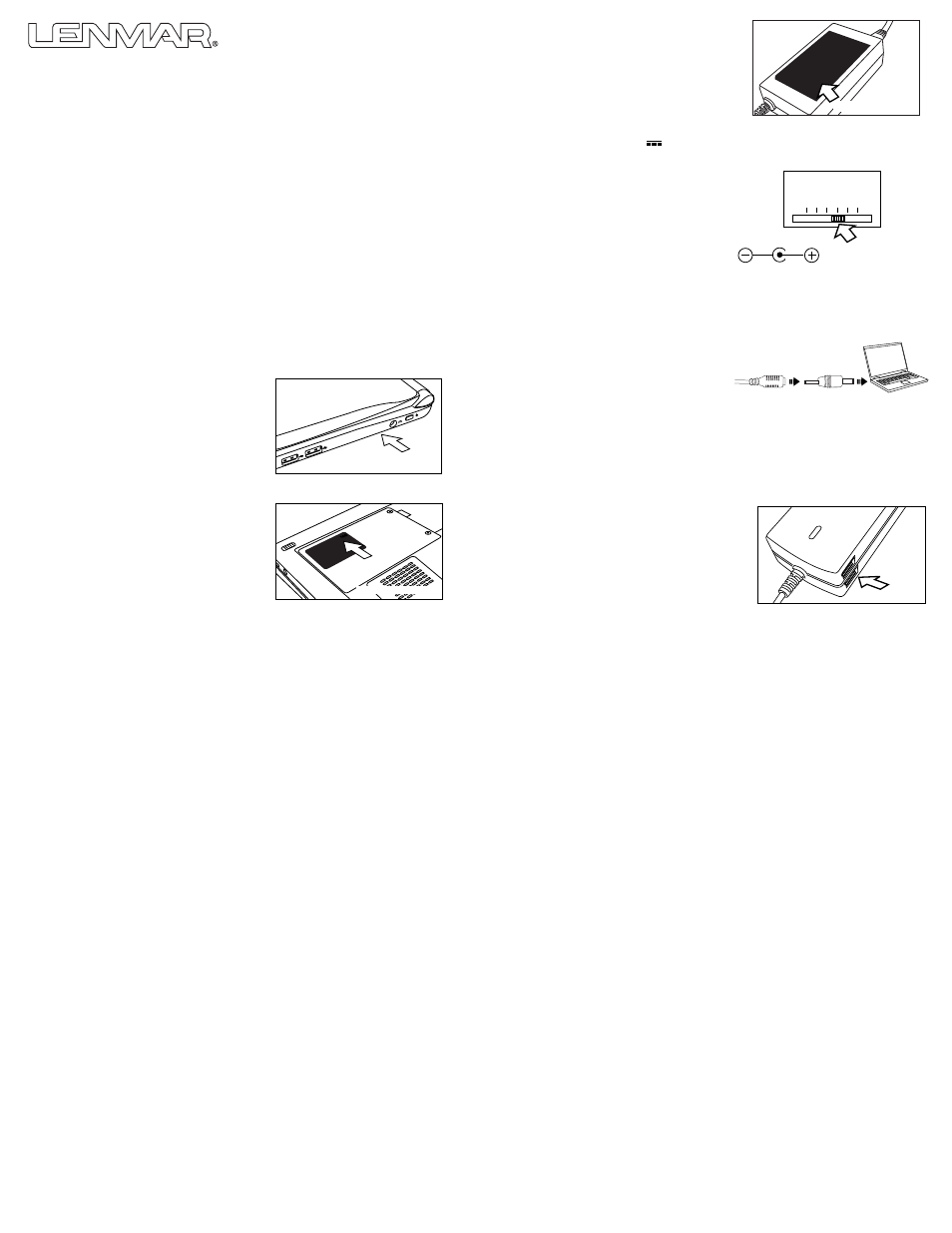

ADJUSTING THE OUTPUT VOLTAGE
Follow these steps to adjust the output voltage on the LAC120.
Determine the required voltage setting and polarity of
the power adapter by one of the following 3 methods.
1.) The voltage indication marked next to the
input jack on the laptop device to be powered.
Example: VIN: = 18VDC or 18V DC
NOTE: The specific notation “VDC” might not be indicated, Instead the following international
symbol shown might be used 18 .
In some cases you may determine the desired voltage is between whole numbers such as 15.5VDC.
In this case use the next higher voltage setting (16VDC)
Adjusting the Output Voltage
To adjust the output voltages just slide
the selector switch to the required voltage.
Polarity
Look for this symbol in any of the three locations
mentioned above that looks like the following:
Use the diagram shown above to verify that you laptop uses “center positive” polarity as most all
laptops use “center positive” polarity. Do not use the LAC120 if your laptop shows “center negative”
polarity.
Do not force the tip in, it should slide in as easily as your original did. If it does not fit easily please
verify you have the correct tip listed in our reference. Connect the selected adapter tip to the end of
the LAC120.
Plug the LAC120 into the laptop, then plug the AC power cord into the AC jack on the adapter and
then into a standard AC outlet. The Blue LED power indicator will light showing the LAC120 is
functioning correctly.
TROUBLESHOOTING
Some laptop computers have power supplies in excess of this power adapter (120 Watts).In
most cases, the higher rating is used to both charge a completely discharged battery and
power the laptop at the same time. This power adapter can be used for such applications, but
it is recommended that the computers battery be fully recharged before using the adapter to
operate the laptop.
NOTE: This power adapter can power, but may not be able to charge battery for some Dell ® models.
If the indicator turns off while the power adapter is in use, this indicates that the power
requirement of the device is beyond the maximum output of the LAC120 and that
overload/short circuit protection has been activated.
NOTE: It is normal for the LAC120 to be warm during use.
Notice
• Keep the LAC120 dry, if it gets wet wipe it dry immediately.
• Use and store it in normal temperature environments.
• Handle the LAC120 carefully, do not drop it.
• Do not use the LAC120 if the cords become damaged.
Keep the LAC120 away from dust and dirt; wipe it with a cloth occasionally to keep it clean.
There are no user serviceable parts inside! Modifying or tampering with its internal
components can cause a malfunction and will invalidate its warranty. If your LAC120 is not
performing as it should during the warranty period, contact Lenmar for warranty service.
SPECIFICATION
Input: AC 100-240V-50/60Hz
Adjustable Output: DC15/16V 6A max ; DC 18/19/ (18.5)V, 5.5A max ; DC 20(19.5) V, 5A max ;
DC24V, 4.2A max
2 x USB Output: 5VDC 1.5A max
Polarity: Center positive
Continuous Output Power: up to 100 W
Peak Output Power: 120W
Meets CEC Standard: Minimum Efficiency>85%
Adapter Power Tips: 9 plugs supplied.
Unit Dimensions and Weight: 350g
AC Extension Cord Length: 1.20 meters (47”)
DC Extension Cord Length: 1.50 meters (59”)
Dimensions: 141 x 55 x 31.5mm
WARRANTY
This limited warranty starts from the date of original purchase and expires 2 years thereafter.
If, during this period, any part, because of manufacturing defects or workmanship fails to
function properly under normal use will be repaired at no charge for parts and labor or, at our
option, the product will be replaced. The following is excluded: damages from delay or loss of
use of equipment, or damaged batteries, malfunctions resulting from misuse, tampering,
unauthorized repairs, modifications, or accident. Package the unit and its accessories carefully
using ample padding material to prevent damage in transit and ship it prepaid and insured to:
LENMAR ENTERPRISES, INC.
4035 VIA PESCADOR
CAMARILLO, CA 93012 USA
When sending in product for service, your package should include evidence of date and place
of purchase. Enclose $10.00 for shipping and handling for addresses in the U.S. and $15.00 in
Canada. For outside the U.S. and Canada, freight will vary depending upon ship-to address.
Proposition 65 Notice (California)
The following statement is required in the state of California pursuant to the settlement of an
action brought by the Mateel Environmental Justice Foundation against multiple electronics
and appliance manufacturers
• WARNING: Handling the cord on this product will expose you to lead, a chemical known to
the state of California to cause birth defects or other reproductive harm.
Wash hands after handling.
For further information contact
Lenmar Enterprises, Inc.
Product Service Department
Phone: (800) 424-2703
E-mail: [email protected]
Visit Our Web Site at: www.lenmar.com
1. 2.
3. 4.
CENTER POSITIVE
310-089-34-0402 r1
POWERED BY
SIDE OF LAPTOP
BOTTOM OF LAPTOP
2.) Review the power ID plate on the bottom of the
laptop to be powered. Look for the word “DC RATING
or INPUT” followed by a number and VDC.
Example: DC RATING: 18VDC or INPUT: 18VDC
3.) Review the power or ID plate on the laptops original
AC / DC power supply usually used to power the device.
Look for the word “DC RATING or OUTPUT” followed
by a number and VDC.
Example: OUTPUT = 18VDC or 18V DC
Adapter Tips
The LAC120 comes with nine adapter tips. Select
the adapter tip that corresponds to your model by
visiting www.lenmar.com/adaptertips. Verify the fit
by plugging it into the power input on your laptop.
It is important that the center contact or pin be the
correct size to insure proper electrical contact.
USB Power Ports
The LAC120 has two built in USB ports
for the convenience of charging your cell
phone, PDA, MP3 player or any other
device that can be charged from a
standard USB port.
VIN: = 18VDC
DC R
ATING:18V
AC ADAPTER LABEL
SWITCH
DC R
ATING:18V
15V 16V 18V 19V 20V 24V
TIP (9x) LAC120
2 x USB O
utput:
5V
. 1.5A
max
LAC120 USB PORT
2x
