Machines fitted with the optional Reverse Drilling
Controller are operated as shown below.
• Power up the drill & energise the magnet as
before
• T O DRILL FORWARDS , press and release the green
button quickly - the green LED will light.
• T
O STOP THE MOTOR
, press and release the
green button.
• T O DRILL IN REVERSE , press and hold the green
button, wait for the beep, then release the button
- the green LED will flash (the pause is to ensure
the motor has stopped), the motor will then start
in reverse.
• T
O STOP THE MOTOR
, press and release the
green button.
The Green LED indicates as follows:-
ON - Drilling forwards
FLASHING - Drill in Reverse
R
EVERSING
O
PTION (mechanical panel only)
• Power up the drill & energise the magnet as
before
• S TART THE MOTOR - press the green button
• T O DRILL IN REVERSE - move the toggle switch to
the centre position, wait for the motor to
stop, then move the toggle switch to ‘Reverse’
and the motor will run in reverse.
R
EVERSING
O
PTION (M
ECHANICAL PANEL
)
• Plug the machine into the power socket.
• To P OWER U P THE M ACHINE /E NERGISE THE
M AGNET , press the red rocker switch Fig. 13
RECHECK the pilot is still centred.
STARTING THE CUT
• ALWAYS lower the safety guard.
• S TART THE MOTOR - press the green button Fig. 14 .
• Proceed with the cut as detailed opposite
• TO STOP THE MOTOR,
PRESS THE RED MOTOR BUTTON .
• At the end of the cut, the slug will be ejected.
Withdraw the cutter from the work piece and stop
the motor. Fig. 15
• T O DISENGAGE THE MAGNET , press the red
rocker switch.

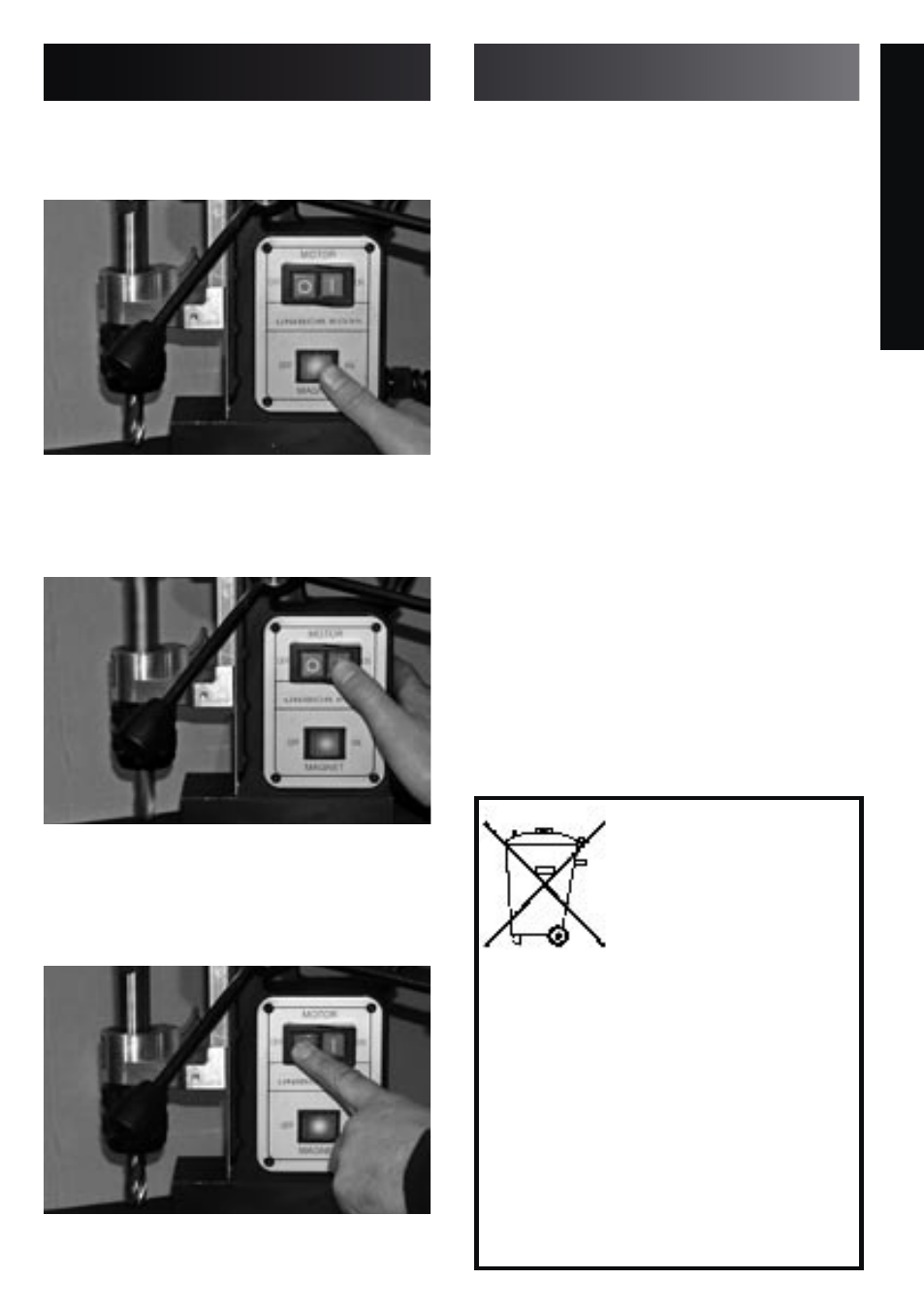

Fig. 13
Fig. 14
Fig. 15
RECYCLING
Do not dispose of
electrical equipment
t o g e t h e r w i t h
household waste
material!
In observance of European Directive 2002/96/
EC on waste electrical and electronic equipment
and its implementation in accordance with
national law, electric equipment that has
reached the end of its life must be collected
separately and returned to an environmentally
compatible recycling facility.
WEEE Compliance Certificate:- on request
All magnetic drilling systems are fully
compliant with ROHS regulations.
